HELLA

DuraLED® Surface Mount Courtesy Lamp

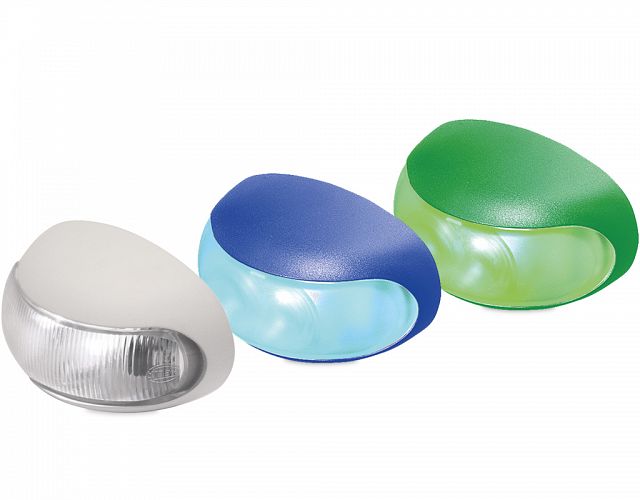

Blue, white or green LED courtesy lamps. Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - White Light

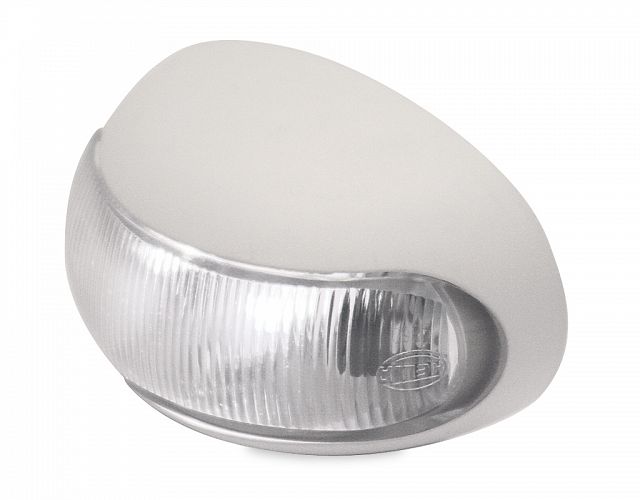

DuraLED® Surface Mount Courtesy Lamp - White Light

95963046
DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Blue Light

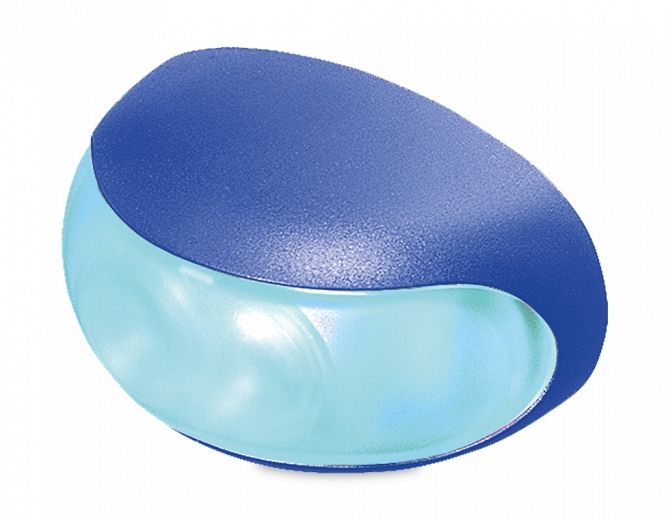

DuraLED® Surface Mount Courtesy Lamp - Blue Light

95963025
DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Green Light

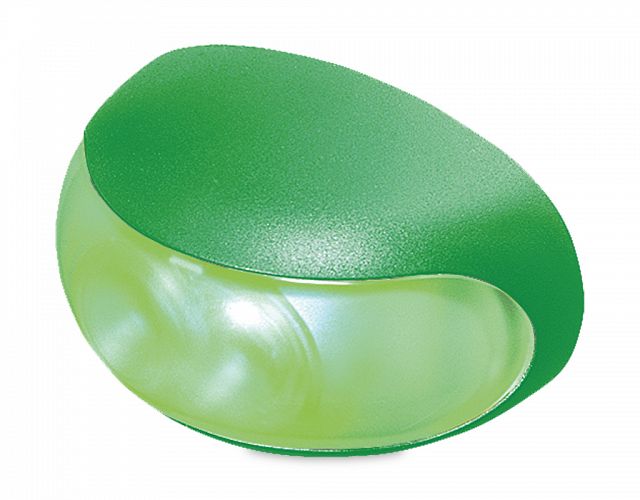

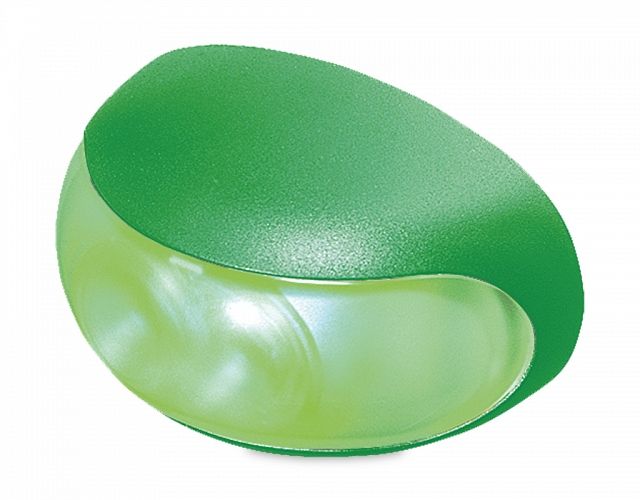

DuraLED® Surface Mount Courtesy Lamp - Green Light

95963055

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Two hole surface mount.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 0.5m of cable.

Compliance

CE CE

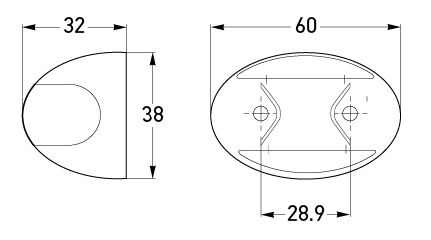

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959630XX Instruction Sheet.pdf 275.11 KB
