HELLA

LED Round Courtesy Lamps

Attractive, energy efficient round LED courtesy lamps for interior and exterior use. Available in nine exciting colours with a range of different rim finishes. Optic appears clear until illuminated.

Includes a black and a white plastic rim. Additional rims and housings are available as spare parts.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

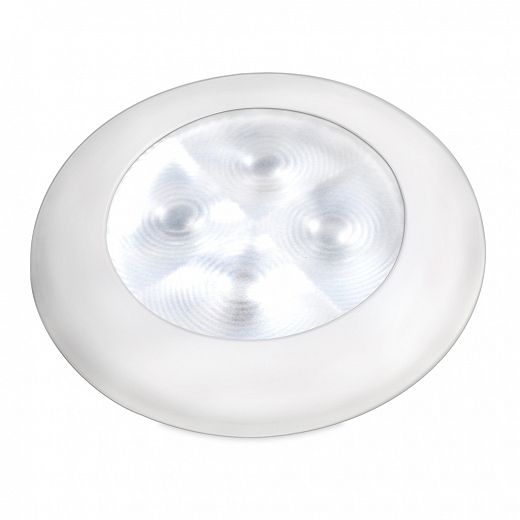

LED Round Courtesy Lamps - 12 Volt - White Light

LED Round Courtesy Lamps - 12 Volt - White Light

98050051
LED Round Courtesy Lamps - 24 Volt - White Light

LED Round Courtesy Lamps - 24 Volt - White Light

98050151

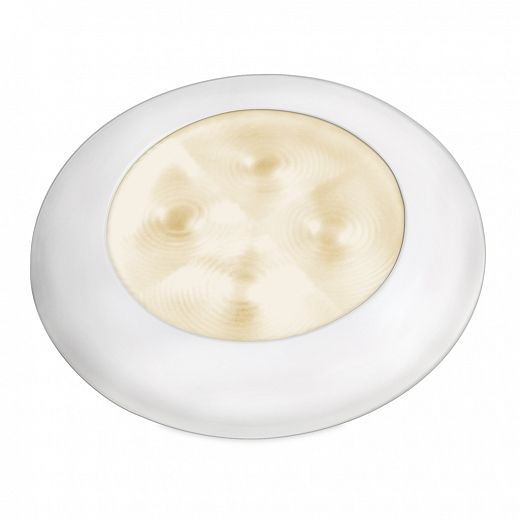

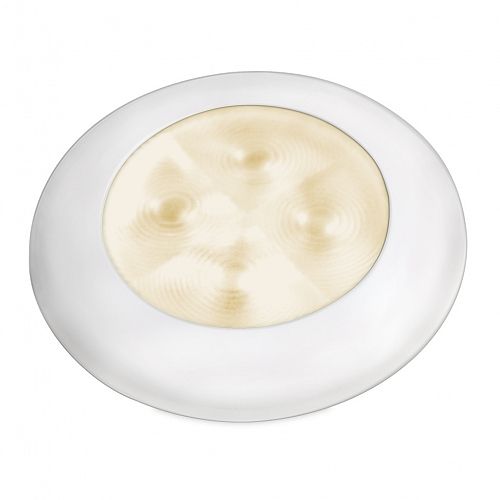

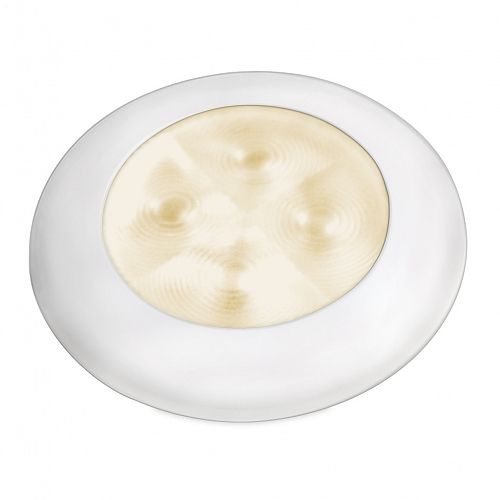

LED Round Courtesy Lamps - 12 Volt - Warm White Light

LED Round Courtesy Lamps - 12 Volt - Warm White Light

98050071
LED Round Courtesy Lamps - 24 Volt - Warm White Light

LED Round Courtesy Lamps - 24 Volt - Warm White Light

98050171

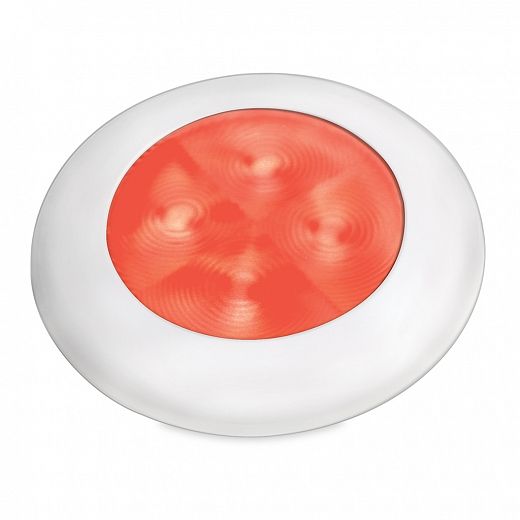

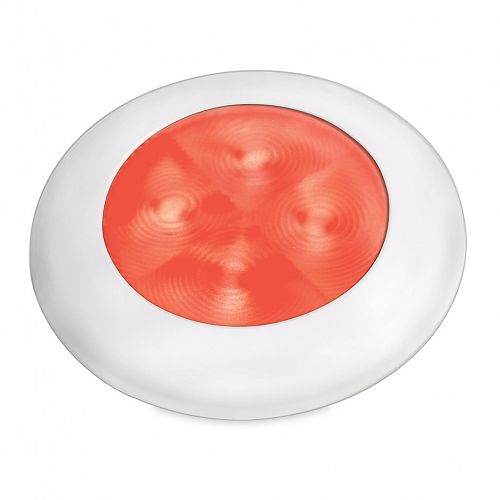

LED Round Courtesy Lamps - 12 Volt - Red Light

LED Round Courtesy Lamps - 12 Volt - Red Light

98050721
LED Round Courtesy Lamps - 24 Volt - Red Light

LED Round Courtesy Lamps - 24 Volt - Red Light

98050821

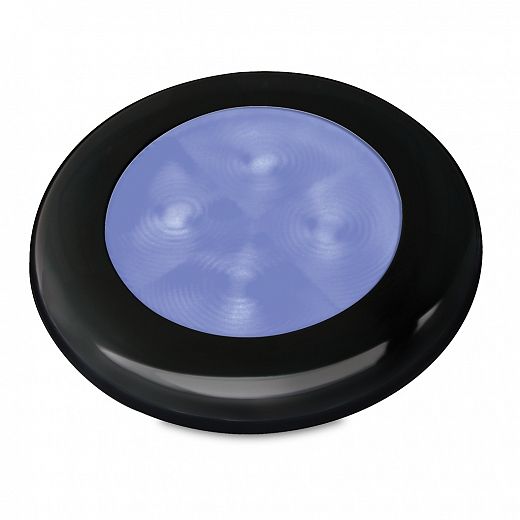

LED Round Courtesy Lamps - 12 Volt - Blue Light

LED Round Courtesy Lamps - 12 Volt - Blue Light

98050221
LED Round Courtesy Lamps - 24 Volt - Blue Light

LED Round Courtesy Lamps - 24 Volt - Blue Light

98050321

Specifications

Optic

Optic appears clear until illuminated.

Mounting

Recess mount with 50mm diameter hole.

Power Consumption

1W

Protection

Reverse polarity protection.
Fully sealed against dust, high-pressure washing and temporary water immersion.

Cable Length

Pre-wired with 120mm of cable.

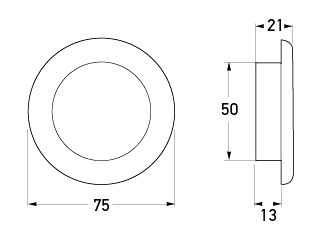

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959599XX 98050XX1 Instruction Sheet.pdf 378.02 KB
