HELLA

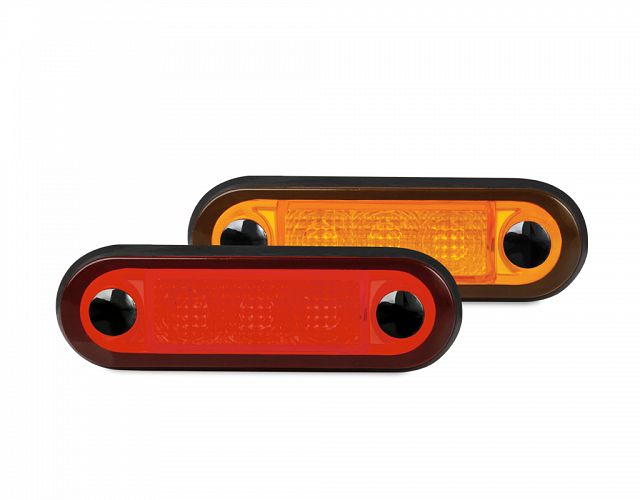

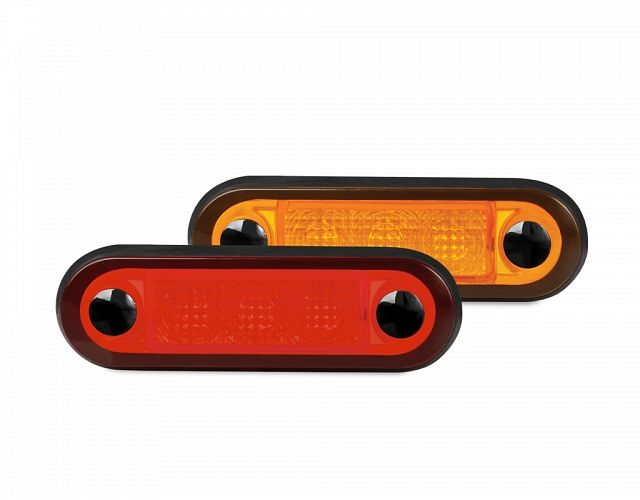

LED Narrow Rim Rectangular Courtesy Lamp

Narrow rim recess mount courtesy lamp with red or amber LEDs.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

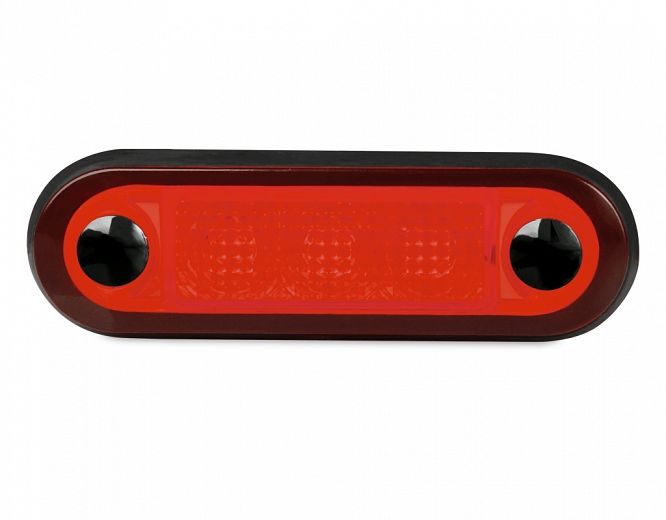

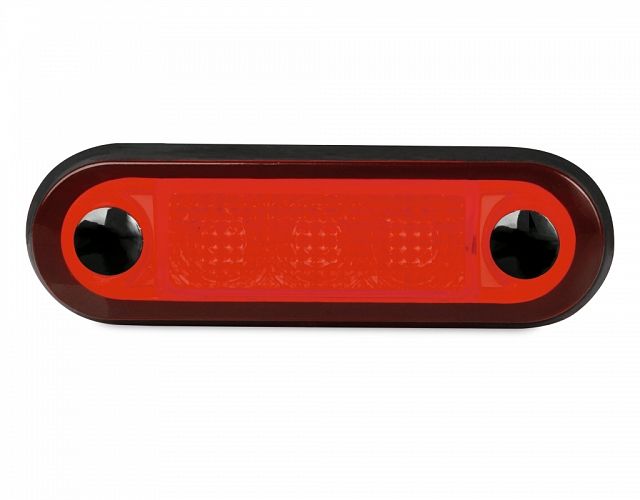

LED Narrow Rim Rectangular Courtesy Lamp, 12 Volt - Red Light - Red Lens

PART NO: 2XT 959 510-312
Legacy PN: 95951031

LED Narrow Rim Rectangular Courtesy Lamp, 24 Volt - Red Light - Red Lens

PART NO: 2XT 959 510-332
Legacy PN: 95951033

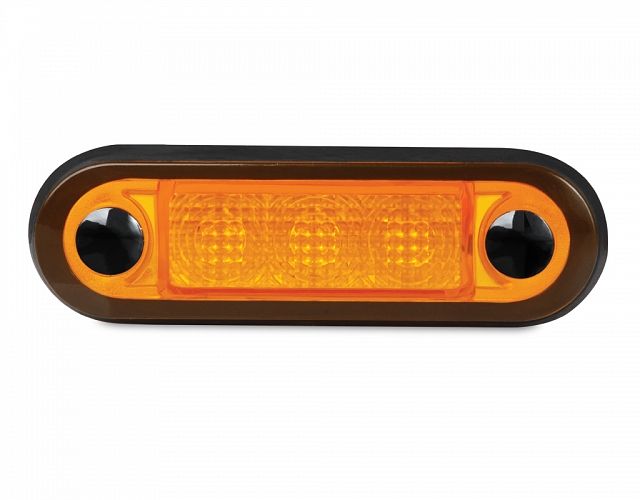

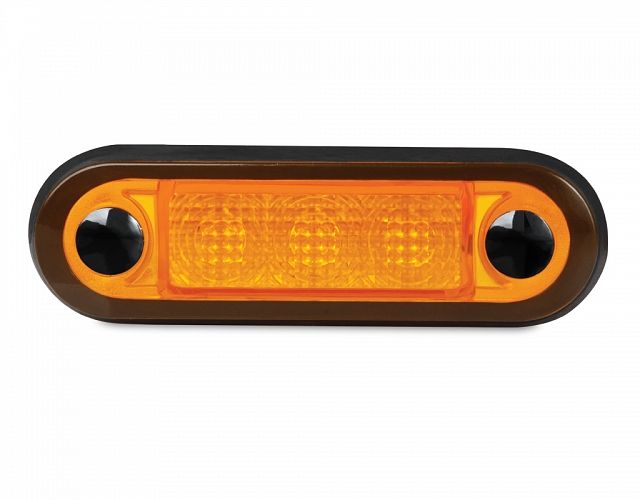

LED Narrow Rim Rectangular Courtesy Lamp, 12 Volt - Amber Light - Amber Lens

PART NO: 2XT 959 510-012
Legacy PN: 95951001

LED Narrow Rim Rectangular Courtesy Lamp, 24 Volt - Amber Light - Amber Lens

PART NO: 2XT 959 510-062
Legacy PN: 95951006

Specifications

Mounting

Recess mount

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 120mm of cable.

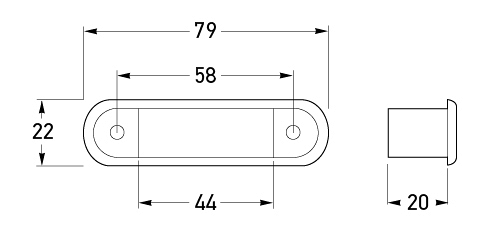

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959510XX Narrow Rim Instruction Sheet.pdf 302.50 KB
