HELLA

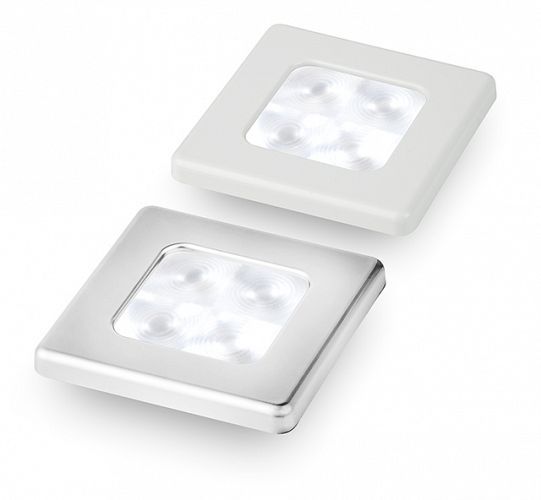

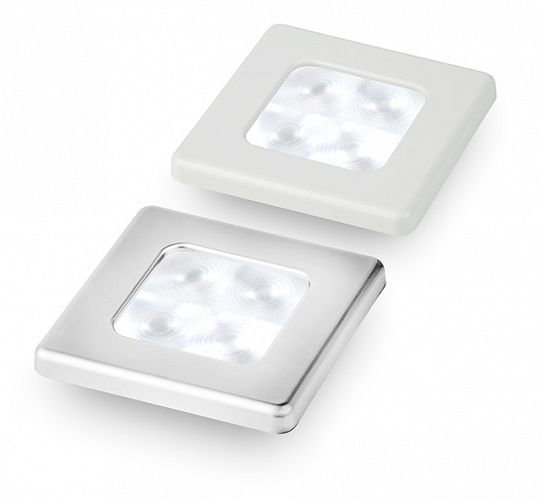

White LED Square Courtesy Lamp

HELLA LED Square Courtesy Lamps are an attractive, energy efficient lamp for interior and exterior use, which can be installed almost anywhere on your truck, bus, van, trailer or camper.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for a demanding environment.

Advanced lens technology provides an even spread of soft light without glare or eye strain. HELLA LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Attractive, energy efficient lighting for interior and exterior use, additional surface mounting accessories provide numerous installation options with surface finishes to compliment or contrast the lamp rims. HELLA LED courtesy lamps represent ultra reliable, energy efficient, ‘fit and forget’ technology.

Additional trims and spacers are available as spare parts.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

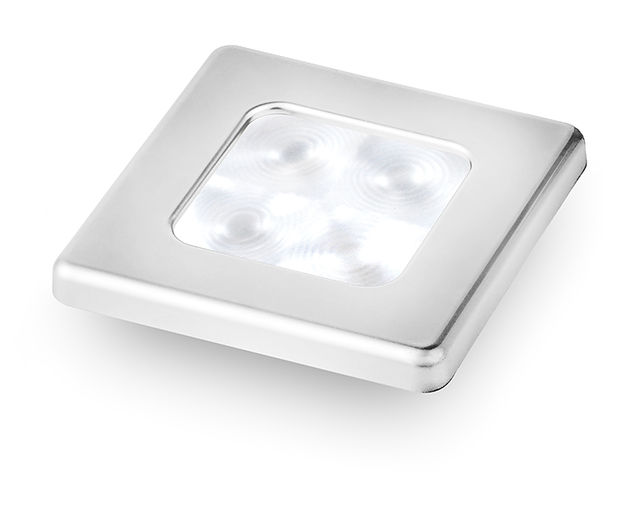

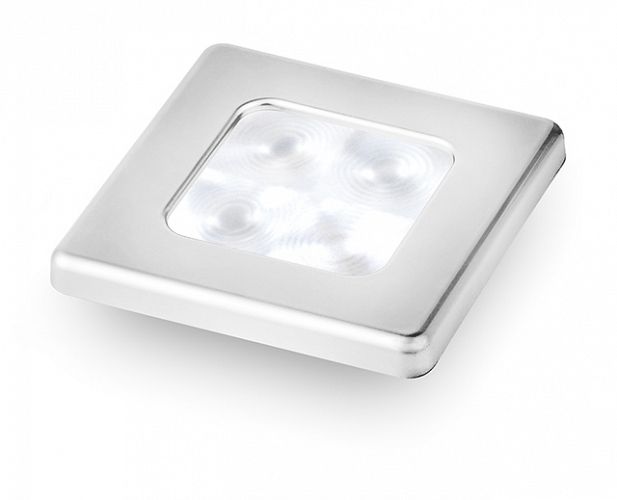

12V DC, Chrome Plated Rim

PART NO: 2XT 980 580-571

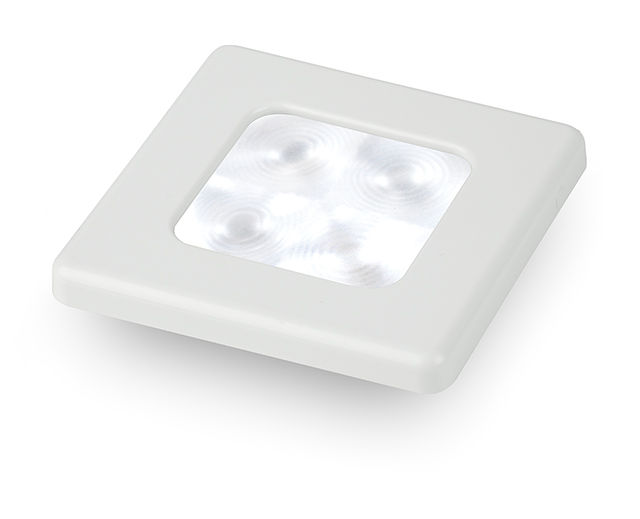

12V DC, White Plastic Rim

PART NO: 2XT 980 580-551

24V DC, Chrome Plated Rim

PART NO: 2XT 980 581-571

24V DC, White Plastic Rim

PART NO: 2XT 980 581-551

Surface Mount Spacer - white

PART NO: 8HG 959 993-542

Surface Mount Spacer - chrome

PART NO: 8HG 959 993-512

Surface Mount Spacer - black

PART NO: 8HG 959 993-602

White Plastic Spare Trim

PART NO: 9AB 980 585-311

Black Plastic Spare Trim

PART NO: 9AB 980 585-201

Specifications

Lens material

UV resistant enhanced impact acrylic

Rim Material

UV resistant plastic

Dimming

Dimmed via Hella marine Dimmer 5XA 998 572-001

Cable

Pre-wired with 120mm of single core marine cable

Operating Voltage

12V DC or 24V DC

Power Consumption

< 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )

Degree of Protection

IP 67 - Completely Sealed

Mounting

Stainless steel screws included

Weight

50g (including cable)

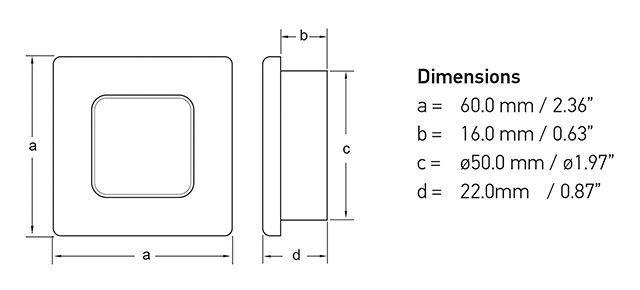

Outline


Top
