HELLA

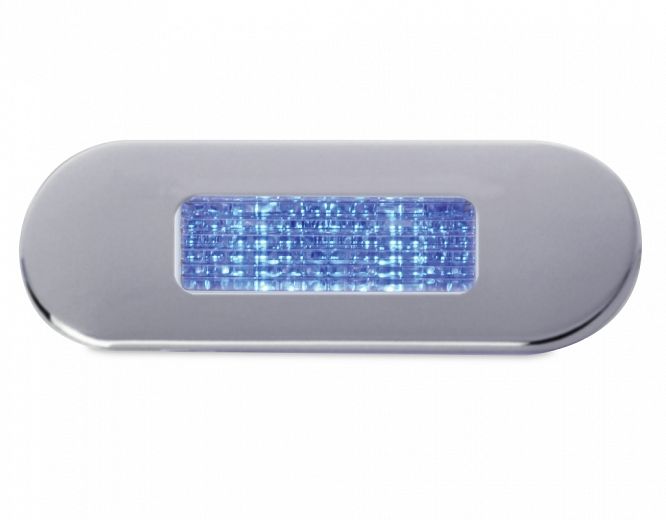

LED Courtesy Step Lamps - Wide Rim Rectangular

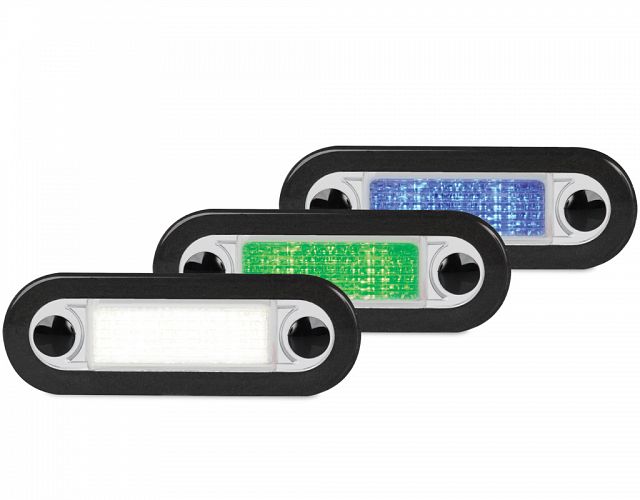

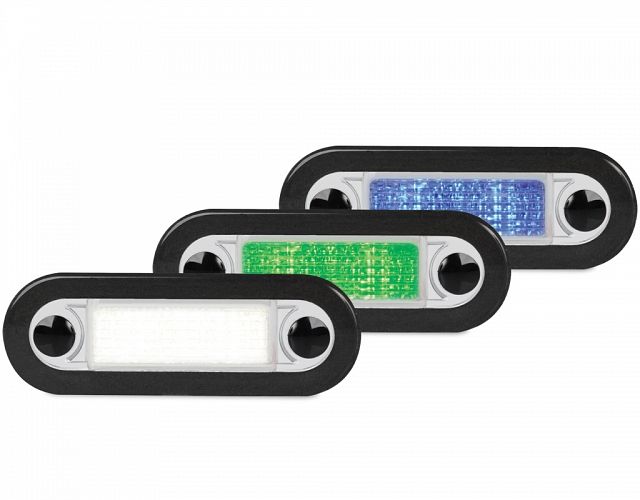

Flush mount step lamp with either white, warm white, green, blue or red LEDs.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

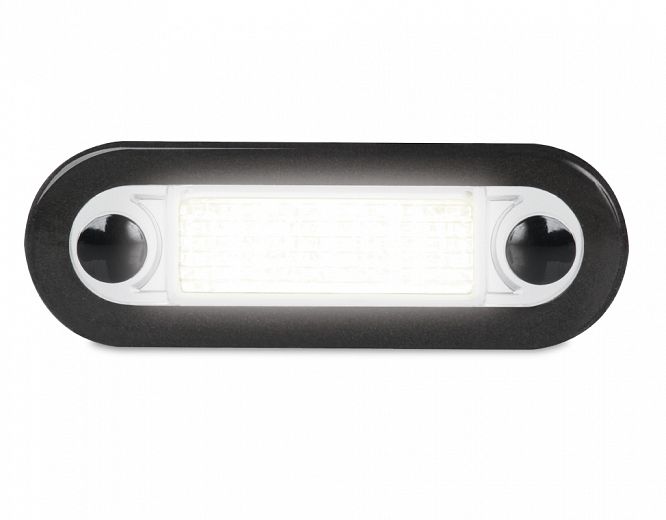

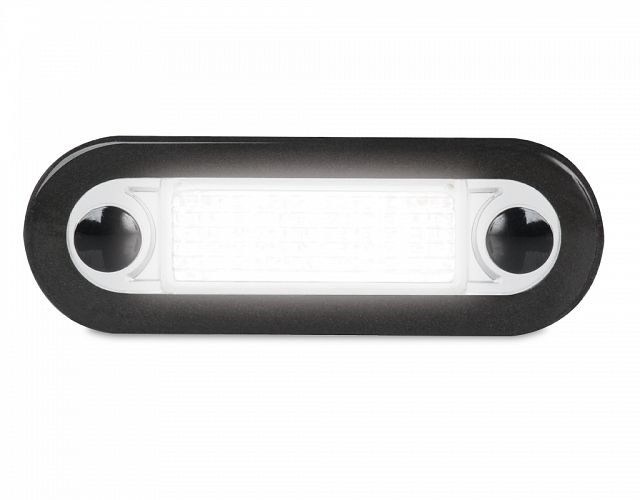

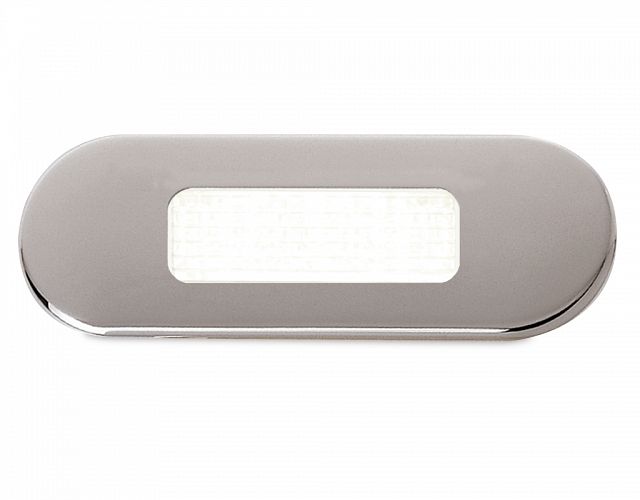

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Lamp Only

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Lamp Only

2XT 959 680-807

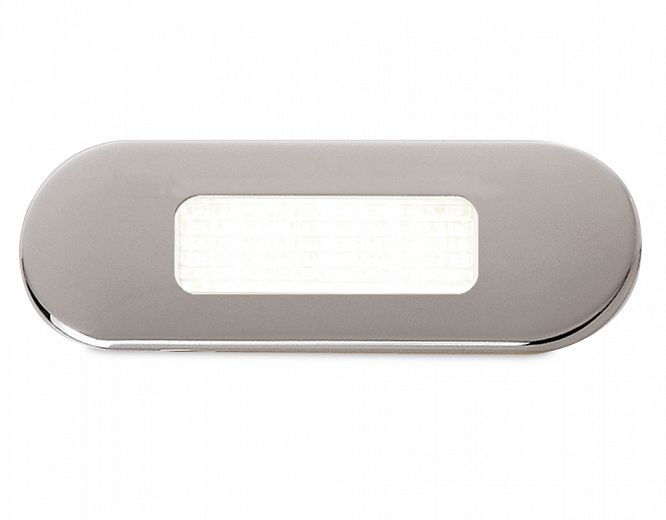

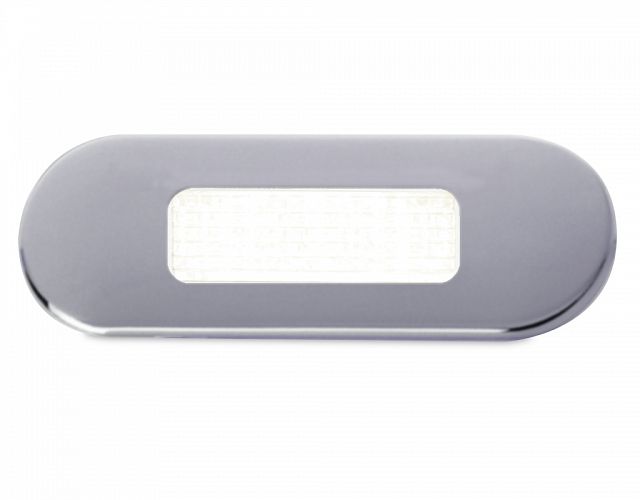

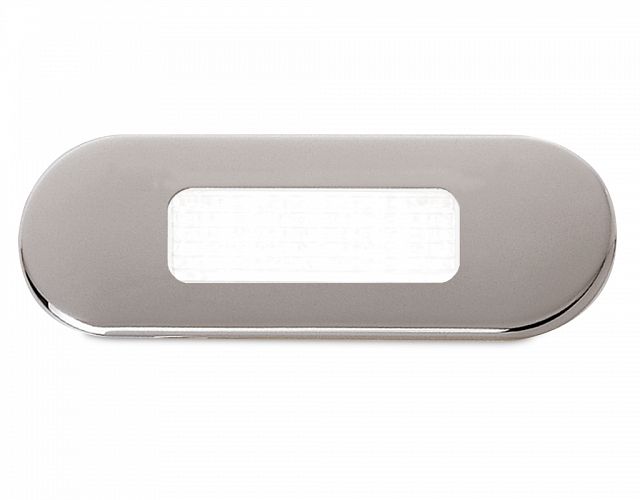

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Polished Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Polished Stainless Steel Rim

2XT 959 680-817
LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Gold Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Gold Plated Stainless Steel Rim

2XT 959 680-847

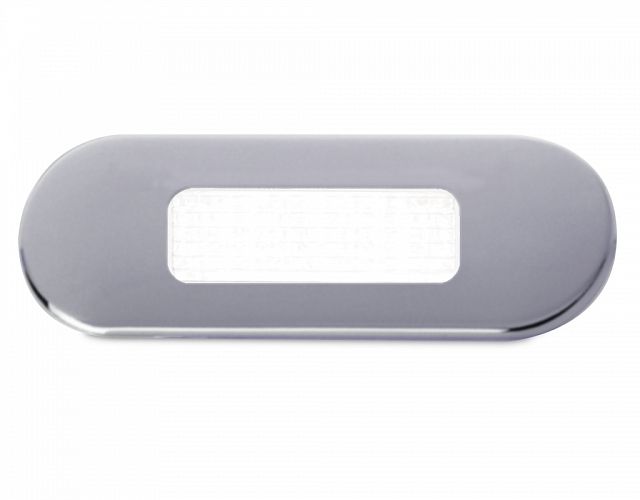

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - White Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

2XT 959 680-857

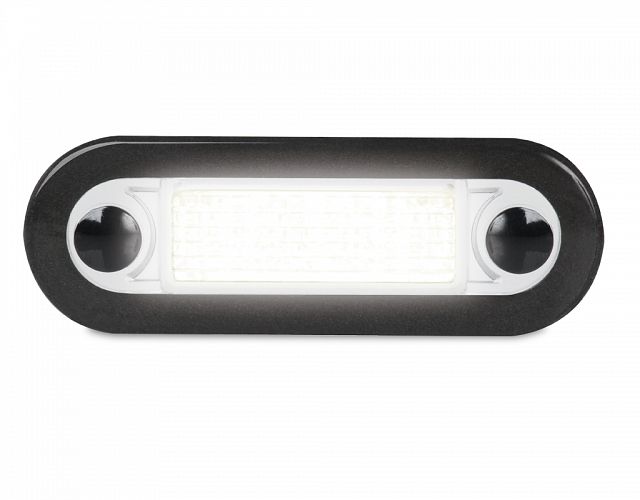

LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Lamp Only

LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Lamp Only

2XT 959 680-407
LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Polished Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Polished Stainless Steel Rim

2XT 959 680-417
LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Gold Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Gold Plated Stainless Steel Rim

2XT 959 680-427
LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Warm White Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

2XT 959 680-437

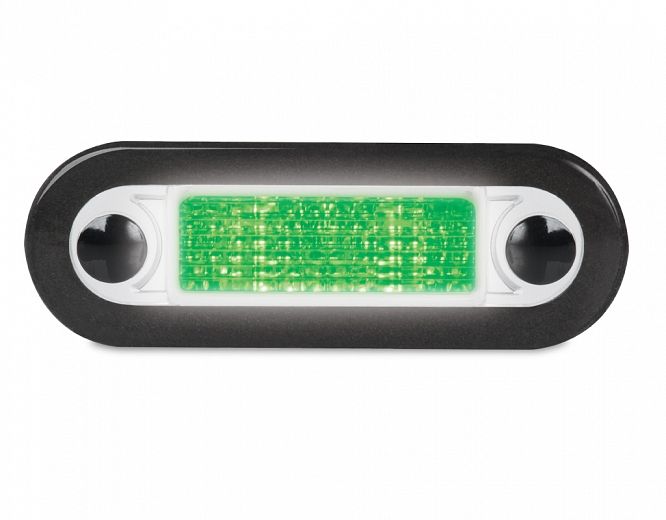

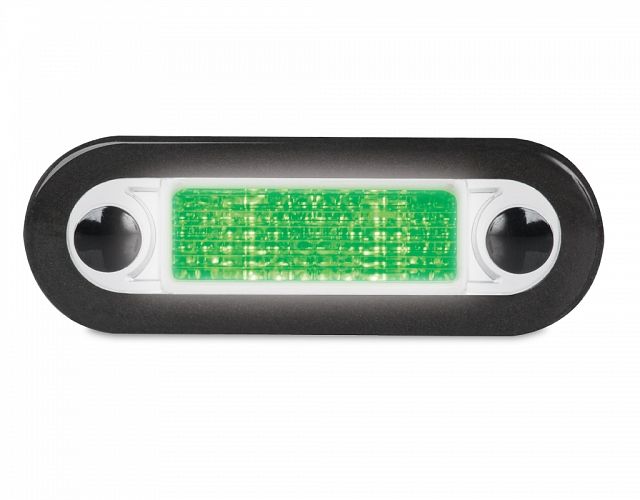

LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Lamp Only

LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Lamp Only

2XT 959 680-907
LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Polished Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Polished Stainless Steel Rim

2XT 959 680-917
LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Gold Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Gold Plated Stainless Steel Rim

2XT 959 680-927
LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Green Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

2XT 959 680-937
LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Lamp Only

LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Lamp Only

2XT 959 680-607

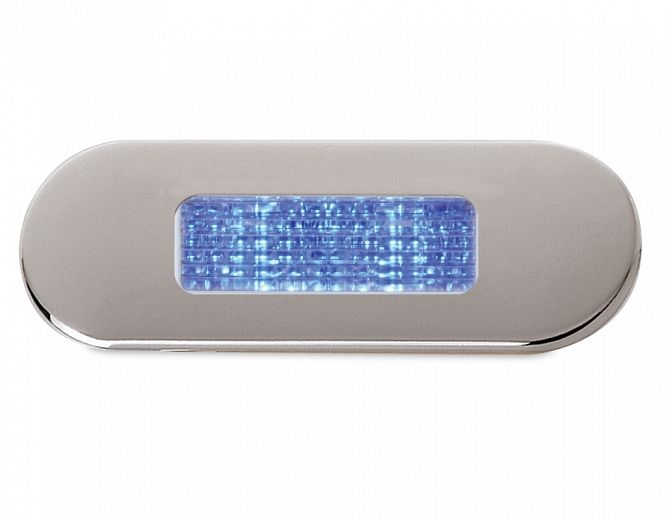

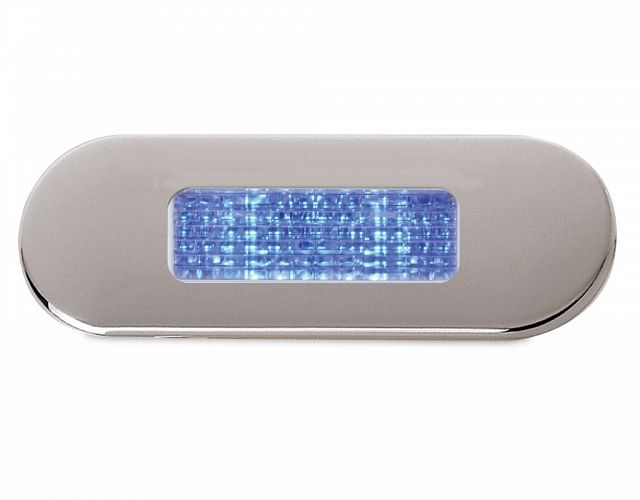

LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Polished Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Polished Stainless Steel Rim

2XT 959 680-617
LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Gold Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Gold Plated Stainless Steel Rim

2XT 959 680-627
LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Blue Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

2XT 959 680-637

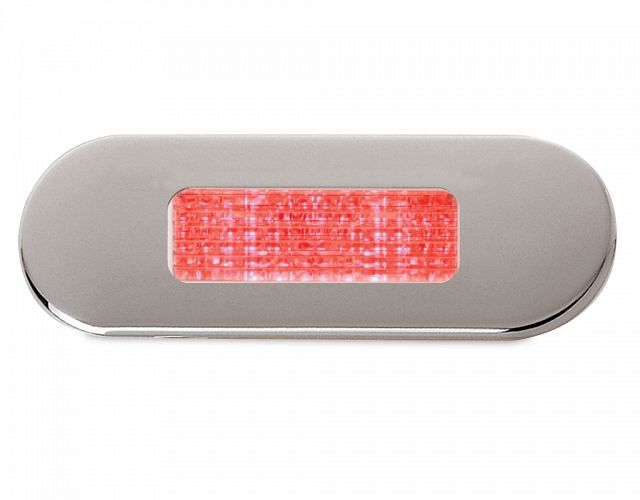

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Lamp Only

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Lamp Only

2XT 959 680-707

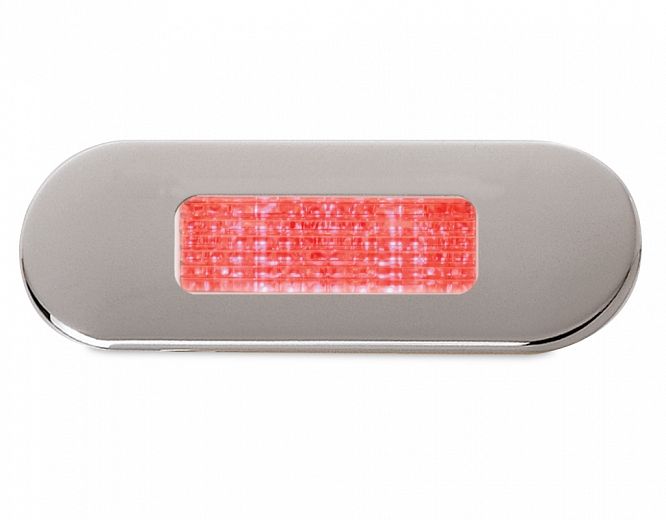

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Polished Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Polished Stainless Steel Rim

2XT 959 680-717
LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Gold Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Gold Plated Stainless Steel Rim

2XT 959 680-727
LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

LED Wide Rim Rectangular Step Lamp - Red Light - Clear Lens - Satin Chrome Plated Stainless Steel Rim

2XT 959 680-737

Specifications

Mounting

Two hole recess mount.

Voltage

Multivolt™ for optimum brightness at input voltage from 8 to 28 volts (red lamps),
or between 10 to 33 volts (blue, green, white and warm white lamps).

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 120mm of cable.

Lens Material

PMMA

Spare Part

9GD 959 517-007 Seal (Pack of 4)

Approval Markings

e1 03 1721 CE

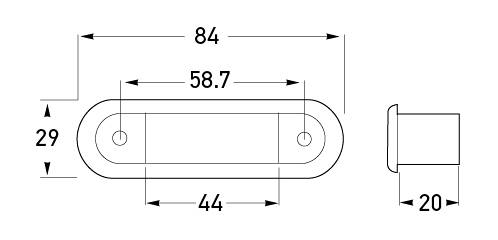

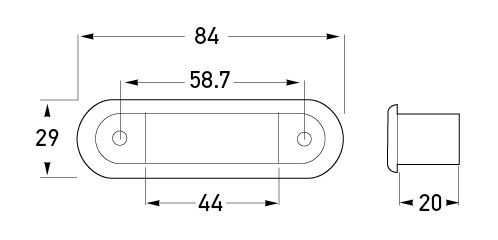

Outline

All dimensions in mm.
All dimensions in mm.

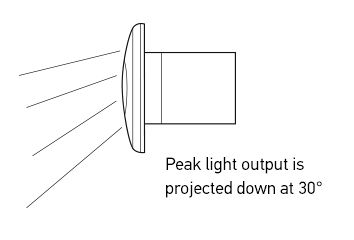

Light Output

Directional light
Directional light

Documents

Document File Name File Size
  2XT 959 680-XXX Wide Rim - Instruction Sheet.pdf 260.77 KB
