LED Courtesy Lamps - Wide Rim Rectangular

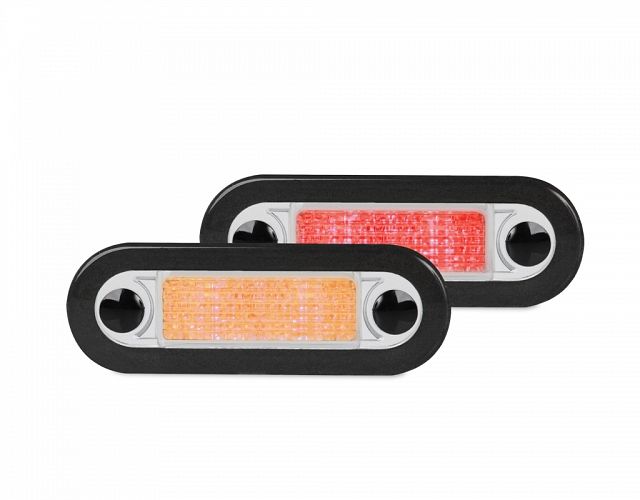

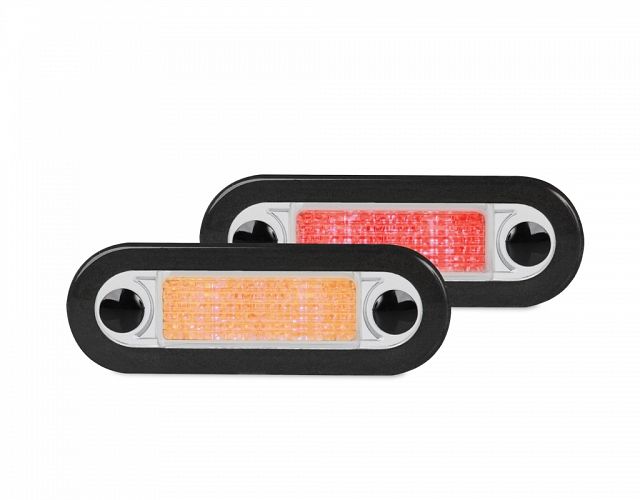

Wide rim flush mount courtesy lamp with either amber or red LEDs.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Clear Lens - 12 Volt

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Clear Lens - 12 Volt

2XT 959 510-507

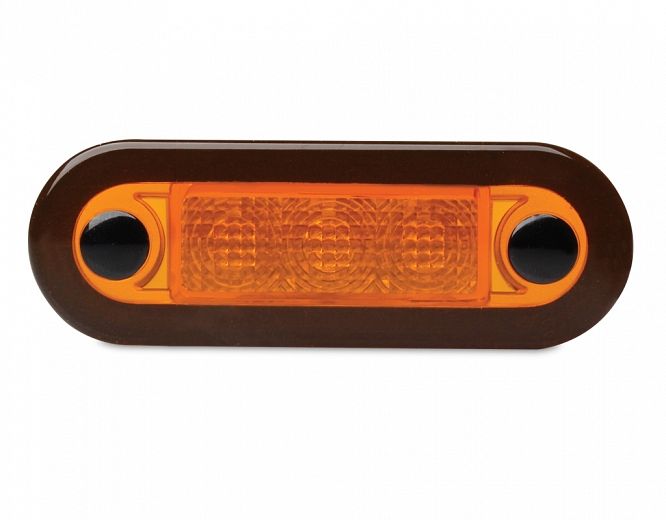

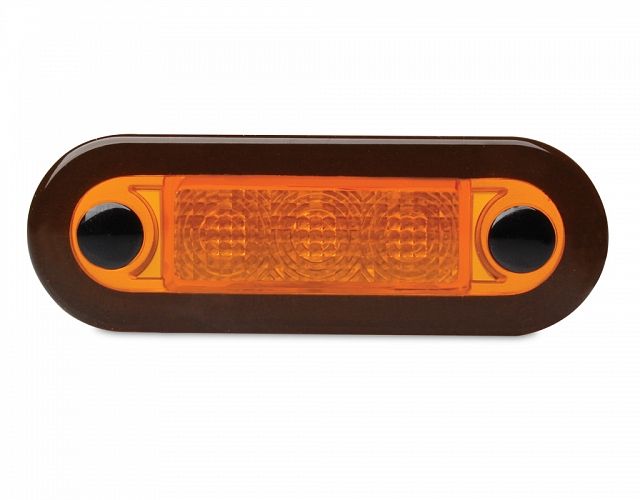

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Amber Lens - 12 Volt

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Amber Lens - 12 Volt

2XT 959 510-517
LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Clear Lens - 24 Volt

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Clear Lens - 24 Volt

2XT 959 510-557
LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Amber Lens - 24 Volt

LED Wide Rim Rectangular Courtesy Lamp - Amber Light - Amber Lens - 24 Volt

2XT 959 510-567

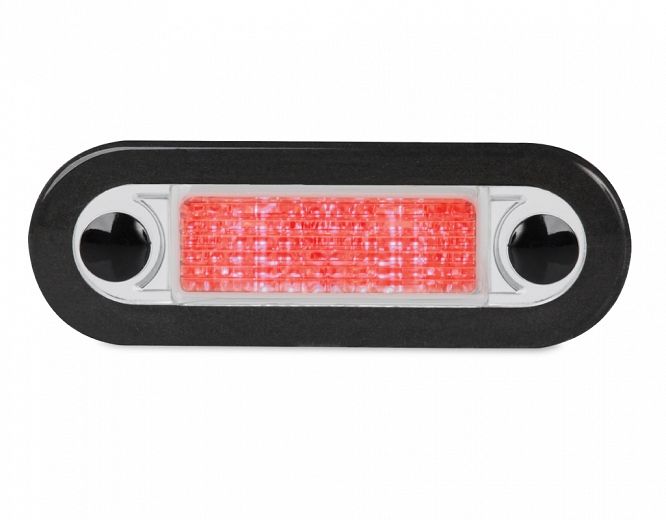

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Clear Lens - 12 Volt

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Clear Lens - 12 Volt

2XT 959 510-707

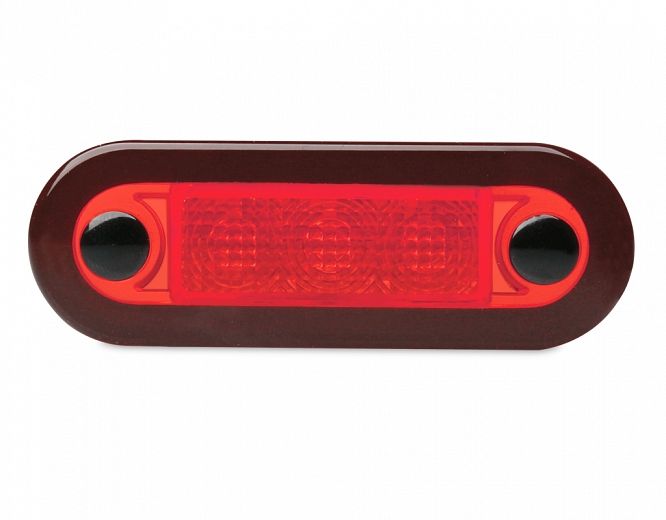

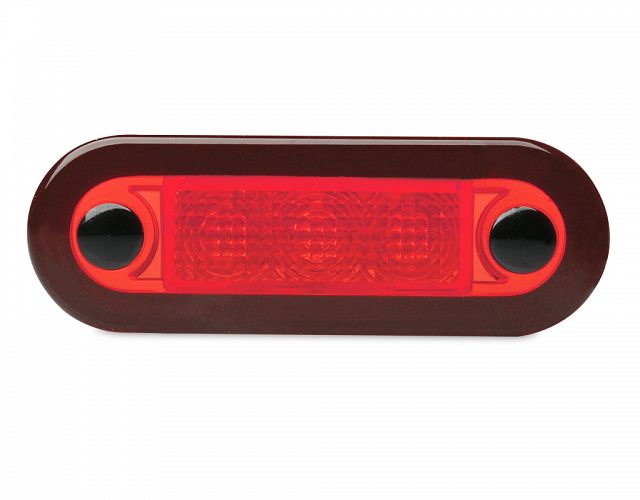

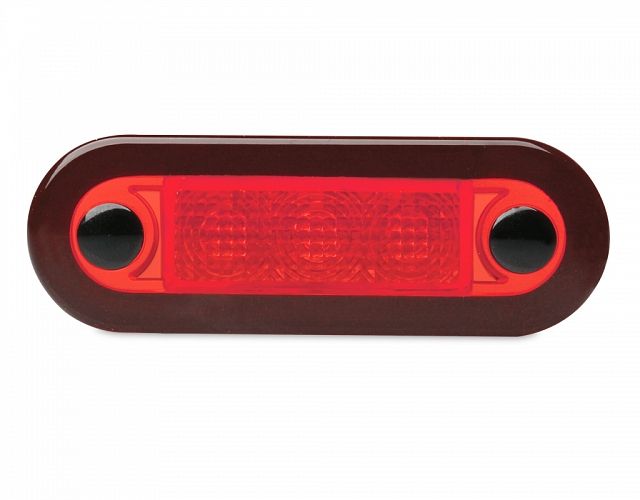

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Red Lens - 12 Volt

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Red Lens - 12 Volt

2XT 959 510-717
LED Wide Rim Rectangular Courtesy Lamp - Red Light - Clear Lens - 24 Volt

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Clear Lens - 24 Volt

2XT 959 510-757
LED Wide Rim Rectangular Courtesy Lamp - Red Light - Red Lens - 24 Volt

LED Wide Rim Rectangular Courtesy Lamp - Red Light - Red Lens - 24 Volt

2XT 959 510-767

Specifications

Mounting

Two hole recess mount.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 120mm of cable.

Lens Material

PMMA

Spare Part

9GD 959 517-007 Seal (Pack of 4)

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XT 959 510-XX7 Wide Rim Instruction Sheet.pdf 306.74 KB
