HELLA

LED Courtesy Step Lamps - Low Profile

Flush mount step lamp with either white, blue, amber or red LEDs, and a selection of cover colours.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

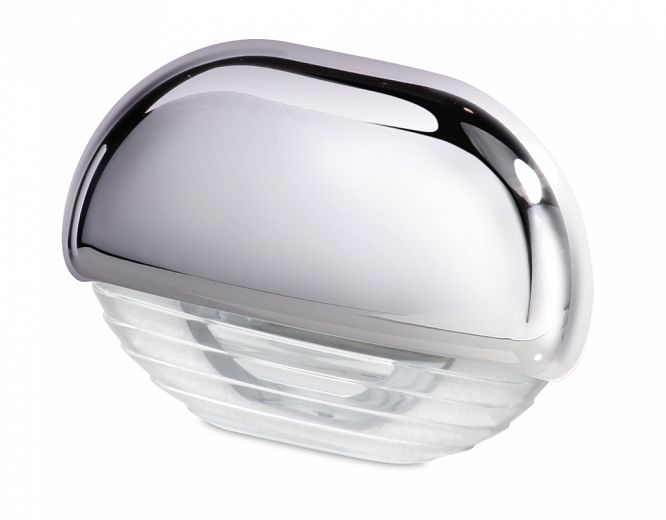

LED Low Profile Step Lamp - White Light - Clear Lens - Satin Chrome Plated Cap

LED Low Profile Step Lamp - White Light - Clear Lens - Satin Chrome Plated Cap

2JA 998 560-127

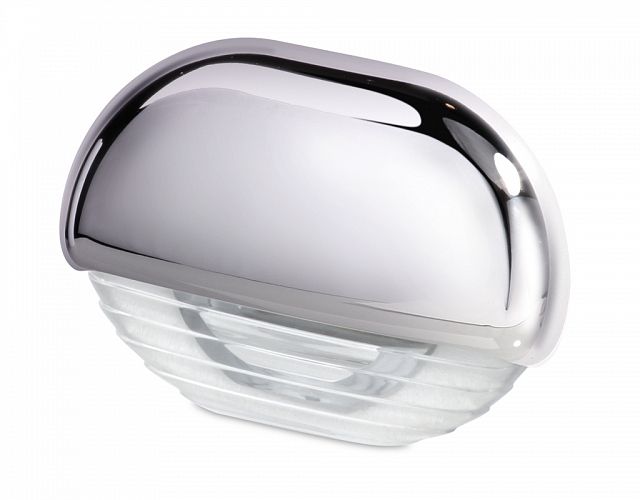

LED Low Profile Step Lamp - White Light - Clear Lens - Chrome Plated Cap

LED Low Profile Step Lamp - White Light - Clear Lens - Chrome Plated Cap

2JA 998 560-007
LED Low Profile Step Lamp - White Light - Clear Lens - Gold Plated Cap

LED Low Profile Step Lamp - White Light - Clear Lens - Gold Plated Cap

2JA 998 560-087
LED Low Profile Step Lamp - White Light - Clear Lens - White Cap

LED Low Profile Step Lamp - White Light - Clear Lens - White Cap

2JA 998 560-017
LED Low Profile Step Lamp - White Light - Clear Lens - Black Cap

LED Low Profile Step Lamp - White Light - Clear Lens - Black Cap

2JA 998 560-117
LED Low Profile Step Lamp - Blue Light - Clear Lens - Satin Chrome Plated Cap

LED Low Profile Step Lamp - Blue Light - Clear Lens - Satin Chrome Plated Cap

2JA 998 560-107
LED Low Profile Step Lamp - Blue Light - Clear Lens - Chrome Plated Cap

LED Low Profile Step Lamp - Blue Light - Clear Lens - Chrome Plated Cap

2JA 998 560-047
LED Low Profile Step Lamp - Blue Light - Clear Lens - Gold Plated Cap

LED Low Profile Step Lamp - Blue Light - Clear Lens - Gold Plated Cap

2JA 998 560-097

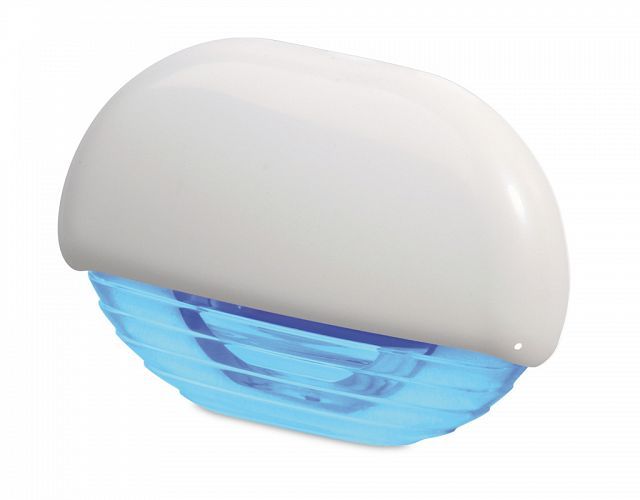

LED Low Profile Step Lamp - Blue Light - Clear Lens - White Cap

LED Low Profile Step Lamp - Blue Light - Clear Lens - White Cap

2JA 998 560-057
LED Low Profile Step Lamp - Blue Light - Clear Lens - Black Cap

LED Low Profile Step Lamp - Blue Light - Clear Lens - Black Cap

2JA 998 560-157
LED Low Profile Step Lamp - Amber Light - Clear Lens - Satin Chrome Plated Cap

LED Low Profile Step Lamp - Amber Light - Clear Lens - Satin Chrome Plated Cap

2JA 998 560-347
LED Low Profile Step Lamp - Amber Light - Clear Lens - Chrome Plated Cap

LED Low Profile Step Lamp - Amber Light - Clear Lens - Chrome Plated Cap

2JA 998 560-307
LED Low Profile Step Lamp - Amber Light - Clear Lens - Gold Plated Cap

LED Low Profile Step Lamp - Amber Light - Clear Lens - Gold Plated Cap

2JA 998 560-337
LED Low Profile Step Lamp - Amber Light - Clear Lens - White Cap

LED Low Profile Step Lamp - Amber Light - Clear Lens - White Cap

2JA 998 560-317
LED Low Profile Step Lamp - Amber Light - Clear Lens - Black Cap

LED Low Profile Step Lamp - Amber Light - Clear Lens - Black Cap

2JA 998 560-327
LED Low Profile Step Lamp - Red Light - Clear Lens - Satin Chrome Plated Cap

LED Low Profile Step Lamp - Red Light - Clear Lens - Satin Chrome Plated Cap

2JA 998 560-247
LED Low Profile Step Lamp - Red Light - Clear Lens - Chrome Plated Cap

LED Low Profile Step Lamp - Red Light - Clear Lens - Chrome Plated Cap

2JA 998 560-207
LED Low Profile Step Lamp - Red Light - Clear Lens - Gold Plated Cap

LED Low Profile Step Lamp - Red Light - Clear Lens - Gold Plated Cap

2JA 998 560-237
LED Low Profile Step Lamp - Red Light - Clear Lens - White Cap

LED Low Profile Step Lamp - Red Light - Clear Lens - White Cap

2JA 998 560-217
LED Low Profile Step Lamp - Red Light - Clear Lens - Black Cap

LED Low Profile Step Lamp - Red Light - Clear Lens - Black Cap

2JA 998 560-227

Specifications

Mounting

Single hole recess mount (foam gasket supplied).

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W

Protection

Reverse polarity protection.
Fully sealed against dust, high-pressure washing and temporary water immersion.

Cable Length

Pre-wired with 100mm of cable.

Lens Material

PC

Approval Markings

CE

Note

Lamp covers cannot be removed easily once clipped into place.

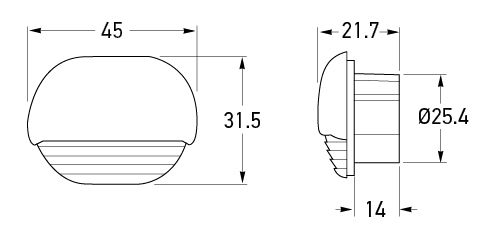

Outline

All dimensions in mm
All dimensions in mm

Documents

Document File Name File Size
  2JA 998 560-XX7 Instruction Sheet.pdf 1.63 MB
