LED Interior Strip Lamp - Surface Mount

These LED interior surface mount strip lamps feature a shallow 11mm profile, completely sealed housings and class leading efficiency. The range is ideal for a wide range of interior or exterior applications.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED Interior Surface Mount Strip Lamp - 12 Volt - White Light

LED Interior Surface Mount Strip Lamp - 12 Volt - White Light

2JA 980 881-002
LED Interior Surface Mount Strip Lamp - 12 Volt - Warm White Light

LED Interior Surface Mount Strip Lamp - 12 Volt - Warm White Light

2JA 980 881-202
LED Interior Surface Mount Strip Lamp - 24 Volt - White Light

LED Interior Surface Mount Strip Lamp - 24 Volt - White Light

2JA 980 881-102
LED Interior Surface Mount Strip Lamp - 24 Volt - Warm White Light

LED Interior Surface Mount Strip Lamp - 24 Volt - Warm White Light

2JA 980 881-302

Specifications

Mounting

Two hole surface mount.

Power Consumption

<3W

Protection

Reverse polarity protection.
 IP 6K7 (Protection against dust and temporary water immersion)
 IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of twin core cable.

Spare Parts

9HD 980 885-008 White screw caps (Pack of 4)
9HD 980 885-018 Charcoal screw caps (Pack of 4)
9HD 980 885-108 Chrome plated screw caps (Pack of 4)

Lens Material

PMMA

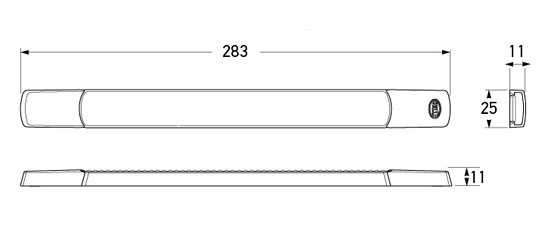

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2JA 980 881-XXX Instruction Sheet.pdf 594.13 KB
