HELLA

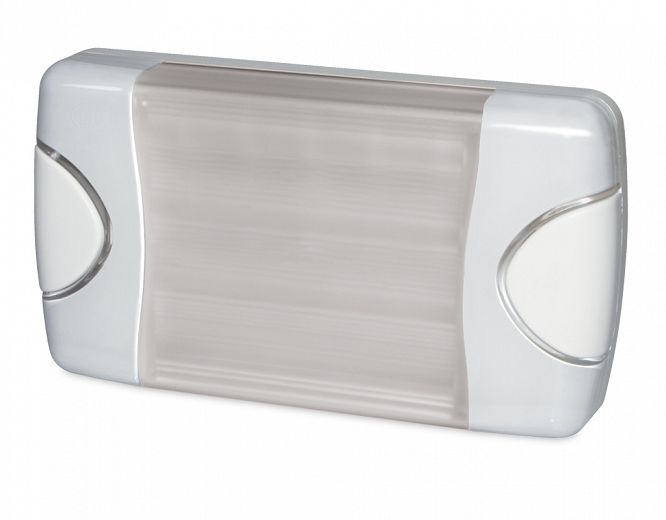

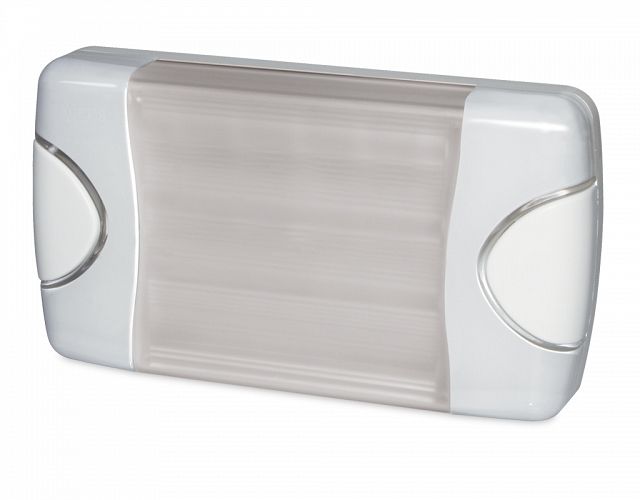

DuraLED® White 20 LED Wide Spread Lamp

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Exceptional light output – Ultra bright white light

Reliable – durable – ultra long service life
Completely sealed, maintenance free. Superior materials feature impact, shock, vibration, UV and corrosion resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

20 LED

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> White 20 LED Lamp - Wide Spread - White Lens

DuraLED® White 20 LED Lamp - Wide Spread - White Lens

98060801

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W

Protection

Reverse polarity and transient spike circuit protection
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

CE CE

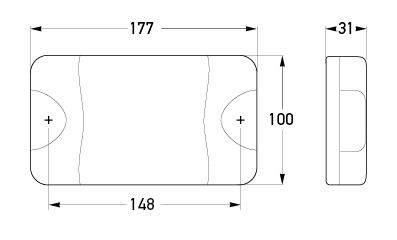

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

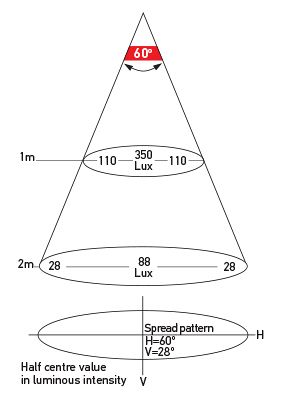

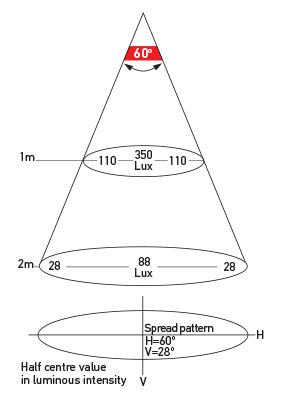

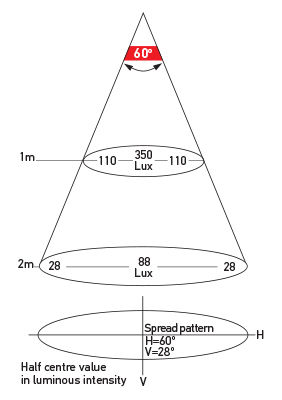

Illumination Chart
Illumination Chart

Documents

Document File Name File Size
  98060801 Instruction Sheet.pdf 415.76 KB
