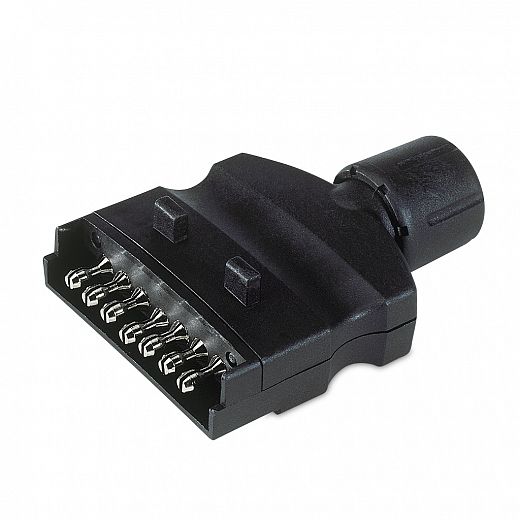

7 Pole Flat Plug

Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

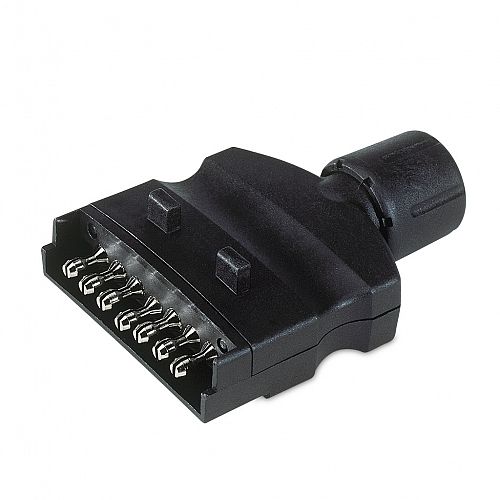

7 Pole Flat Plug

7 Pole Flat Plug

4921
7 Pole Flat Plug - Bulk pack 50

7 Pole Flat Plug - Bulk pack 50

4921-BULK

Specifications

Maximum load

12V 20A (total)
24V 10A (total)

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
