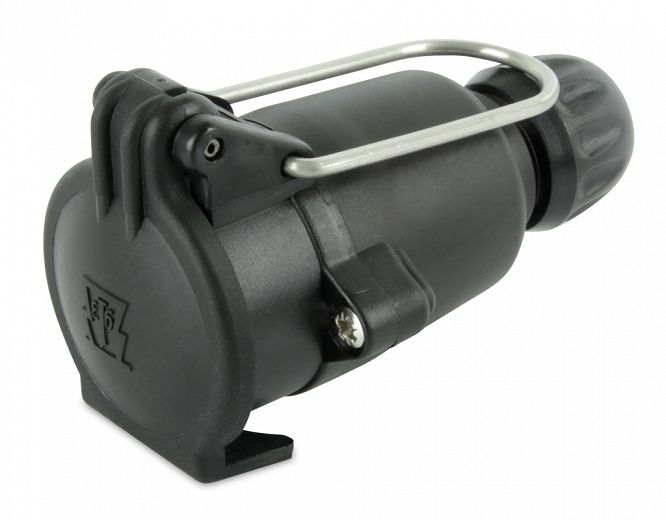

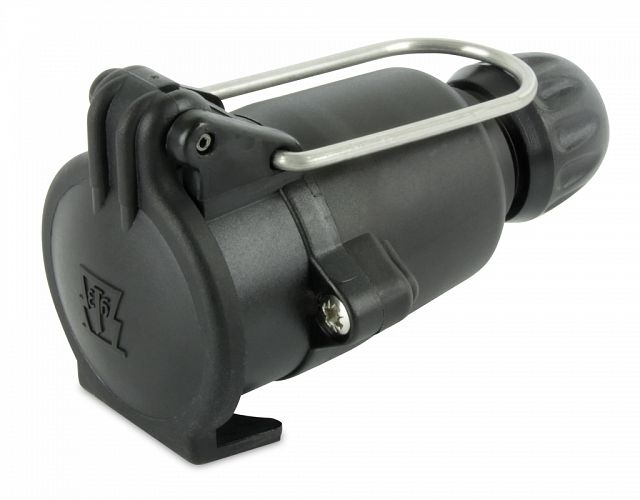

7 Pole Round Plastic Socket - Non Mounting

Simply stores in boot until required. Requires no permanent bumper mounting.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

7 Pole Round Plastic Socket - Non Mounting

7 Pole Round Plastic Socket - Non Mounting

4909

Specifications

Maximum load

12V 16A with 1.5mm2 cable (total).
12V 25A with 2.5mm2 cable (total)

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
