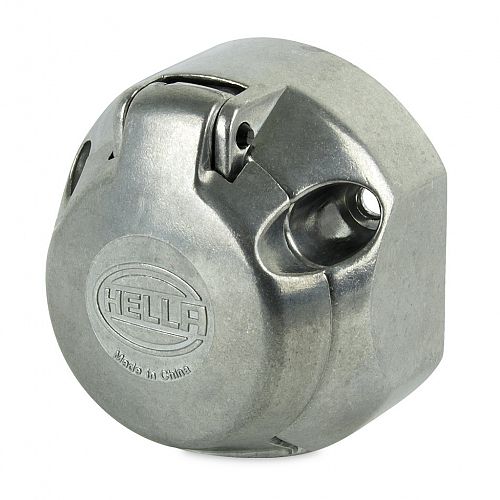

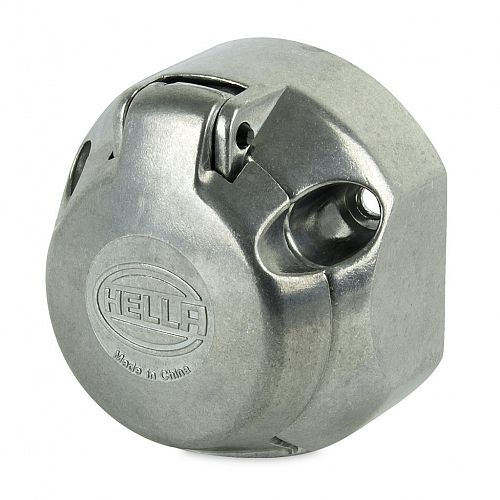

7 Pole Round Metal Socket

Solid metal socket with removable contact set.

To find a HELLA reseller near you, click here.

P/N 4912 (7 Pole Round Metal Socket)

Rollover/tap the icons below for further details:

Options

PART NO: 8JB 001 941-006
Legacy PN: 4912

PART NO: 8JB 001 941-007
Legacy PN: 4912BULK

12V	16A with 1.5mm² cable (total).
12V	25A with 2.5mm² cable (total)

7 Pole Connector Wiring Specifications

Terminal Number	Connect to
1	Left-hand flasher lamps	Yellow
2	Reversing lamps	Black
3	Earth return	White
4	Right-hand flasher lamps	Green
5	Service brakes (or Auxiliary)	Blue
6	Stop lamps	Red
7	Rear position, number plate and clearance lamps	Brown

Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
