HELLA

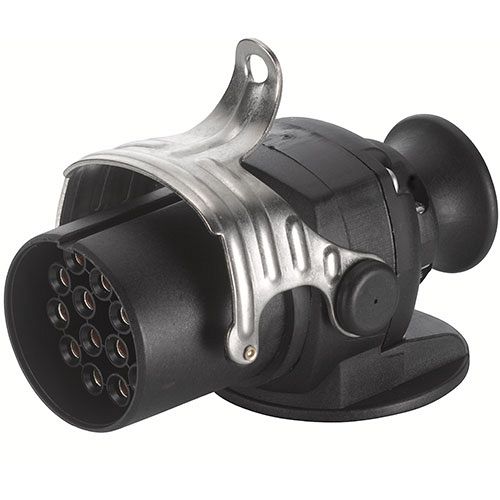

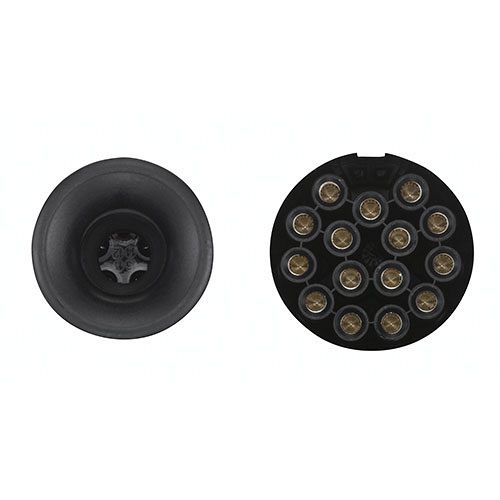

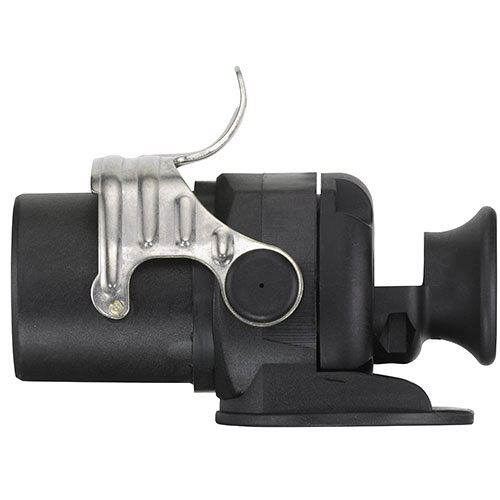

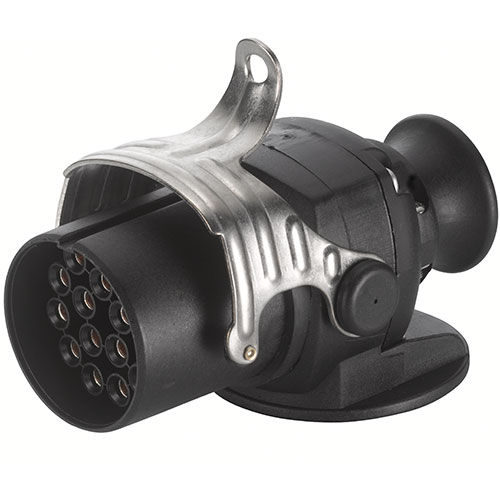

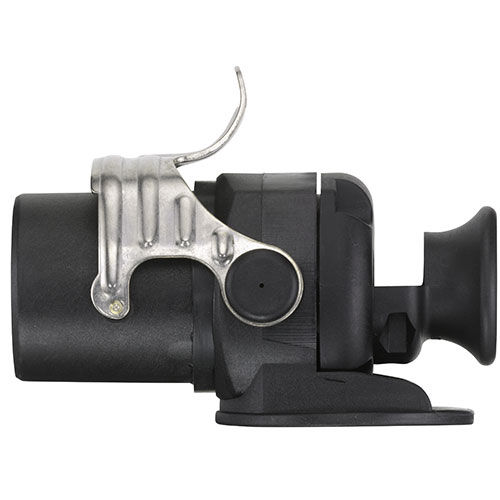

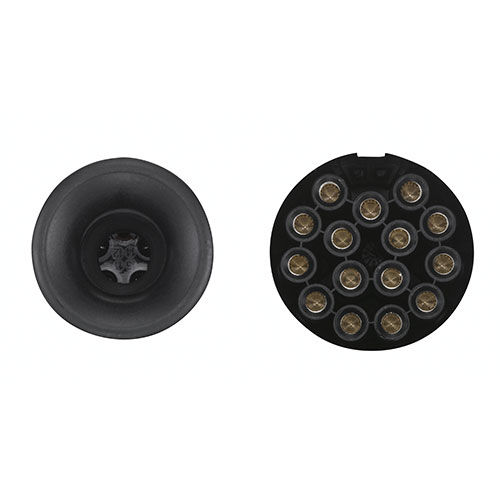

15 Pole Plug

Plastic plug with rubber gasket and nickel-plated pins. Featuring fibre glass reinforced polyamide housing and mechanical strain relief. Secure arrest with rust resistant metal bail (ISO 12 098).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

15 Pole Plug with Screw Terminals

15 Pole Plug with Screw Terminals

8JA 007 241-021
15 Pole Plug with Crimp Terminals

15 Pole Plug with Crimp Terminals

8JA 007 241-031

Specifications

Maximum load

24V 16A with 1.5mm2 cable (total)
24V 25A with 2.5mm2 cable (total)

Cable

Suitable for cable diameter measuring 12 - 18mm.
