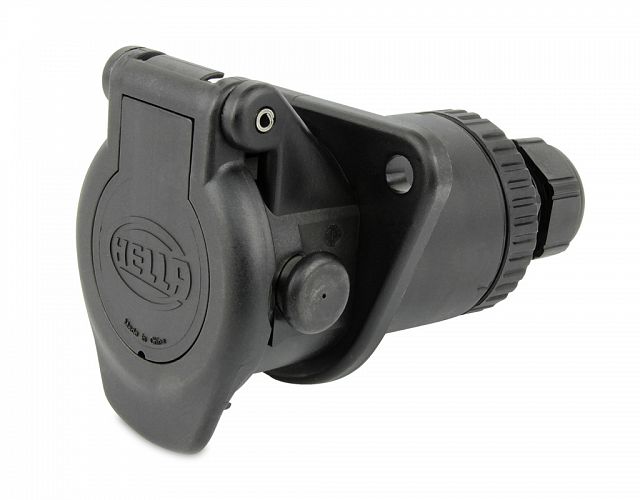

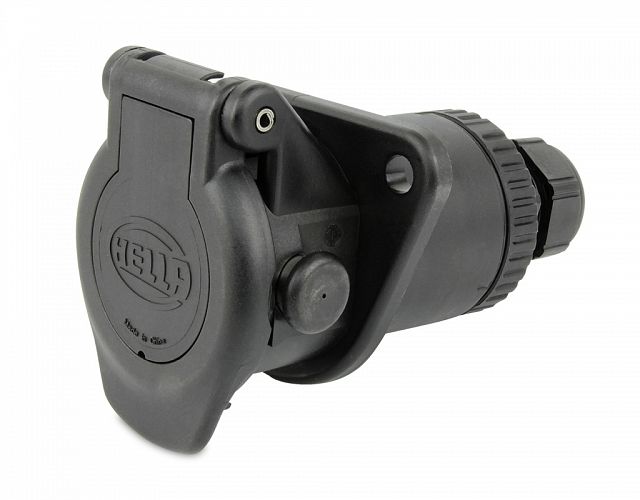

15 Pole Socket

Plastic socket with lid, rubber gasket and nickel-plated pins. Featuring fibre glass reinforced polyamide housing. PC gland for cable exit.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

15 Pole Socket with Screw Terminals

15 Pole Socket with Screw Terminals

8JB 007 242-011
15 Pole Socket with Crimp Terminals

15 Pole Socket with Crimp Terminals

8JB 007 242-021

Specifications

Maximum load

24V 16A with 1.5mm2 cable (total)
24V 25A with 2.5mm2 cable (total)

Cable

Suitable for cable diameter measuring 12 - 18mm.
