7 Pole Round Plastic Socket

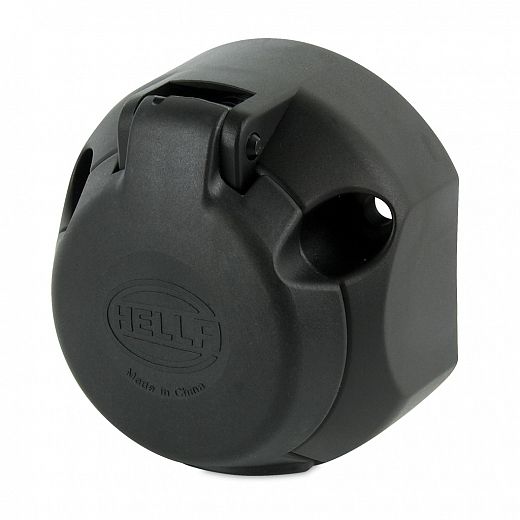

Black plastic socket with removable contact set. P/N 4901X with disconnecting contact for rear fog or rear parking sensors.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

7 Pole Round Plastic Socket

7 Pole Round Plastic Socket

4901

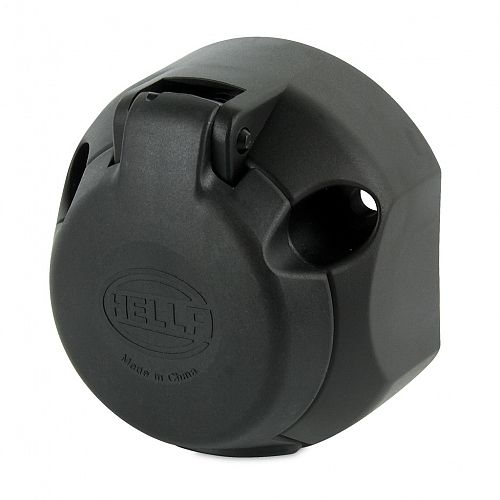

7 Pole Round Plastic Socket with Disconnecting Contact

7 Pole Round Plastic Socket with Disconnecting Contact

4901X

Specifications

Maximum load

12V 16A with 1.5mm2 cable (total).
12V 25A with 2.5mm2 cable (total)

Accessory

9.4901.05 Gasket with cable exit

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
