HELLA

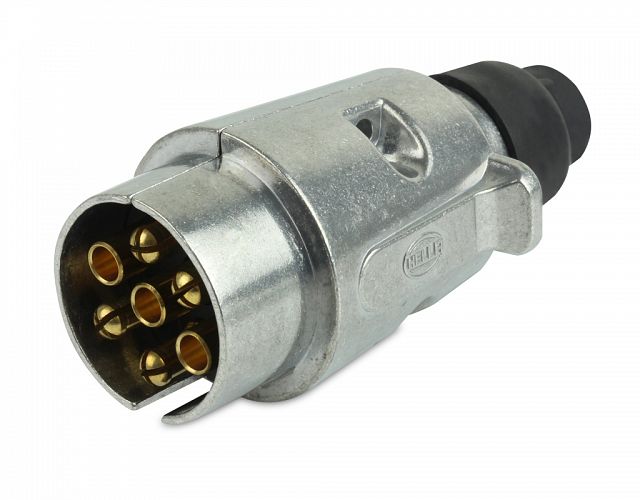

7 Pole Round Metal Plug

Solid metal plug with cable strain relief.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

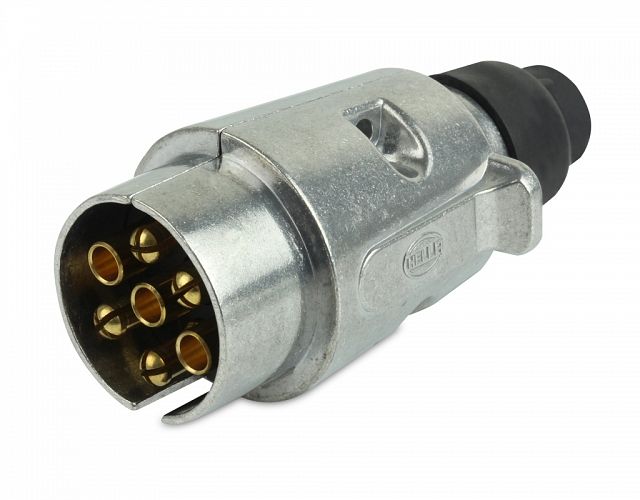

7 Pole Round Metal Plug

7 Pole Round Metal Plug

4911
7 Pole Round Metal Plug - Bulk pack 25

7 Pole Round Metal Plug - Bulk pack 25

4911-BULK

Specifications

Maximum load

12V 16A with 1.5mm2 cable (total).
12V 25A with 2.5mm2 cable (total)

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
