LED Stop/Rear Position/Rear Direction Indicator Lamp

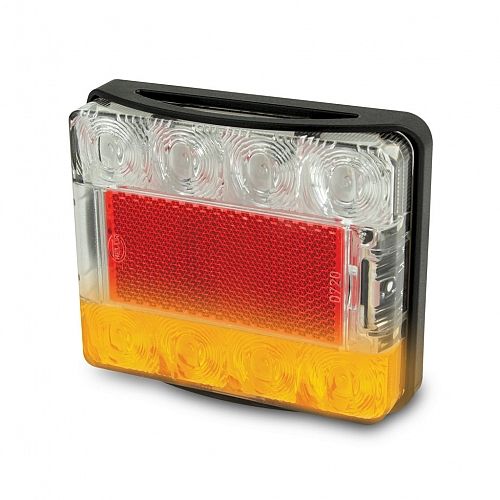

Small but powerful: Meet the complex all rounder, HELLA’s compact size LED lamp featuring stop, rear position and rear direction indicator lamp with a 18cm² red retro reflector. Sophisticated clear lens design with black mounting base. Optic appears clear until illuminated.

Suitable for small/medium utes, trucks, trailers

Convenient mounting base with multiple fixing points
Easy fitment to most trailers/vehicles.

Better Visibility – More Safety
Distinctive lit up appearance on rear position/stop function increases visibility and awareness

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Grilamid® Lens
Please click on Grilamid® above for further information.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

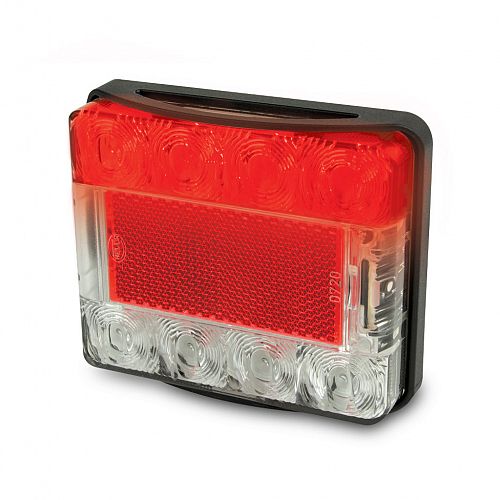

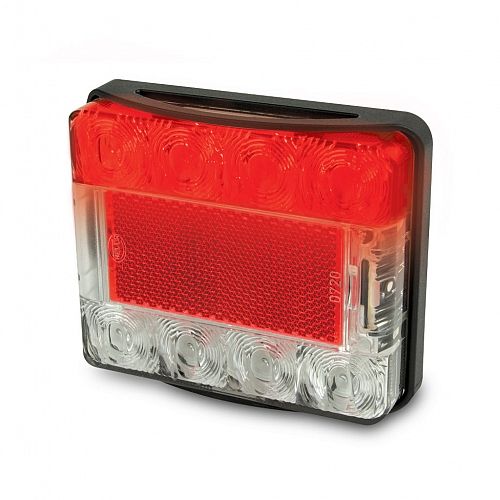

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Combination Lamp

LED Combination Lamp

2394
LED Combination Lamp - Bulk Pack 18

LED Combination Lamp - Bulk Pack 18

2394-BULK
LED Combination Lamp - 6 Metre Cable

LED Combination Lamp - 6 Metre Cable

2394-6M
LED Combination Lamp - 6 Metre Cable - Bulk Pack 10

LED Combination Lamp - 6 Metre Cable - Bulk Pack 10

2394-6MBULK

Specifications

Optics

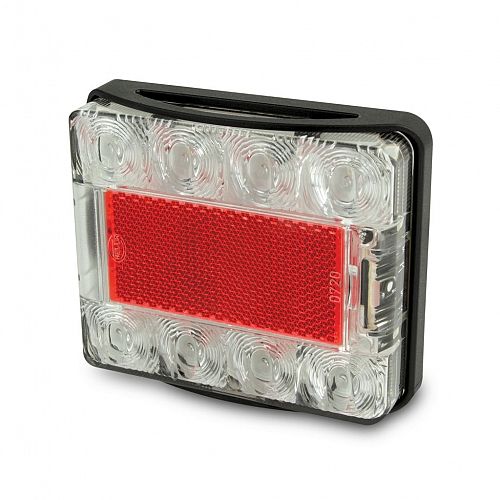

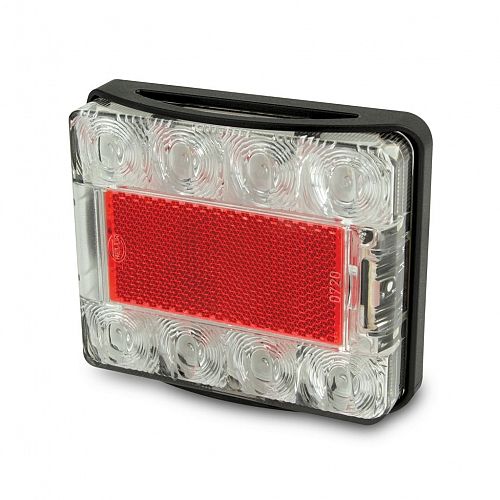

Optic appears clear until illuminated

Mounting

Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 2W

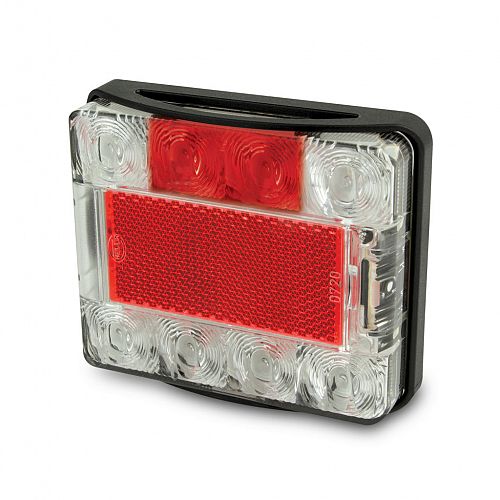

Rear position: 1W

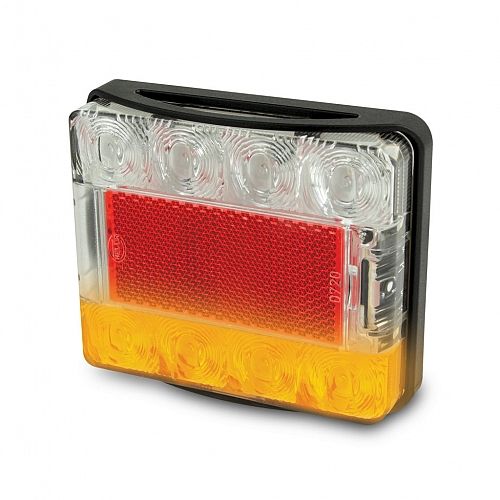

Rear direction indicator: 2W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

2394 Pre-wired with 0.5m of sheathed multi-core cable.
2394-6M Pre-wired with 6m of sheathed multi-core cable.

Spare Part

9.2394.08 Mounting base

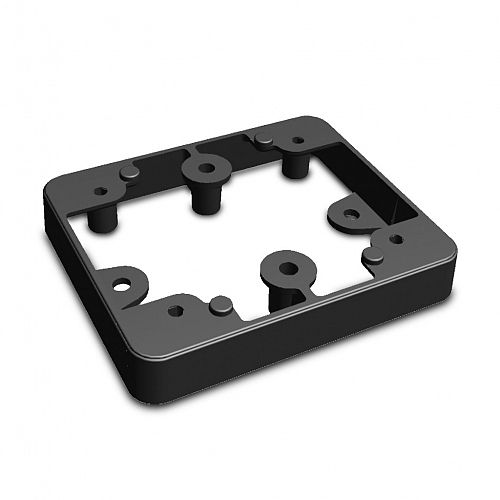

9.2394.09 Mounting spacer (not included)

Lens Material

Grilamid®

Compliance

ADR 6/00: Cat 2a ADR 47/00 ADR 49/00

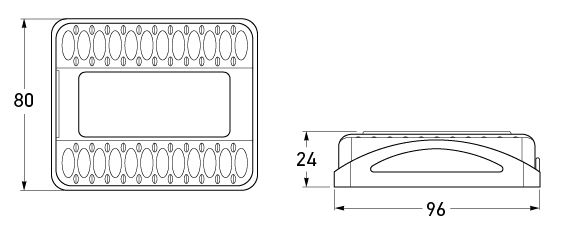

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2394 Instruction Sheet.pdf 313.15 KB
