HELLA

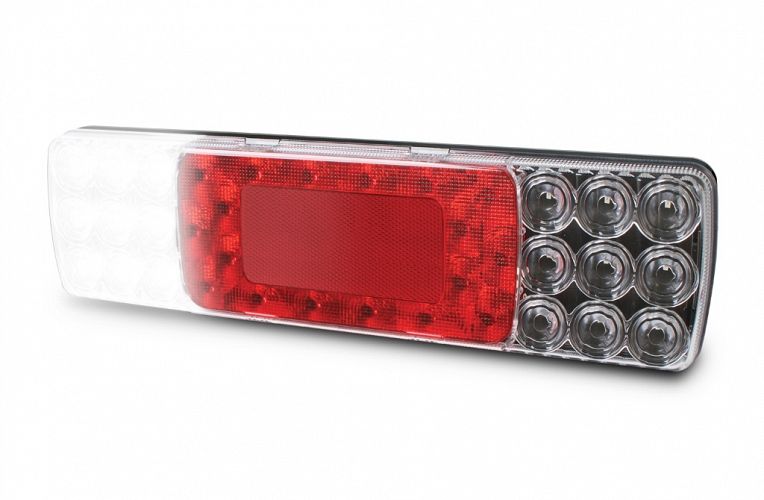

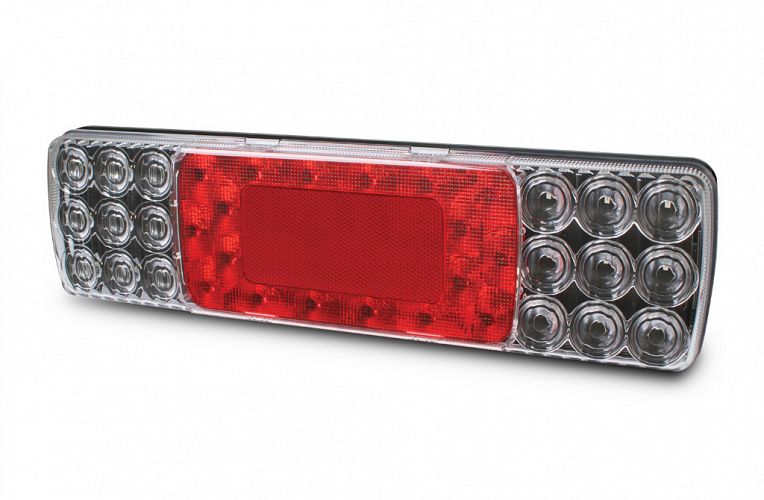

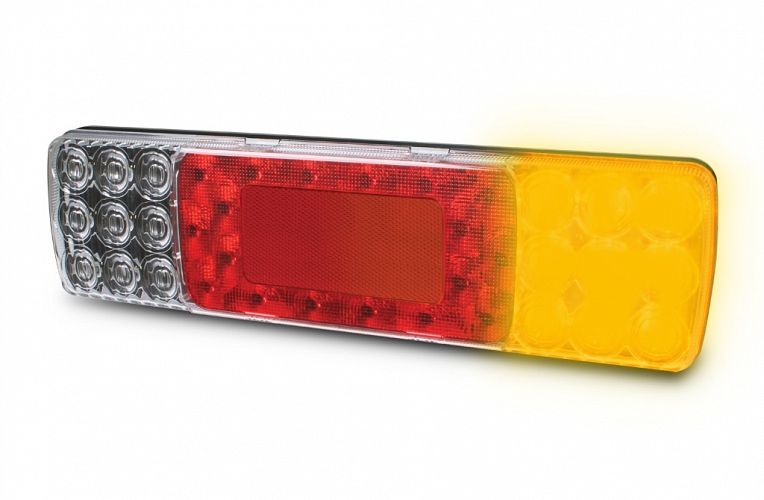

LED Stop/Rear Position/Rear Direction Indicator/Reversing Lamp with Retro Reflector

Form meets function with this LED combination lamp featuring stop, rear position, and rear direction indicator lamps with a central 64cm² red retro reflector.

Suitable for small/medium trucks, utes, buses, commercial vehicles

Easy Installation
Significantly reduced installation time with all rear marker and signal functions combined in a single lamp with a single five core cable

Better Visibility – More Safety
Distinctive lit up appearance on rear position/stop function increases visibility and awareness

Low power consumption
Ensures lowest cost of ownership for the astute transport operator

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Hella Compatibility Solution HCS
Hella P/N 2391 features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

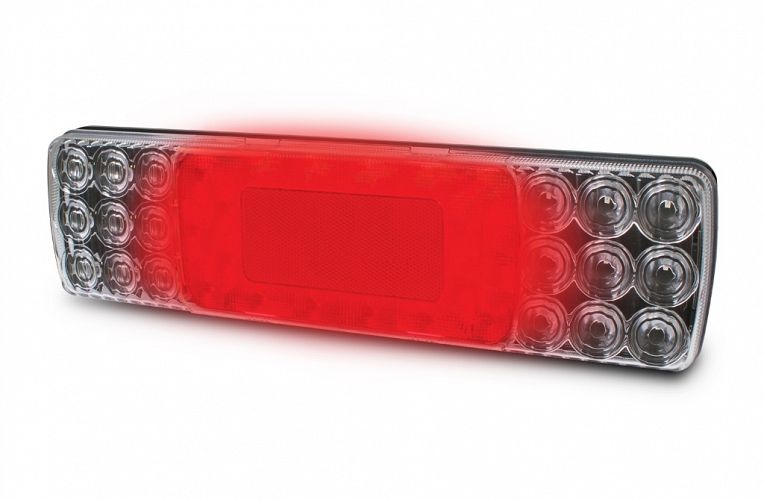

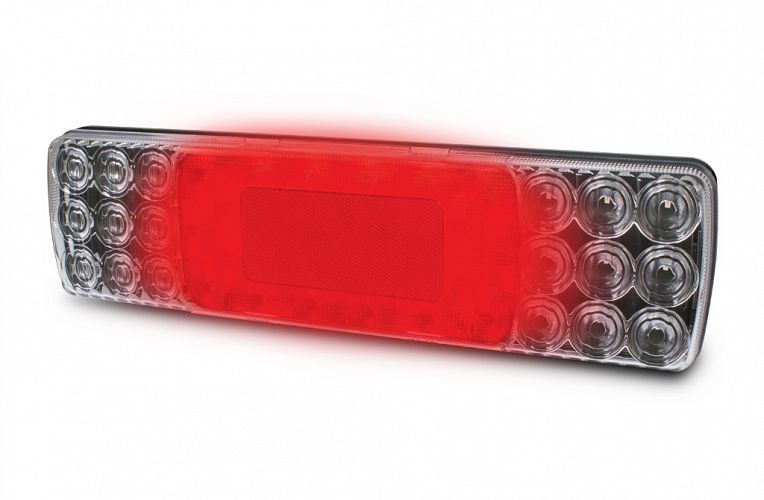

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

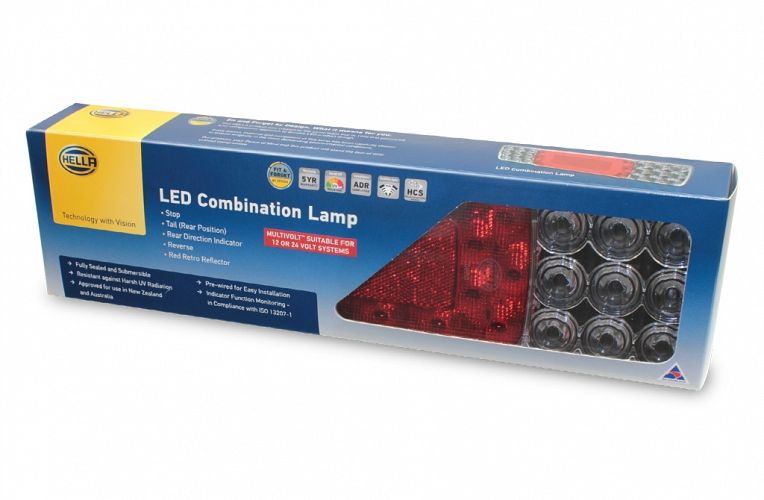

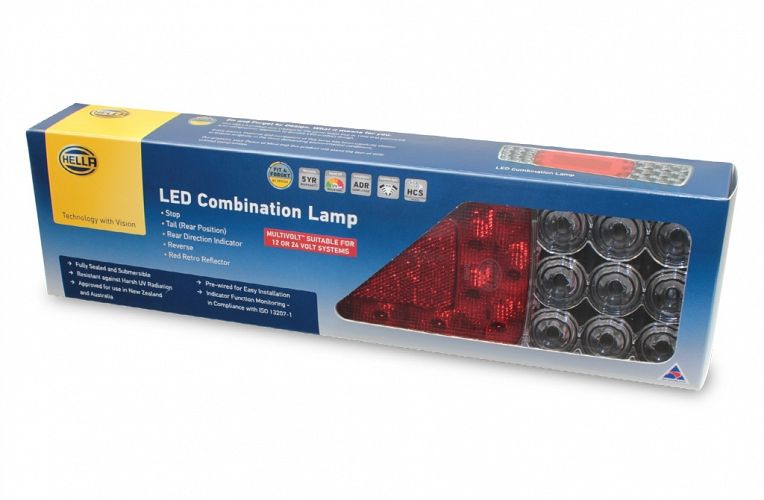

LED Combination Lamp

PART NO: 2VP 980 980-001
Legacy PN: 2391

Specifications

Optics

Indicator and Reverse optics appear clear until illuminated

Mounting

Two bolt surface mount with mounting accessories supplied.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: <2W
Rear direction indicator: 6W
Reverse: 5W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Part

9.2391.08 Mounting pack

Compliance

ADR 1/00  ADR 6/00: Cat 2a  ADR 47/00  ADR 48/00  ADR 49/00  ISO 13207-1   CE

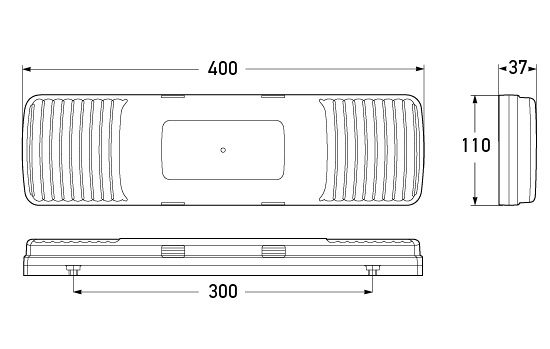

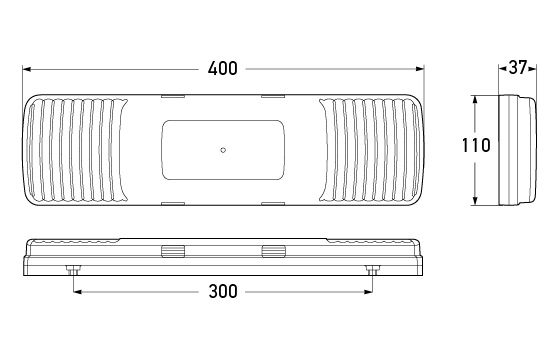

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  958-780-58 Instruction Sheet.pdf 921.19 KB
