HELLA

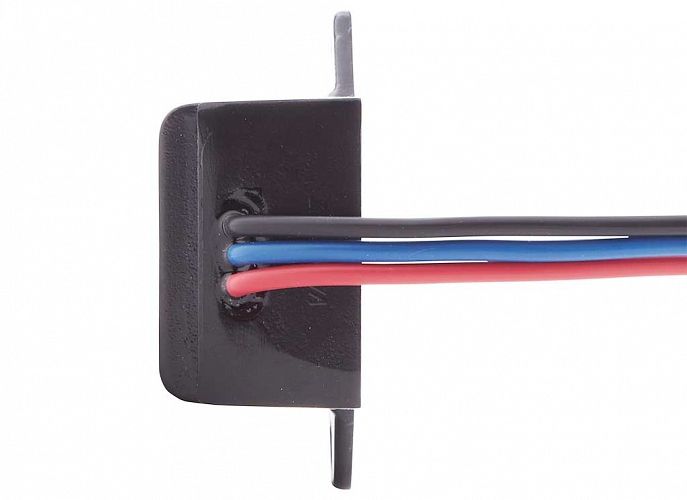

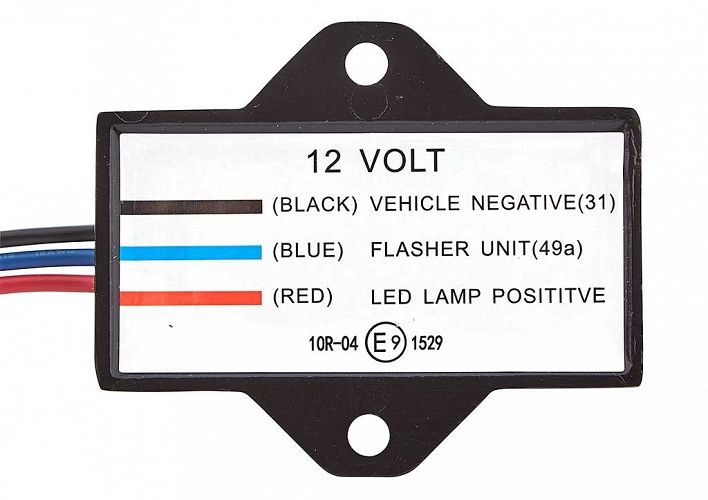

LED Direction Indicator Control Unit

SMART LED INDICATOR LOAD CONTROL

HELLA introduces a smart indicator control unit to maintain compliant indicator flash rates when upgrading traditional 12V / 21W bulb lamps with low power consumption LED lamps. Once the HELLA Indicator Control Unit is installed, (one per bulb lamp) the vehicle’s flasher unit will see normal power consumption and not activate warnings such as a light on the dash or commence fast indicator flashing. The new HELLA unit activates when it receives a nominal current to confirm an LED lamp is connected, it then adds additional current to simulate a 21W bulb. This is a superior solution to the alternative of adding resistors to the indicator circuit. Resistors will continue to draw current, even if an LED lamp or wiring fails and it may not provide the driver with the required lamp failure warning.

• Maintain compliant flash rates with 21W (12V) bulb simulation for LED lamps
• Compatible with a standard flasher unit
• Load detection to retain lamp failure warning
• Complies with current lamp failure warning regulations

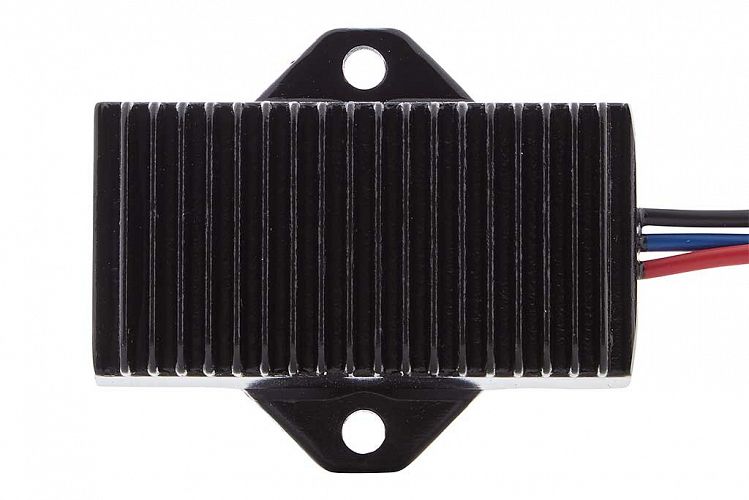

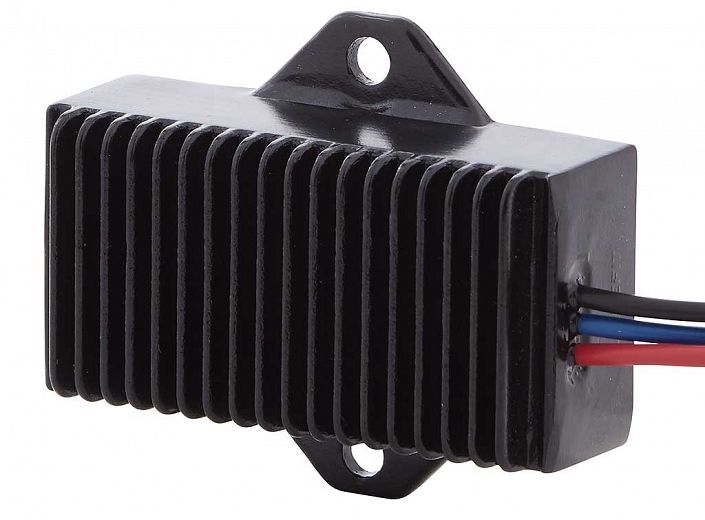

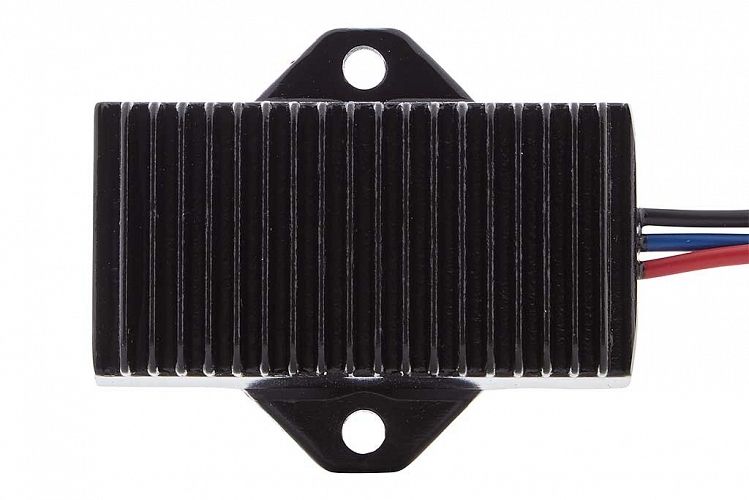

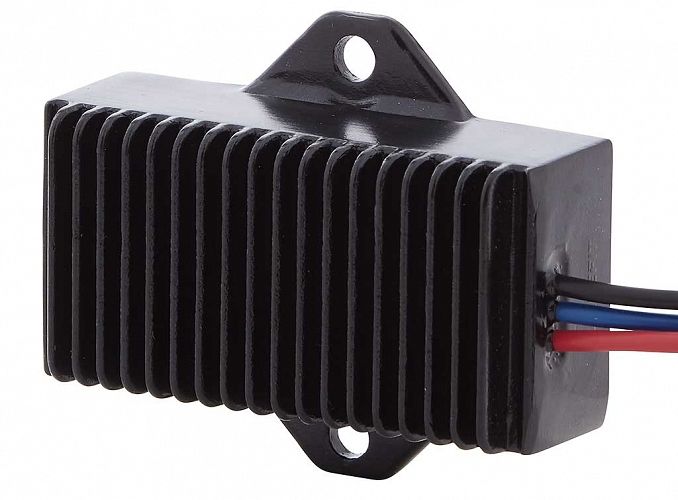

• Heat dissipation through aluminium alloy housing (IP 67)

Rollover/tap the icons below for further details:

Options

LED Direction Indicator Control Unit

PART NO: 5DS 357 030-011

Specifications

Mounting

Two bolt surface mount

Voltage

12V DC

Power Consumption

Simulates a 21W conventional bulb

Material

Aluminium alloy powder coated black

Weight

235g

Protection

IP67 (Protection against dust and temporary water immersion)

Cable Length

300mm

Compliance

ECE-R10 CE

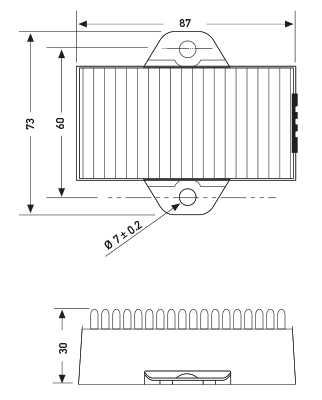

Outline

Documents

Document File Name File Size
  460_963_00_Instruction Sheet.pdf 2.61 MB
