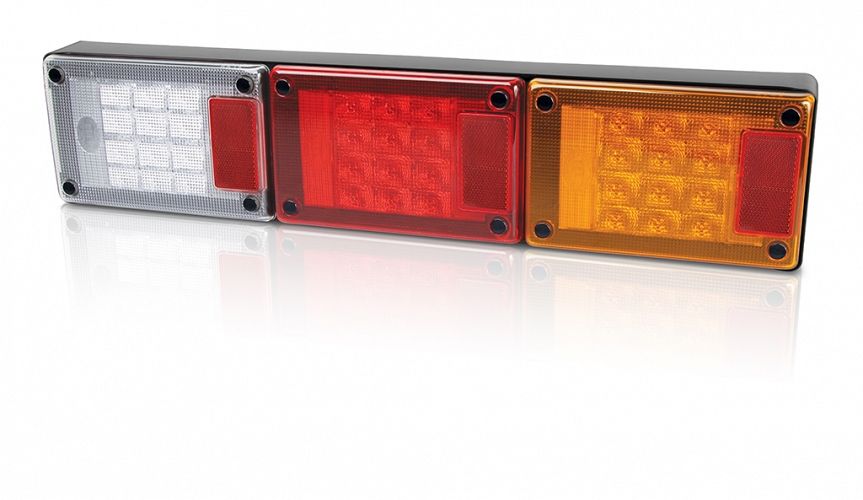

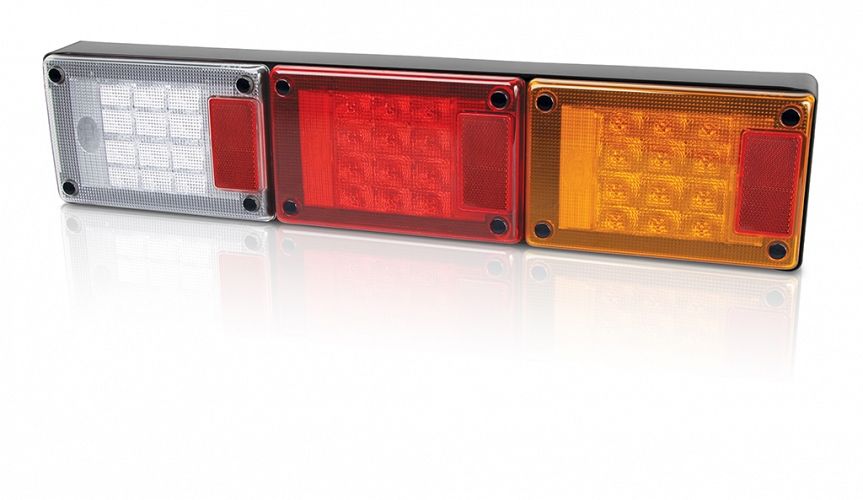

Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Jumbo-S LED stop, rear position, rear direction indicator and reversing lamp with 23cm² red retro reflectors. Lamps are pre-assembled and wired into housing for easy installation. Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

Hella Compatibility Solution HCS
Features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

PART NO: 2VP 980 761-821
Legacy PN: 2431CS

Specifications

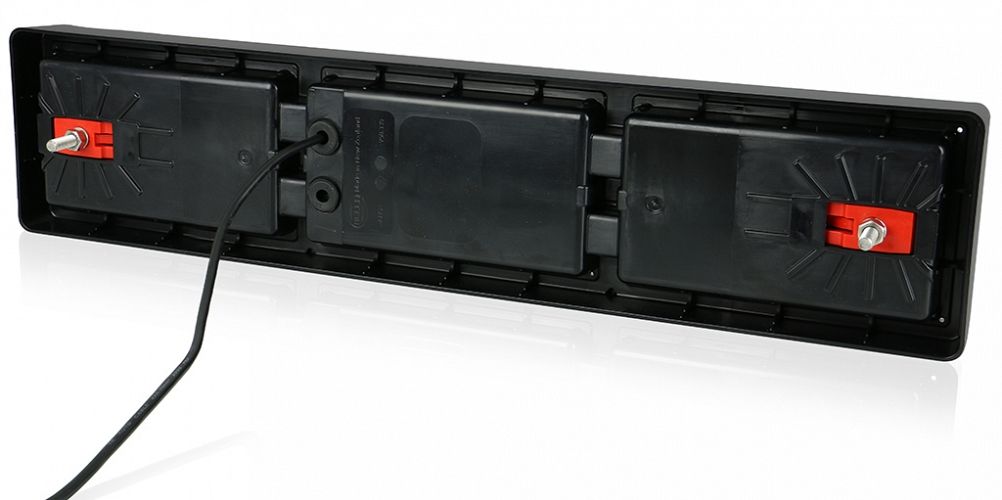

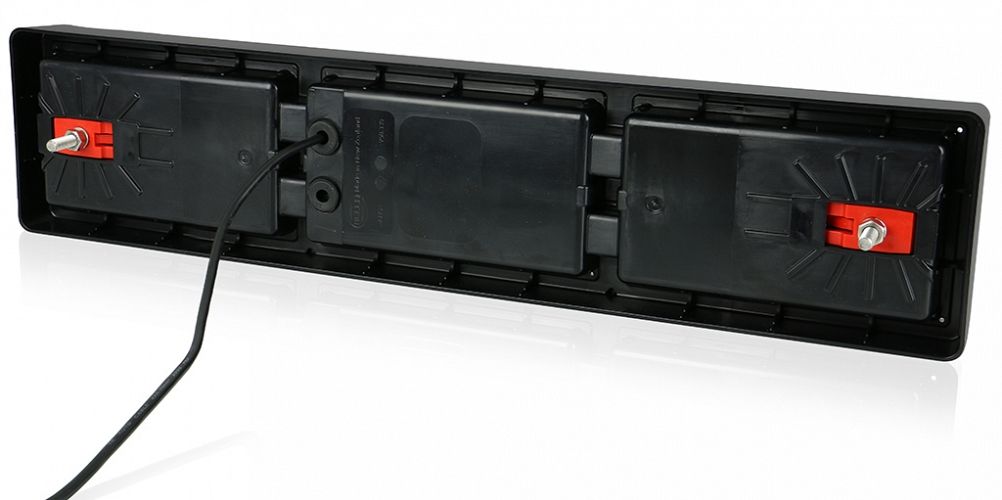

Mounting

Surface mount with mounting bolts supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: 1W
Rear direction indicator: 4W
Reversing: 4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2m of sheathed multi-core cable.

Spare Part

2161-CS LED Rear Direction Indicator Lamp
2361 LED Stop / Rear Position Lamp
1461 LED Reversing Lamp

Compliance

ADR 1/00 ADR 6/00: Cat 2a ADR 47/00 ADR 49/00 ISO 13207-1

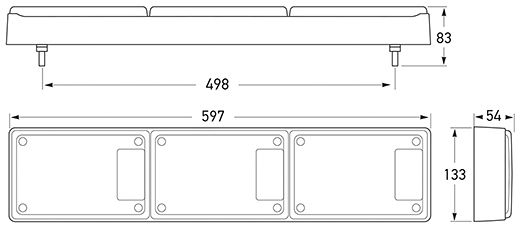

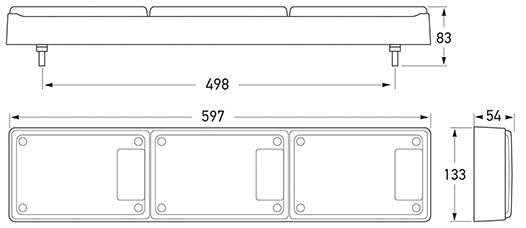

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2VP 980 761-821_Instruc_2431-CS_Jumbo-S_3Chambr.pdf 824.71 KB
