HELLA

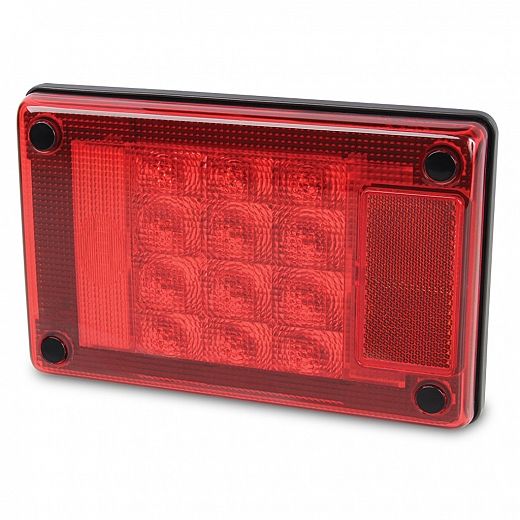

Jumbo-S LED Stop/Rear Position Lamp

Jumbo-S LED stop, rear position lamp with inbuilt 23cm² red retro reflector, featuring Enhanced Definition Technology (EDT) for the stop signal function.

Low profile design allows surface mounting with no additional housing.
Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

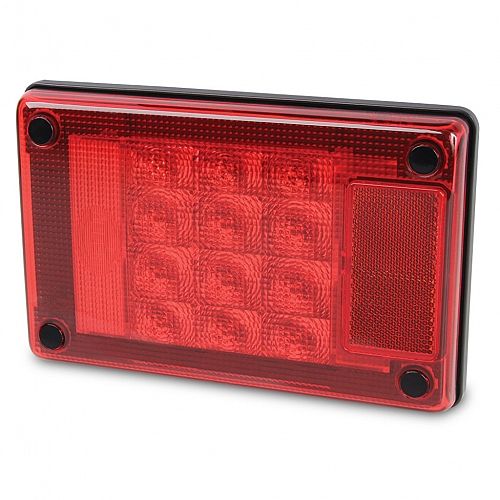

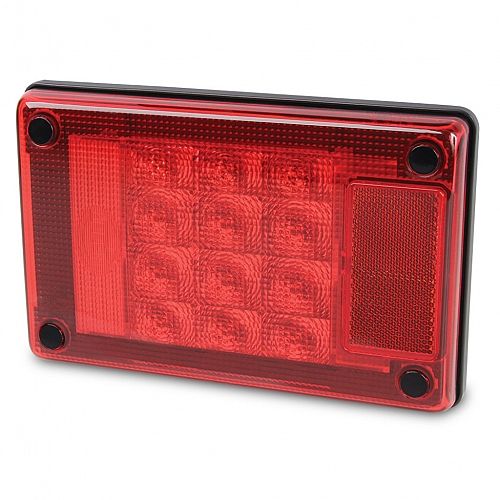

Jumbo-S LED Stop/ Rear Position Lamp

Jumbo-S LED Stop/ Rear Position Lamp

2361

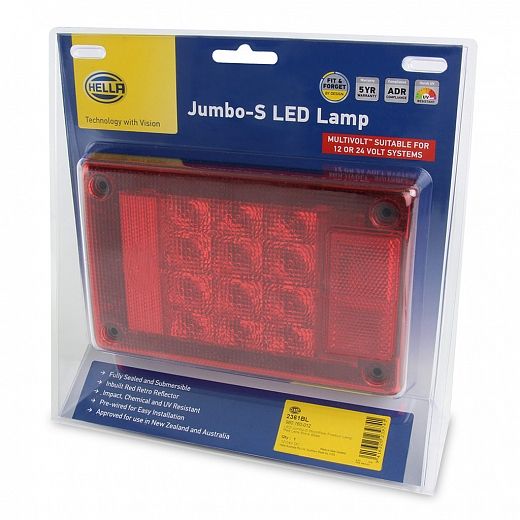

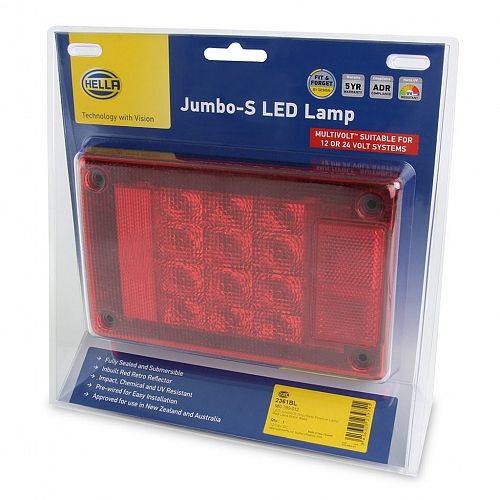

Jumbo-S LED Stop/ Rear Position Lamp - Blister pack

Jumbo-S LED Stop/ Rear Position Lamp - Blister pack

2361-BL

Specifications

Mounting

Surface mount with mounting gasket and screws supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: 1W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 47/00 ADR 49/00

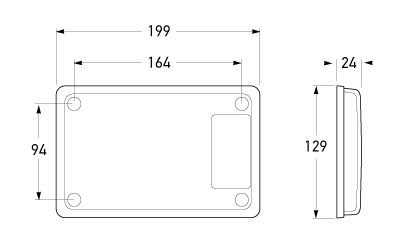

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2361 Instruction Sheet.pdf 304.76 KB
