HELLA

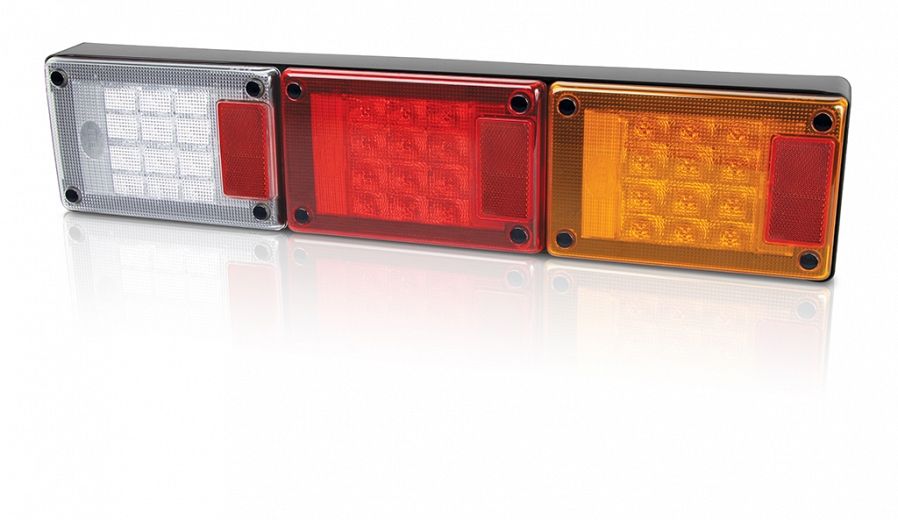

Jumbo-S LED Triple Module with DT Connector Stop/Rear Position/Indicator/Reverse Lamp

Based on the classic original HELLA design, the new Jumbo-S LED Triple Module now has additional improvements to ensure it remains the most reliable and most popular lamp cluster on the market.

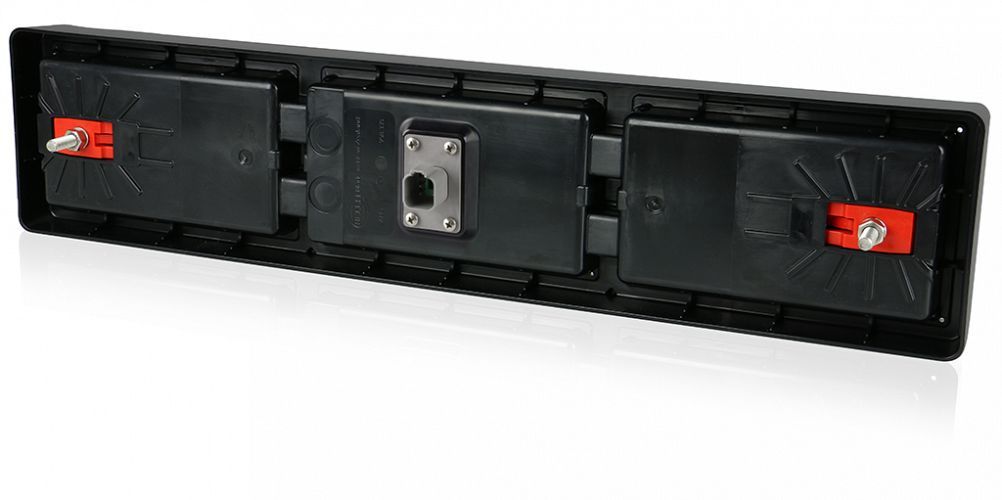

The inclusion of a built-in Deutsch 6 pole socket streamlines the installation process and doubly improves compatibility with the HELLA LED Lamp Distribution Box. An innovative 2 bolt mounting mechanism has also been added, that significantly improves the strength in this critical area.

The indicator unit features HCS Technology*, patented indicator failure control technology which allows seamless integration of LED lights and compatibility with traditional bulb based failure detection systems.

Proudly designed and manufactured in New Zealand, with a 5 year warranty.

➔ Easy wiring connection from centre of body (6 pole DT socket)
➔ Large design for excellent visibility on heavy vehicles
➔ HCS Technology* compatibile with ISO 13207-1 & 24V HCS Flasher Units
➔ Easy mounting (2 bolts)
➔ 5 year warranty

*HCS Technology – HELLA Compatibility Solution
These lamps feature HCS Technology which is a patented indicator failure control technology. Designed to ISO 13207-1 International Standard, they provide compatibility with 24V DC commercial vehicle indicator failure detection systems, allowing seamless communication with HELLA HCS control flasher units or modern European trucks with body controllers compliant with the ISO 13207-1 standard.

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

Jumbo-S LED Triple Module with DT Connector Stop/Rear Position/Indicator/Reverse Lamp

PART NO: 2VP 980 761-951
Legacy PN: 2431DTCS

Specifications

Mounting

Surface mount with mounting bolts supplied
Suitable for horizontal or vertical mounting

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems

Power Consumption

Stop: 5W
Rear position: 1W
Rear direction indicator: 4W
Reversing: 4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Spare Part

9BG 958 338-001 Triple Chamber Housing with cable grommet exit
9BG 958 338-011 Triple Chamber Housing with ø16.6mm hole to suit M16 conduit gland
9BG 958 338-021 Triple Chamber Housing to suit flange mount DT connector
2161-CS LED Rear Direction Indicator Lamp
2361 LED Stop / Rear Position Lamp
1461 LED Reversing Lamp

Compliance

ADR 1/00 ADR 6/00: Cat 2a ADR 47/00 ADR 49/00 ISO 13207-1 RCM

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2VP 980 761-951_2431-DTCS_Instr_Jumbo-S_STIRR.pdf 1 015.90 KB
