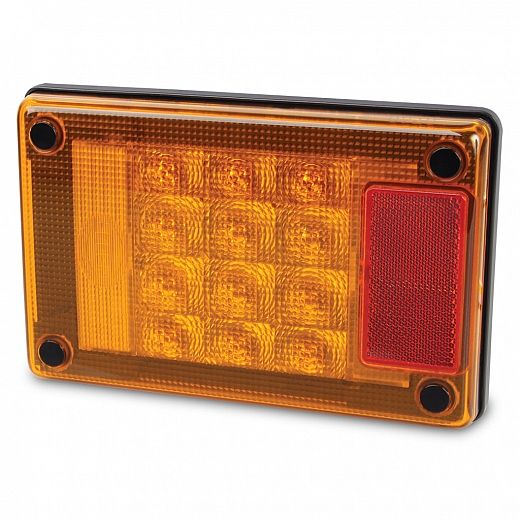

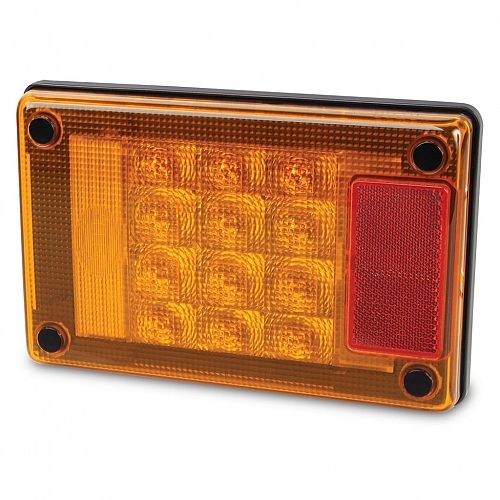

Jumbo-S LED Rear Direction Indicator Lamp

Jumbo-S LED rear direction indicator lamp with inbuilt 23cm² red retro reflector. Low profile design allows surface mounting with no additional housing. Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

Hella Compatibility Solution HCS
Hella P/N 2161-CS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

Jumbo-S LED Rear Direction Indicator Lamp

PART NO: 2BR 980 761-051
Legacy PN: 2161

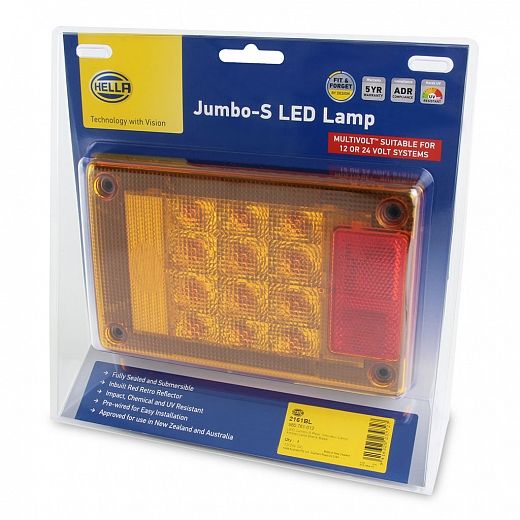

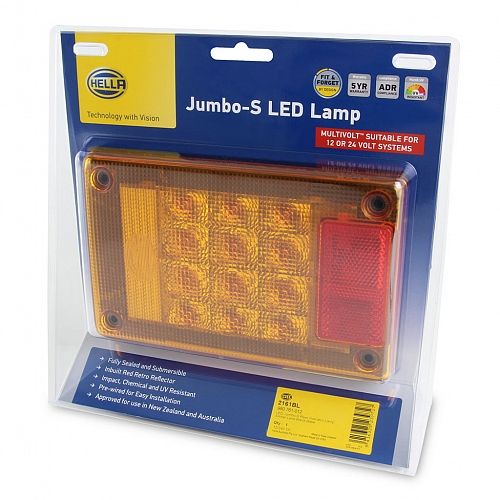

Jumbo-S LED Rear Direction Indicator Lamp - Blister pack

PART NO: 2BR 980 761-052
Legacy PN: 2161BL

Jumbo-S LED Rear Direction Indicator Lamp with HCS Technology

PART NO: 2BR 980 761-061
Legacy PN: 2161CS

Specifications

Mounting

Surface mount with mounting gasket and screws supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 6/00: Cat 2a ADR 47/00 ISO 13207-1 (2161-CS only)

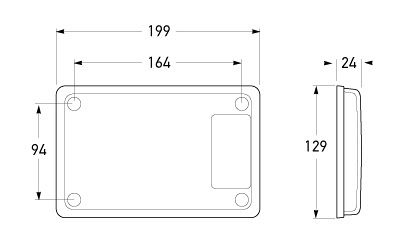

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2BR 980 761-0xx_Instr_2161-CS Jumbo-S_Rear_Indi.pdf 333.35 KB
  2BR 980 761-0xx_Instr_2161_Jumbo-S Rear_Indic.pdf 306.40 KB
