HELLA

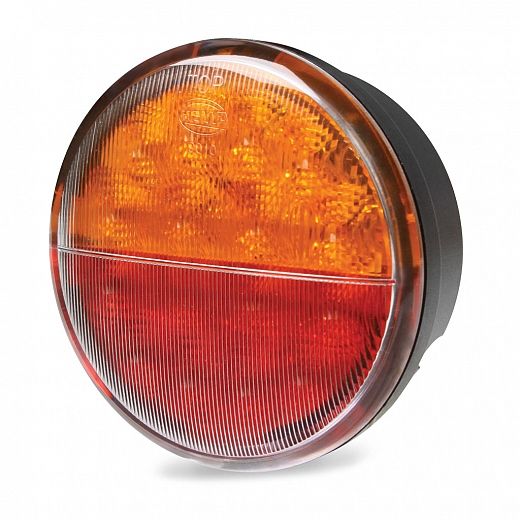

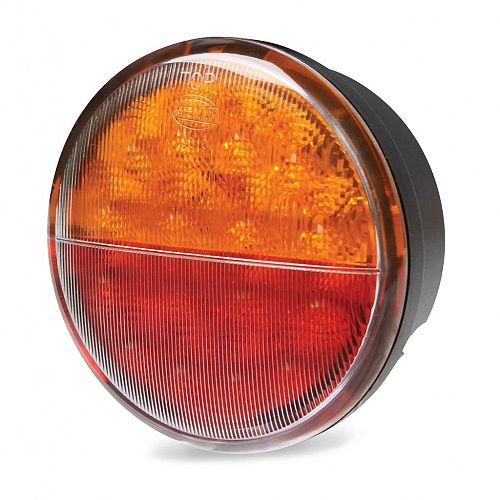

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp

Best of both worlds: Compact, low profile LED lamp with stop, rear position and rear direction indicator function.

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp

2399

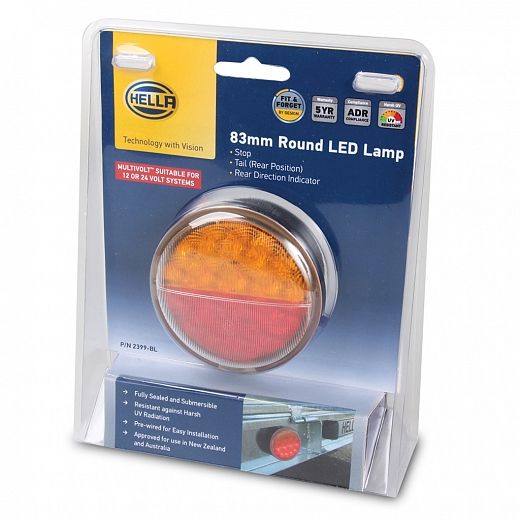

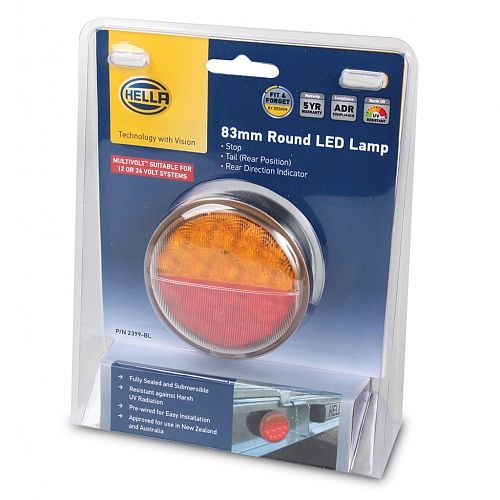

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp - Blister Pack

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp - Blister Pack

2399-BL
83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp - Bulk Pack 10

83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp - Bulk Pack 10

2399-BULK

Specifications

Mounting

Flush mount. Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 3W
Rear position: 1W
Rear direction indicator: 3W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.
Bulk pack pre-wired with 6m of sheathed multi-core cable.

Compliance

ADR 6/00: Cat 2a ADR 49/00 CE
E9 1538 ECE R6/01 ECE R7/02

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2399 Instruction Sheet.pdf 286.76 KB
