HELLA

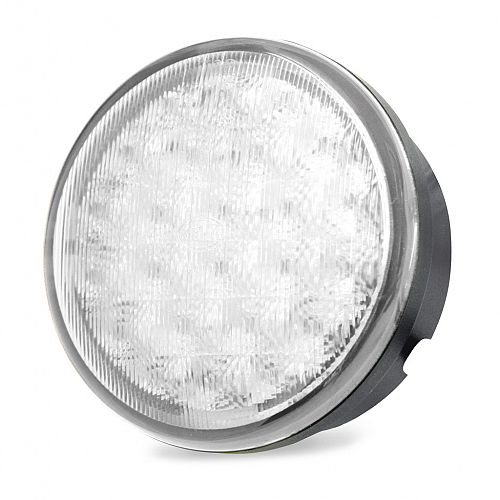

83mm Round LED Reversing Lamp

Compact, low profile LED reversing lamp with polycarbonate lens.

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Reversing Lamp

83mm Round LED Reversing Lamp

1490

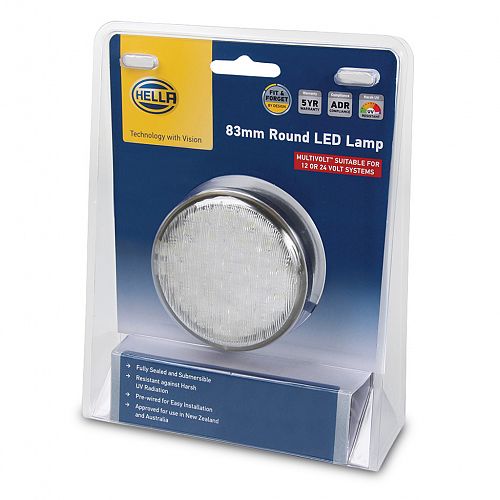

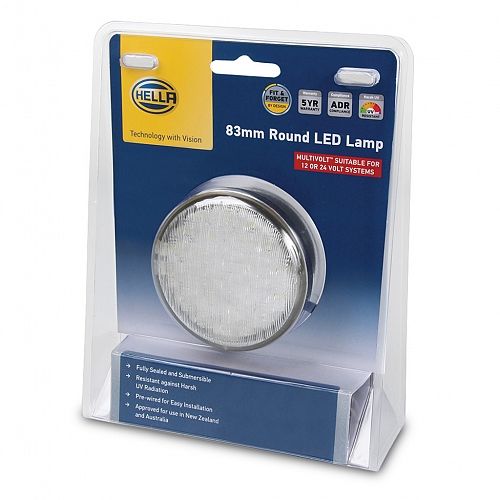

83mm Round LED Reversing Lamp - Blister Pack

83mm Round LED Reversing Lamp - Blister Pack

1490-BL
83mm Round LED Reversing Lamp - Bulk Pack 10

83mm Round LED Reversing Lamp - Bulk Pack 10

1490-BULK

Specifications

Mounting

Flush Mount. Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

ADR 1/00 E4 11391 ECE R23/00

Note

Reversing lamps are not designed for continuous operation.

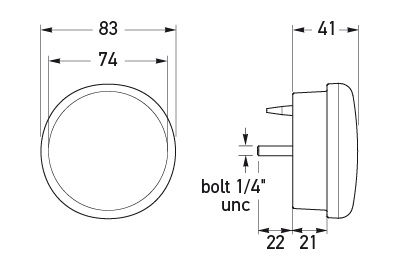

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  1490 Instruction Sheet.pdf 289.40 KB
