CircLED 90 LED Combination lamp - Daytime Running Light/Position/Direction Indicator

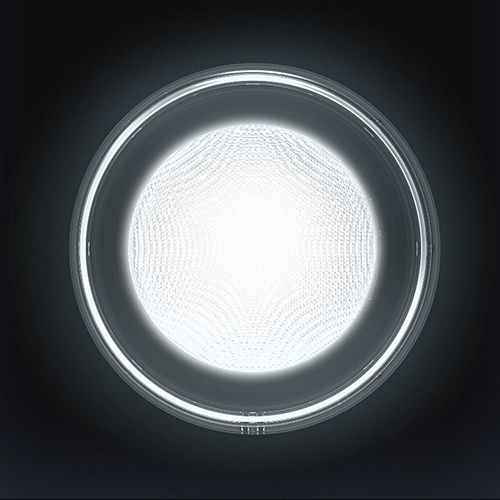

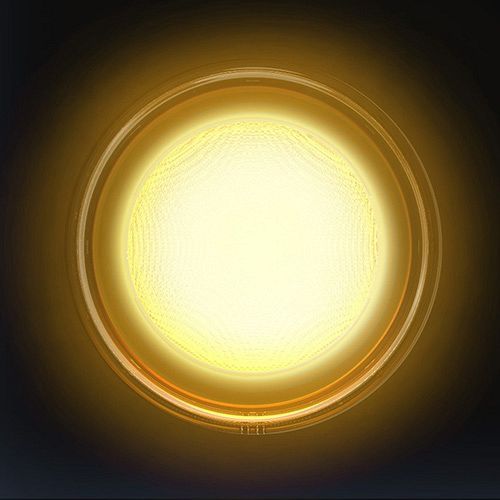

The new CircLED 90 combination lamp from HELLA combines three LED light functions in one module: daytime running light, position light and direction indicator light.

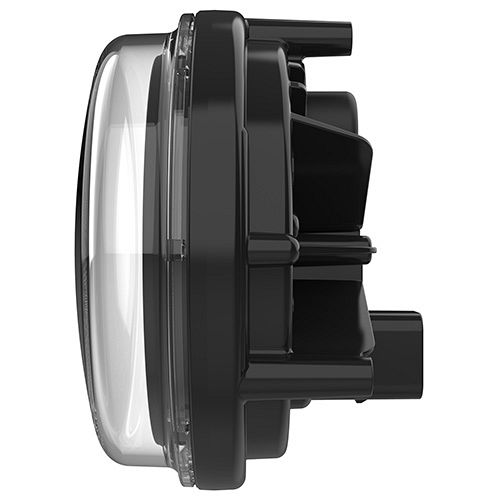

Thanks to the compact design (90 mm) and low installation depth, the multi-function lamp can be easily mounted in the vehicle environment using an integrated screw dome. As required, it can also be combined with any HELLA front lighting product.

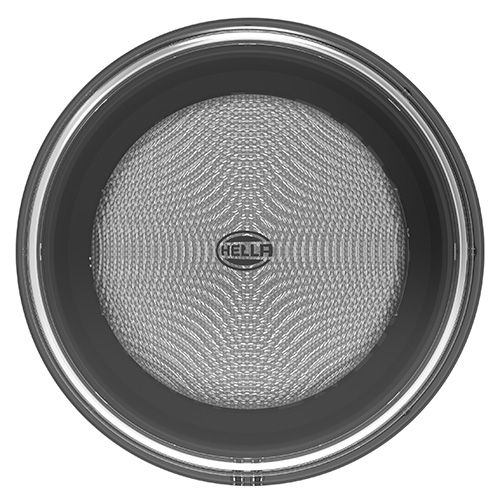

The optically floating lens embedded in a black ring gives the module a unique appearance. At the same time, the homogeneous light signature creates a modern and elegant front design.

The CircLED 90 is suitable for a wide range of applications with different requirements. The four integrated LEDs deliver maximum efficiency in a small space and offer a long service life.

Rated IP 5K4K and IP 5K9K, the robust and lightweight module is waterproof, dustproof and resistant to high-pressure jet cleaning.



To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

CircLED 90 LED Combination Lamp

PART NO: 2BE 016 540-011

Specifications

Light Function

Daytime running light, Position light, Direction indicator light

Mounting

Screw mounting

Operating Voltage

Multi-voltage (9–32 V). 12V or 24V DC Nominal

Power Consumption

Daytime Running Light: 5W
Position Light: 1.5W
Direction Indicator Light: 5W

Material

Housing: Polycarbonate
Lens: Polycarbonate

Temperature range

-40°C to +60°C

Connection

DT Connector

Protection

Reverse polarity and transient spike circuit protection
IP 5K4K     (Protection against dust and high-pressure water splash)
IP 5K9K   (Protection against dust and high-pressure/steam jet cleaning)

Compliance

ECE, FMVSS 108, CCC CISPR 25 Class 5

Outline

All dimensions in mm
All dimensions in mm

Documents

Document File Name File Size
  Product Release CircLED-90_FORVIA_HELLA_EN.pdf 886.40 KB
