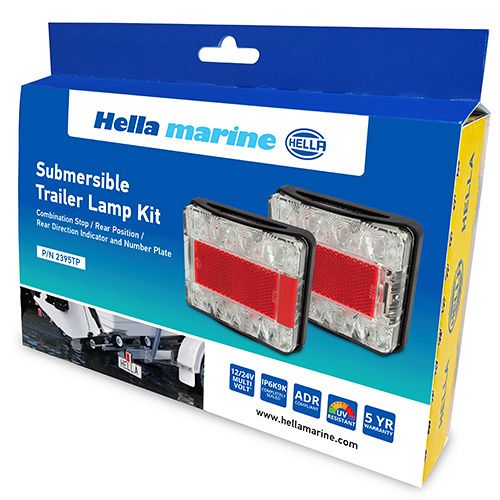

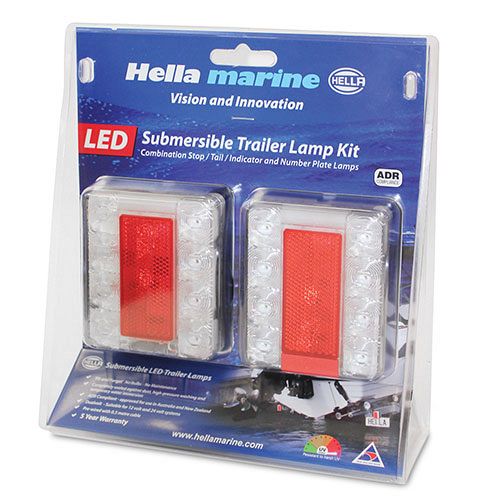

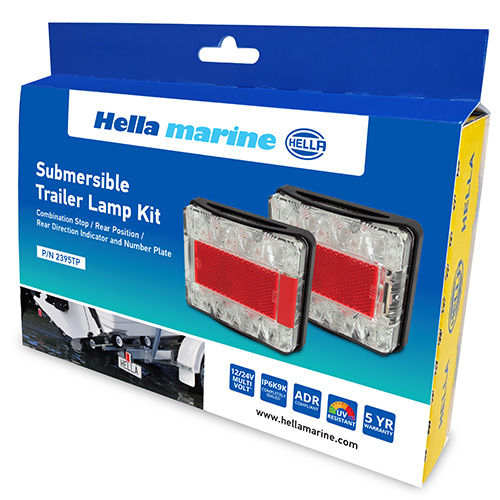

LED Combination Lamp Trailer Kit

HELLA's LED Combination Trailer Lighting Kit offers fully sealed lamps, complete wiring run ingress protection, and a ‘click-in’ mounting base, making for the ultimate easy install trailer lighting solution.

Suitable for trailers, Utes, and small trucks, the combination trailer light kit provides convenient installation, with a base featuring flexible and easy mounting, which the light body simply clicks into.

Built with impact and shock resistant Grilamid® lenses, UV and corrosion resistant materials, and designed to withstand high-pressure washing and temporary immersion, these lights deliver long service life and true “Fit and Forget” reliability. The lights are ADR compliant, and road legal in New Zealand.

Kit Contains:

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

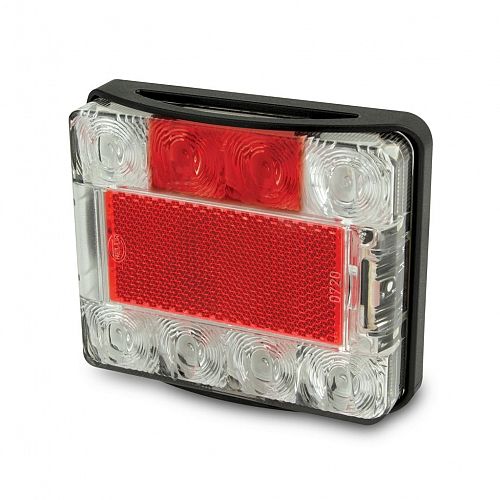

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Combination Lamp Trailer Kit

LED Combination Lamp Trailer Kit

PART NO: 2VB 980 720-801
Legacy PN: 2395TP

Add to favourites

Specifications

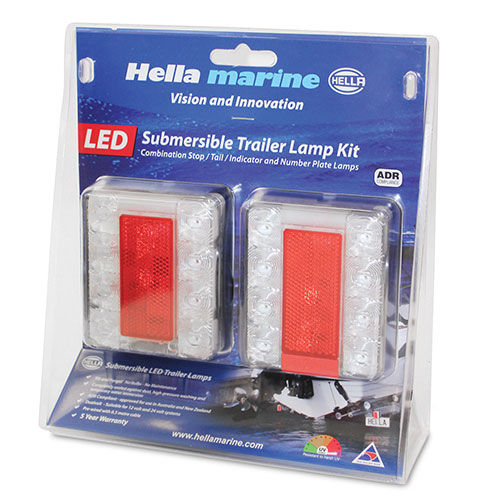

Kit Contents

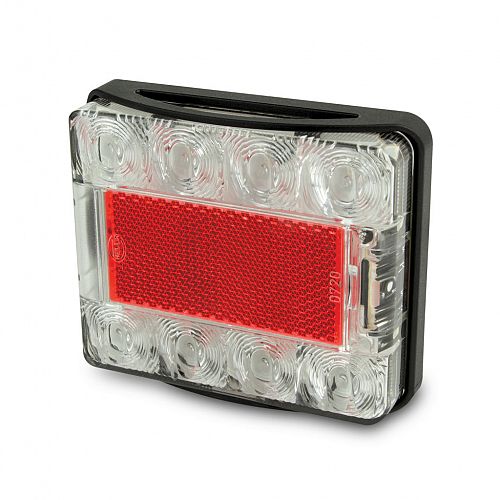

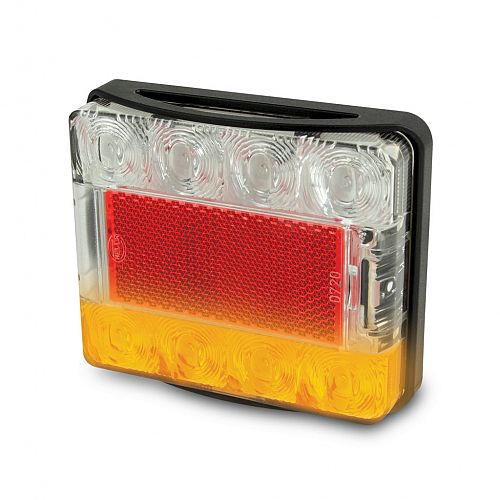

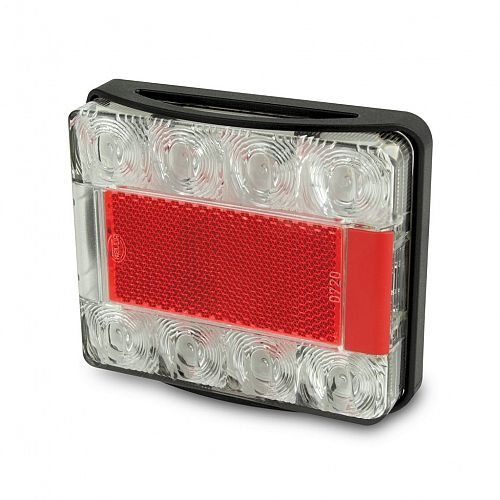

1x 2VA 980 720-071 Stop/rear position/rear direction indicator lamp with reflex reflector.

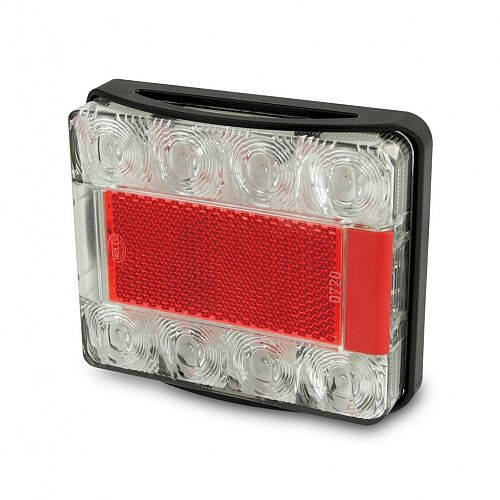

1x 2VB 980 720-561 Stop/rear position/rear direction indicator/number plate lamp function
with reflex reflector.
8 pcs 8KW 980 302-132 Crimp connector with heat shrink insulation.

Optics

Optics appear clear until illuminated

Mounting

Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption
Stop: 2W
Rear position: 1W
Rear position/Number Plate: 1W
Rear direction indicator: 2W

Protection
Reverse polarity and transient spike circuit protection.
IP6K7     (Protection against dust and temporary water immersion)
IP6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Each lamp supplied with 0.5m of sheathed multi-core cable with open ends

Lens Material

Grilamid®

Compliance
ADR 6/00: Cat 2a ADR 47/00 ADR 48/00 ADR 49/00

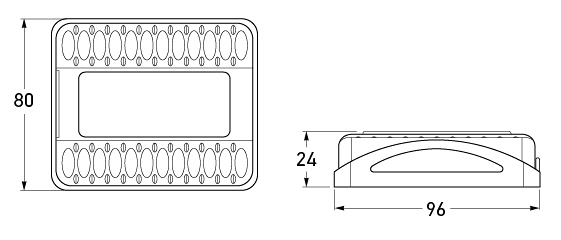

Outline

All dimensions in mm
All dimensions in mm
