Revolving Beacon Rotaflex - Flexible Pipe Mount

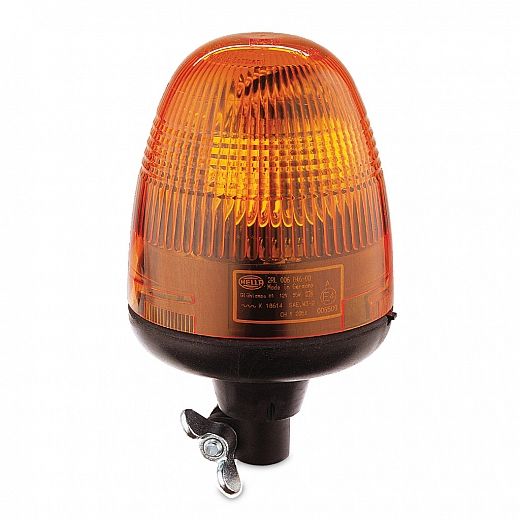

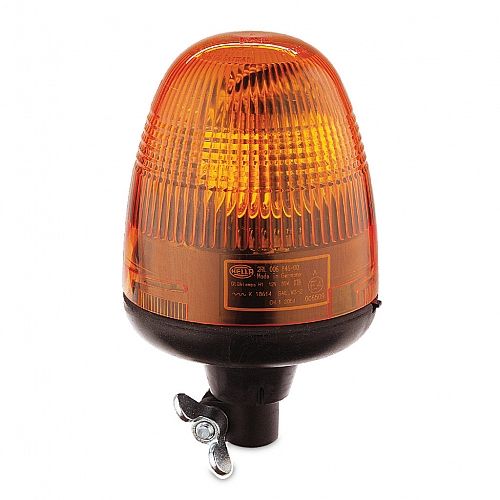

Rotaflex revolving beacon with polycarbonate lens and flexible rubber base.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Bulb Included

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

Flexible Version

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

Options

Revolving Beacon Rotaflex - Amber - 12 Volt

Revolving Beacon Rotaflex - Amber - 12 Volt

1730
Revolving Beacon Rotaflex - Amber - 24 Volt

Revolving Beacon Rotaflex - Amber - 24 Volt

1731

Specifications

Mounting

Mounting Tubular base incorporates connection plug.
Must be used in conjunction with connecting piece P/N 8007, 8007FM, 8007RA or 8008

Power Consumption

12V 55W
24V 70W

Rotation

160rpm

RF Suppression

Conducted Class 5 (CISPR25).

Bulbs to Suit

12V C1255
24V C2470

Protection

IP 5K4K (Protection against dust and water splashing with increased pressure)
IP X9K (Protection against high-pressure/steam jet cleaning)

Spare Parts

9.1730.01 Amber polycarbonate lens
9.1732.52 Motor 12V
9.1732.54 Motor 24V
9.1730.23 Reflector for Rotaflex
8007 Connecting piece
8007RA Connecting piece - right angle mount
8007FM Connecting piece - flat mount
8008 Connecting piece - threaded

Compliance

R65/00 E1 6509 e1 03 2181

Outline

All dimensions in mm.
All dimensions in mm.
