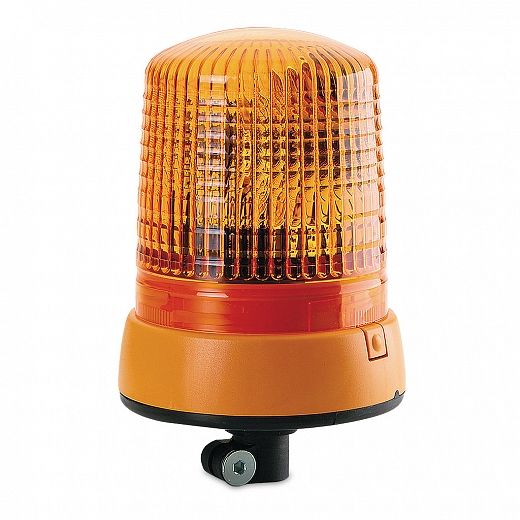

Revolving Beacon KL 7000 - Flexibase Mount

KL 7000 high performance revolving beacon with light values well above the minimum requirements. All KL 7000 beacons can be operated on 12 or 24V by changing the bulb. The halogen bulb is replaced from the rear of the reflector eliminating the need to touch the highly polished reflector surface. A twin belt drive ensures a smooth and quiet operation. Accessory colour lenses available in Blue, Red and Amber.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

24 Volt Bulb Included

Options

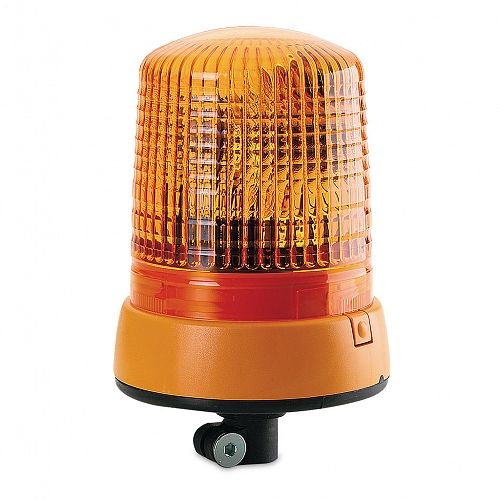

Revolving Beacon KL 7000 - Amber - 12/24 Volt - Flexibase Mount

Revolving Beacon KL 7000 - Amber - 12/24 Volt - Flexibase Mount

1735

Specifications

Current Draw

12V 5.5A
24V 3.5A

Power Consumption

12V 55W
24V 70W

Rotation

160rpm

RF Suppression

Conducted Class 5 (CISPR25).

Protection

IP 5K4K (Protection against dust and water splashing with increased pressure)
IP X9K (Protection against high-pressure/steam jet cleaning)

Bulbs to Suit

12V C1255
24V C2470

Spare Parts

9.1726.01 Blue lens
9.1727.01 Red lens
9.1728.01 Amber lens
9.1737.91 Two drive belts
9.1726.23 Reflector assembly
9.1726.52 Motor assembly 12/24V
8007 Connecting piece
8007RA Connecting piece - right angle mount
8007FM Connecting piece - flat mount
8008 Connecting piece - threaded

Compliance

R65/00 E1 1241 e1 03 1740

Outline

All dimensions in mm.
All dimensions in mm.
