HELLA

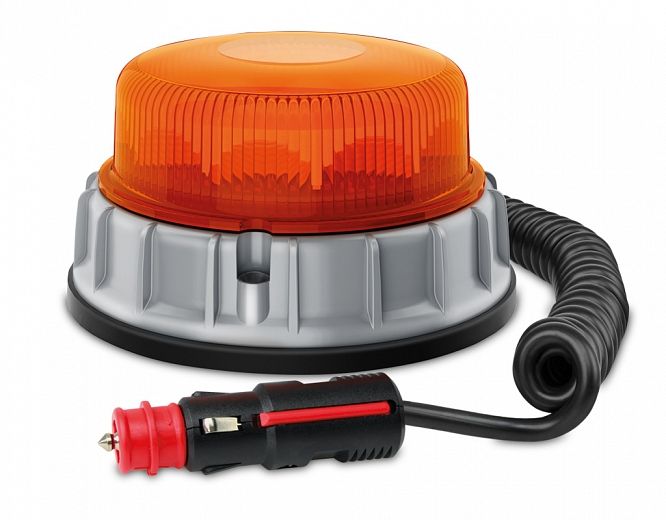

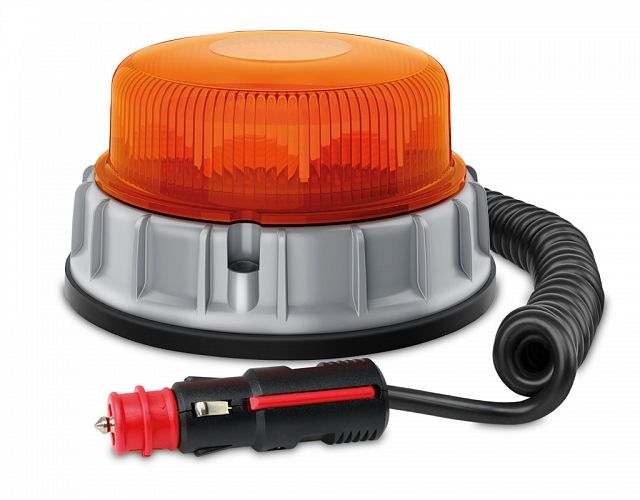

K-LED 2 Beacon - Magnetic Mount

K-LED low profile beacons are the ideal choice wherever beacons risk interference with radio communications. Featuring 20 high power LEDs providing high light output for best visibility. An automatic day/night sensor adjusts brightness to avoid glare discomfort at night. 14 different flashing and 2 rotating patterns.
Comes with spiral cable and accessory power plug.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

K-LED 2 Beacon - Magnetic Mount - Amber

PART NO: 2XD 011 557-301
Legacy PN: 1614MAG

Specifications

Mounting

Magnetic mounting on horizontal surfaces.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

30W max.

Protection

Reverse polarity and Transient Spike Circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)

Flash Rate

Simulated rotation 120rpm (2.00Hz)

Compliance

ECE R65 TA2 ECE R65 TR2 SAE J 845 Class 1 CISPR25 Class 5

Caution

Mounting of Magnetic Base Revolving Lamps. Due to HELLA being unable to control the condition of the mounting surface or the potential forces that may occur during deceleration, fitment of warning lamps with a magnetic base cannot be recommended for use on moving vehicles.

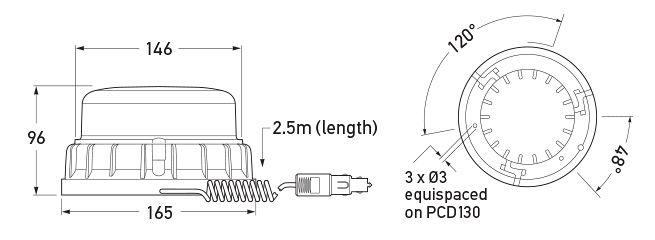

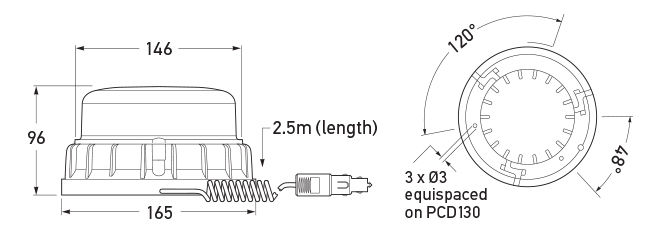

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  460_909-25_IS_K-LED_2_Beacon.pdf 4.92 MB
