HELLA

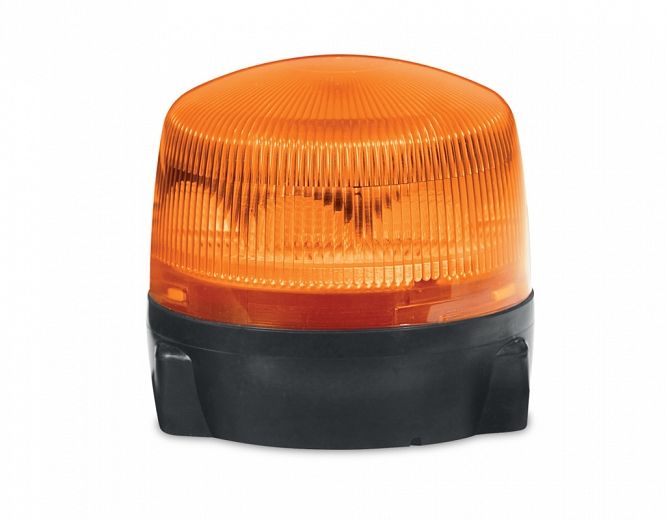

RotaLED Beacon

RotaLED Beacon, with the latest LED technology provides an optimum signal image with low power consumption. The combination of thermal management and optics in one module makes a remarkably compact design possible. Impact and dirt resistant Polycarbonate lens.

• Rotating LED light function.
• Long service life.
• Maintenance free.
• Low current consumption, high efficiency.
• Impact-resistant smooth polycarbonate dome.
• ECE R65 compliant.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

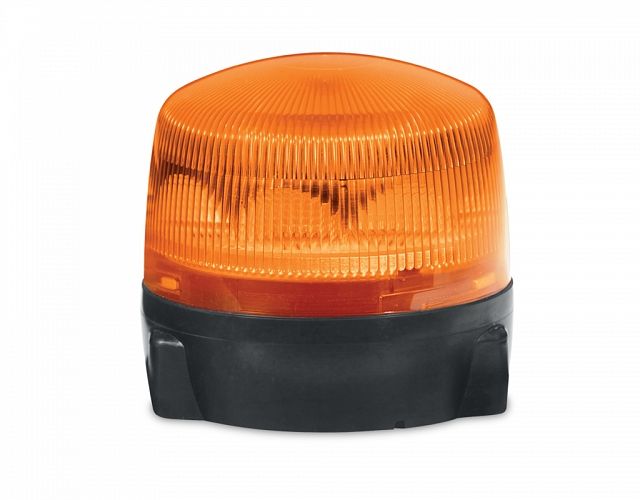

RotaLED Beacon - Fixed Mount - Amber

RotaLED Beacon - Fixed Mount - Amber

PART NO: 2RL 010 979-001
Legacy PN: 1611

Add to favourites

Specifications

Mounting

Fixed mount.

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 32 volts.

Power Consumption

10W.

Protection
IP5KX (Protection against dust)
IPX4K (Protection against splashing water from all directions. With higher pressure)
IPX9K (Protection against high-pressure cleaner, specific for road vehicles)

Flash Rate

120-133 rpm simulated (2.0-2.2Hz)

Compliance
ECE R10 ECE R65 TA1 CISPR25 Power Controlled Class 5

Outline

All dimensions in mm.
All dimensions in mm.
