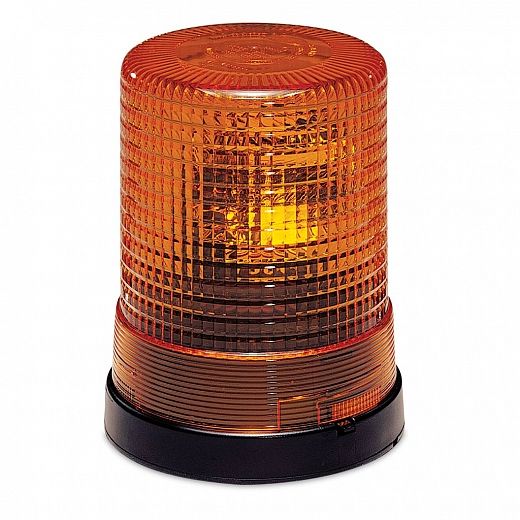

Revolving Beacon KL 700

KL 700 high performance revolving beacon. The halogen bulb is replaced from the rear of the reflector eliminating the need to touch the highly polished reflector surface. Twin belt drive ensures a smooth and quiet operation. Accessory colour lenses available in Amber, Red, Blue and Green.

To find a HELLA reseller near you, click here.

Optional magnetic mounting kit Hella P/N 1653

Rollover/tap the icons below for further details:

Bulb Included

Options

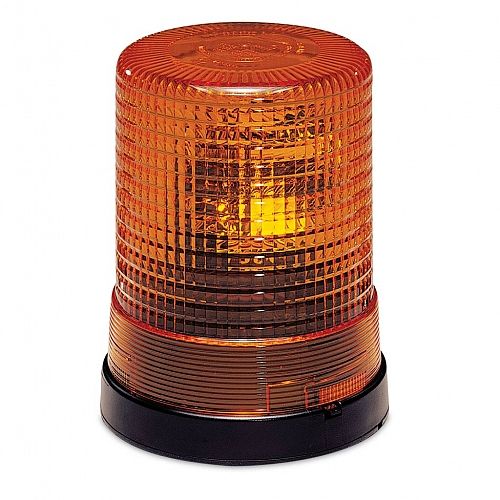

Revolving Beacon KL 700 - Amber - 12 Volt

Revolving Beacon KL 700 - Amber - 12 Volt

1724
Revolving Beacon KL 700 - Amber - 24 Volt

Revolving Beacon KL 700 - Amber - 24 Volt

1722
Revolving Beacon KL 700 - Red - 24 Volt

Revolving Beacon KL 700 - Red - 24 Volt

1721
Revolving Beacon KL 700 - Blue - 24 Volt

Revolving Beacon KL 700 - Blue - 24 Volt

1720

Specifications

Power Consumption

12V 55W
24V 70W

Rotation

160rpm

RF Suppression

VDE 0879, Class 3, FM 5.

Bulbs to Suit

12V C1255
24V C2470

Protection

IP 5K4K (Protection against dust and water splashing with increased pressure)
IP X9K (Protection against high-pressure/steam jet cleaning)

Spare Parts

1653 Magnetic mounting kit
9.1717.01 Blue lens
9.1718.01 Red lens
9.1719.01 Amber lens (no optic lens)
9.1724.01 Amber lens
9.1723.01 Green lens
9.1717.52 Motor and Reflector 12V
9.1717.54 Motor 12V
9.1720.52 Motor and Reflector 24V
9.1720.54 Motor 24V
9.1737.91 Two drive belts
9.1717.23 Reflector base assembly

Compliance

R65/00 E2 88072

Caution

Mounting of Magnetic Base Revolving Lamps. Due to HELLA being unable to control the condition of the mounting surface or the potential forces that may occur during deceleration, fitment of warning lamps with a magnetic base cannot be recommended for use on moving vehicles.

Outline

All dimensions in mm.
All dimensions in mm.
