HELLA

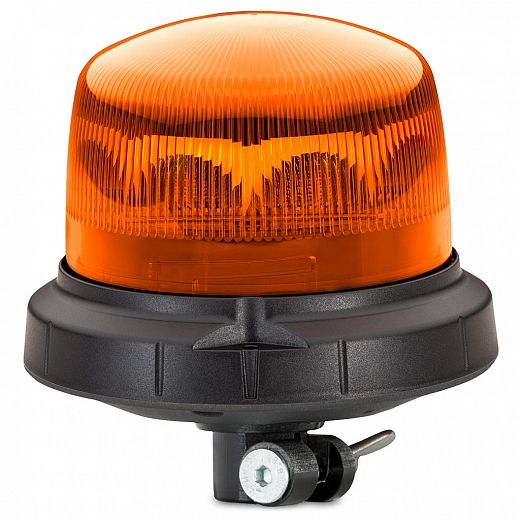

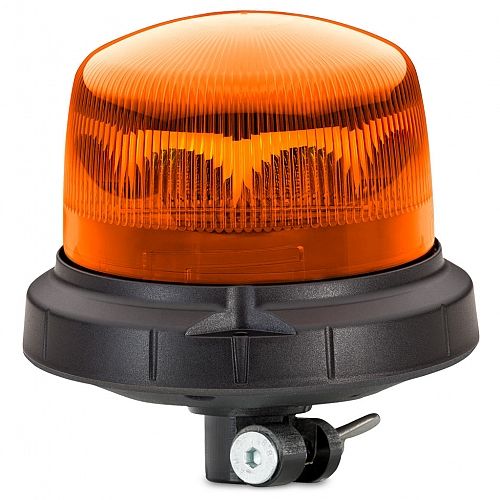

RotaLED Compact Beacon (Flashing) - Pipe Mount

RotaLED Compact flashing beacon is a complete warning solution, in a cost effective package. It offers a high level of durability and a maintenance free design.

A high performance LED beacon offering a double flash signal and 360° warning effect provides ultimate attention for any application. The impact-resistant dome and no moving parts give maximum reliability in work site conditions. The pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

• Flexible pipe mount softens impacts and minimises damage if hit
• Double-flash signal over 360° for maximum warning effect
• Advanced LED technology means no moving parts
• Low power consumption of 10W
• Impact-resistant dome

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

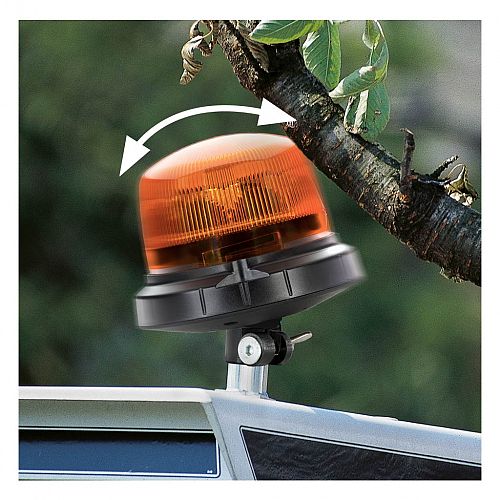

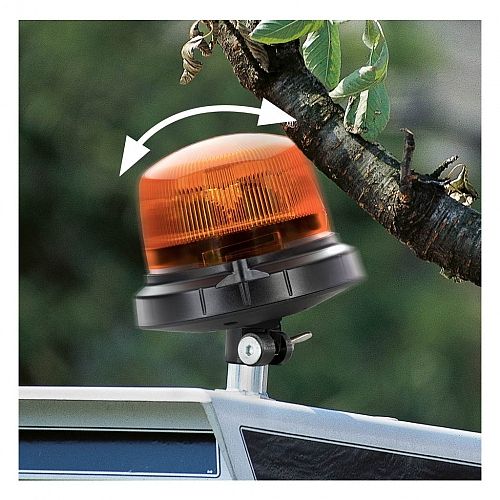

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

Flexible Version

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

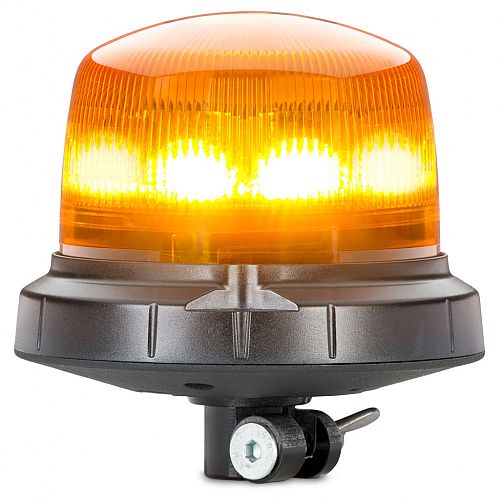

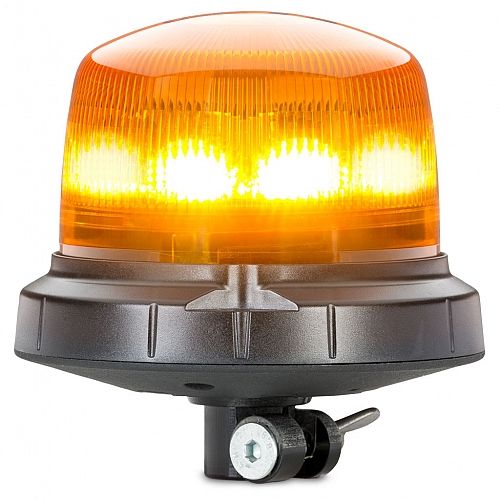

Flashing effect

Flashing

Flashing effect

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

RotaLED Compact Beacon (Flashing) - Pipe Mount

RotaLED Compact Beacon (Flashing) - Pipe Mount

PART NO: 2XD 013 979-011

Add to favourites

Specifications

Mounting

Tubular base incorporates connection plug. Must be used in conjunction with connecting piece P/N 8007, or other HELLA 2-pole beacon mounts.

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 30 volts.

Power Consumption

10W

Protection
Reverse polarity and Transient Spike Circuit protection
IP 67 (Protection against dust and temporary water immersion)
IP X9K (Protection against high-pressure cleaner, specific for road vehicles)

Flash Rate

124 +/- 10 per minute, double flash

Cable

Pre-wired with 150mm cable

Accessories
8HG 002 365-001 2 Pole beacon mount - Pipe
8HG 006 294-011 2 Pole beacon mount - Flat mount
8HG 006 294-111 2 Pole beacon mount - Flat angle mount
8HG 006 294-051 2 Pole beacon mount - Threaded mount

RF Suppression

CISPR25 Class 5

Compliance
ECE R65/00 TA1 ECE R10 SAE J845 Class 2

Outline

All dimensions in mm.
All dimensions in mm.

Top
