HELLA

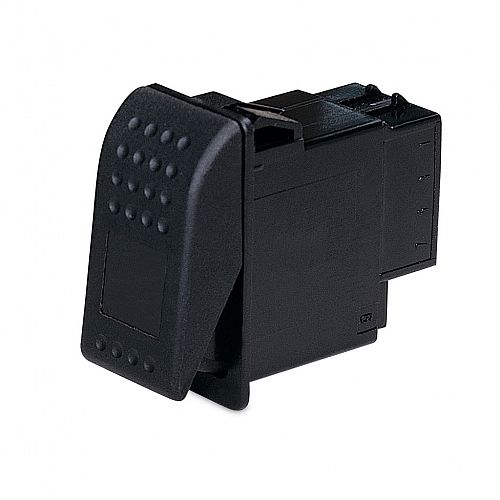

Rocker Switch On-On Change-Over - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch On-On Change-Over (Without location light, without pilot light)

Rocker Switch On-On Change-Over (Without location light, without pilot light)

6FH 007 832-051
Rocker Switch On-On Change-Over (with location light option)

Rocker Switch On-On Change-Over (with location light option)

6FH 007 832-061
Rocker Switch On-On Change-Over (with location light and pilot light options)

Rocker Switch On-On Change-Over (with location light and pilot light options)

6FH 007 832-101

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

HELLA P/N Terminals
6FH 007 832-051 3
6FH 007 832-061 5 (Including lamp)
6FH 007 832-101 8 (Including lamp)

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights. Pilot lamp illuminates when switch is in the ‘on’ position.

Outline

P/N 6FH 007 832-051 - All dimensions in mm.
P/N 6FH 007 832-051 - All dimensions in mm.

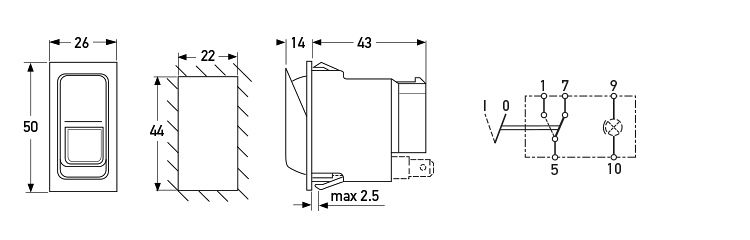

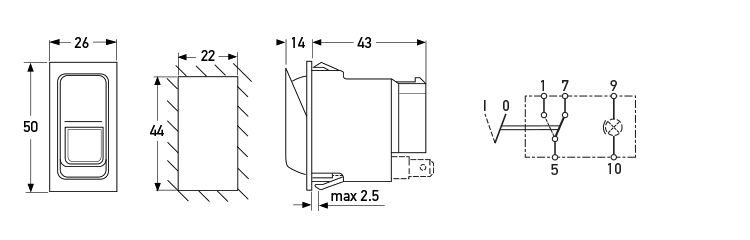

P/N 6FH 007 832-061 - All dimensions in mm.
P/N 6FH 007 832-061 - All dimensions in mm.

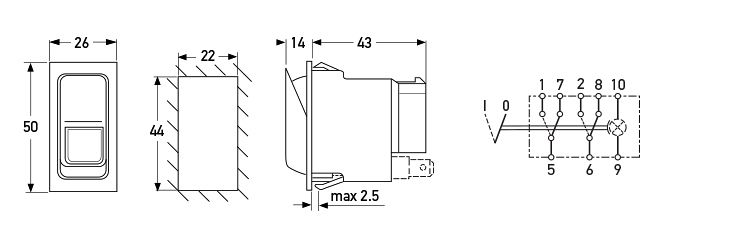

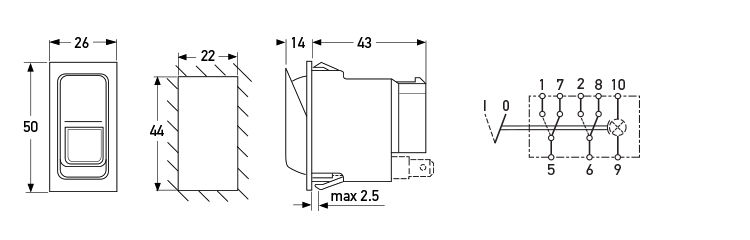

P/N 6FH 007 832-101 - All dimensions in mm.
P/N 6FH 007 832-101 - All dimensions in mm.
