HELLA

Rocker Switch Off-On Compact, Illuminated - 12 Volt Pilot

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

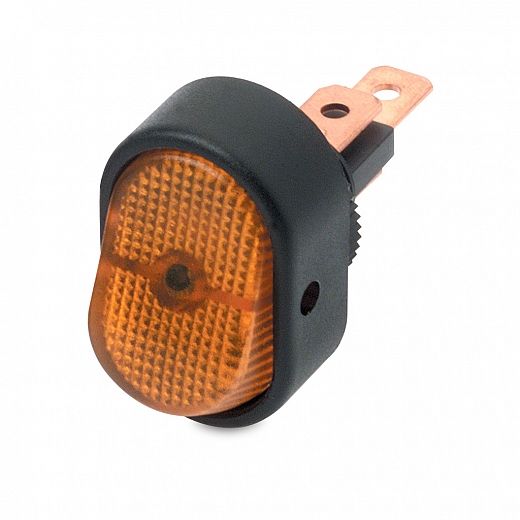

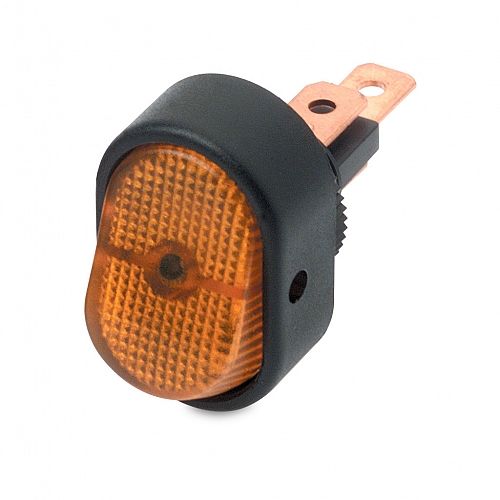

Rocker Switch Off-On, Illuminated Amber - 12 Volt

PART NO: 6EH 905 363-012
Legacy PN: 4471

Rocker Switch Off-On, Illuminated Green - 12 Volt

PART NO: 6EH 905 363-032
Legacy PN: 4473

Specifications

Mounting

12mm diameter opening.

For panels

Up to 5mm thick.

Terminals

3

Maximum Load

12V 10A

Note

Suitable for 12V only. Bulb not replaceable.

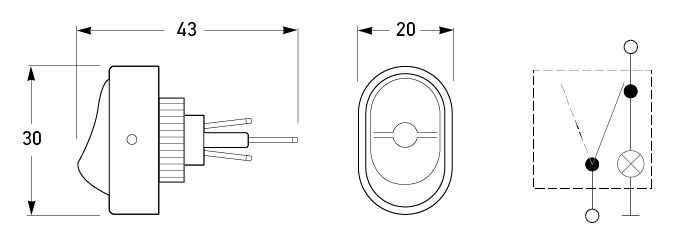

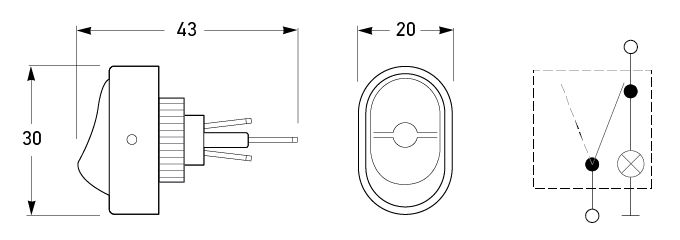

Outline

All dimensions in mm.
All dimensions in mm.

Top
