HELLA

Rocker Switch (On)-Off-(On) Momentary Spring Return - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch (On)-Off-(On) Momentary (location light option)

Rocker Switch (On)-Off-(On) Momentary (location light option)

6GM 007 832-251

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

8 (Including lamp)

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights.

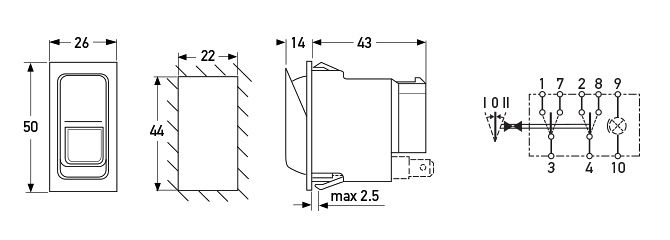

Outline

All dimensions in mm.
All dimensions in mm.
