Rocker Switch On-Off-On Change-Over - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch On-Off-On Change-Over (without location light, without pilot light)

Rocker Switch On-Off-On Change-Over (without location light, without pilot light)

6FH 007 832-161

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

6

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.

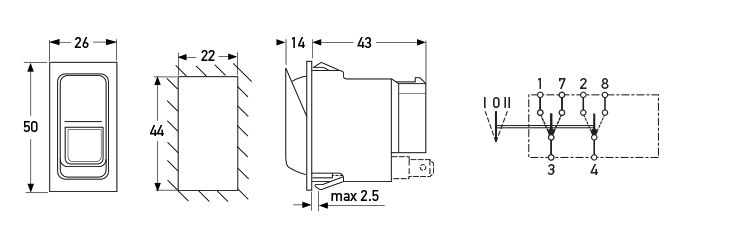

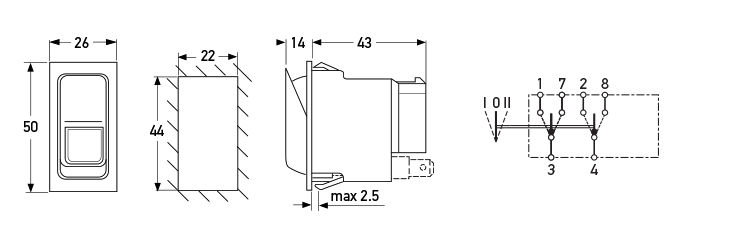

Outline

All dimensions in mm.
All dimensions in mm.
