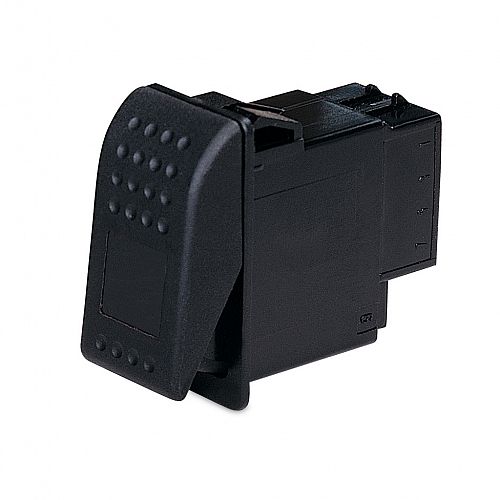

Rocker Switch Off-On-On Change-Over - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch Off-On-On (with location light and pilot light options)

PART NO: 6RH 007 832-351

Rocker Switch Off-On-On (with location light and pilot light options)

PART NO: 6RH 007 832-377

Rocker Switch Off-On-On (without location and pilot light)

PART NO: 6RH 007 832-381

Rocker Switch Off-On-On (with location light option)

PART NO: 6RH 007 832-391

Rocker Switch Off-On-On Headlamp (with location light option)

PART NO: 6RH 007 832-441

Rocker Switch Off-On-On (with location light option)

PART NO: 6RH 007 832-461

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

HELLA P/N Terminals
6RH 007 832-351 5 (Including lamp)
6RH 007 832-377 8 (Including lamp)
6RH 007 832-381 8
6RH 007 832-391 6 (Including lamp)
6RH 007 832-441 5 (Including lamp)
6RH 007 832-461 7 (Including lamp)

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights. Pilot lamp illuminates when switch is in the ‘on’ position.

Outline

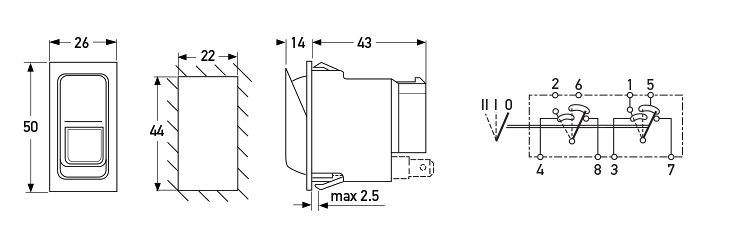

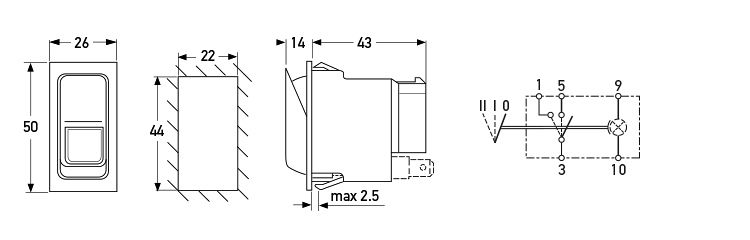

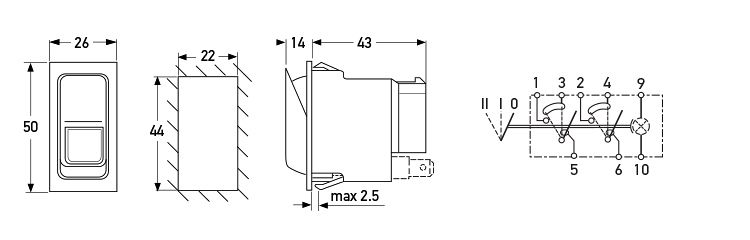

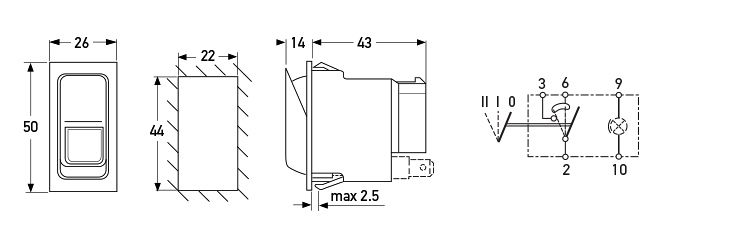

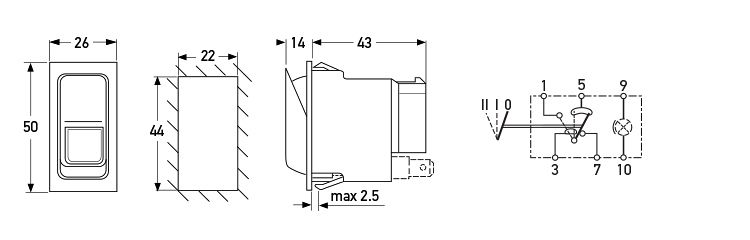

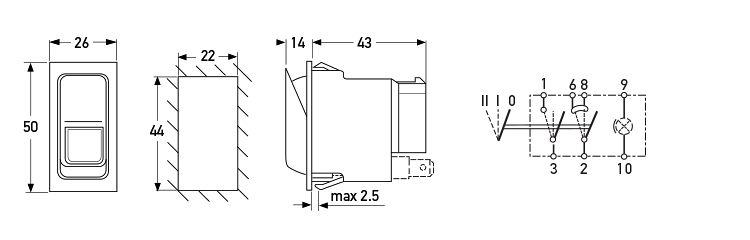

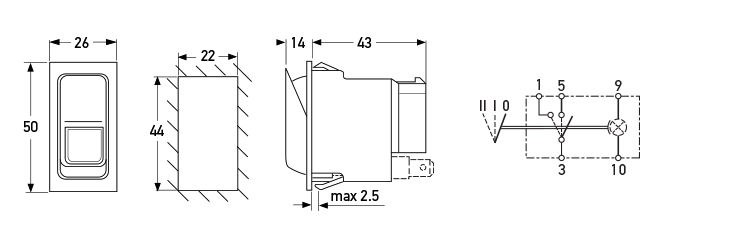

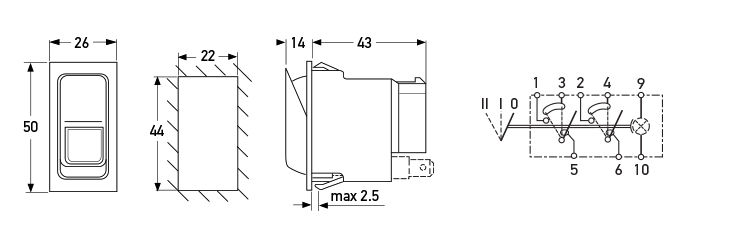

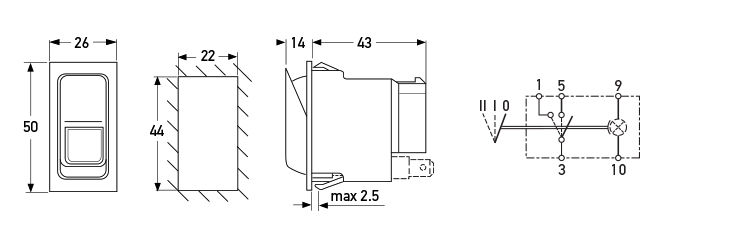

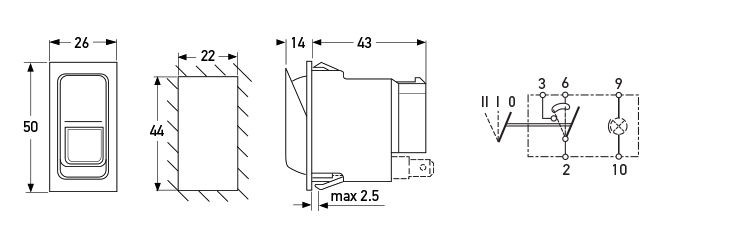

P/N 6RH 007 832-351 - All dimensions in mm.
P/N 6RH 007 832-351 - All dimensions in mm.
P/N 6RH 007 832-377 - All dimensions in mm.
P/N 6RH 007 832-377 - All dimensions in mm.
P/N 6RH 007 832-381 - All dimensions in mm.
P/N 6RH 007 832-381 - All dimensions in mm.
P/N 6RH 007 832-391 - All dimensions in mm.
P/N 6RH 007 832-391 - All dimensions in mm.
P/N 6RH 007 832-441 - All dimensions in mm.
P/N 6RH 007 832-441 - All dimensions in mm.
P/N 6RH 007 832-461 - All dimensions in mm.
P/N 6RH 007 832-461 - All dimensions in mm.
