Rocker Switch Off-(On) Momentary Spring Return - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch Off-(On) Momentary (location light option)

Rocker Switch Off-(On) Momentary (location light option)

6GM 007 832-191
Rocker Switch Off-(On) Momentary Change-over (location light option)

Rocker Switch Off-(On) Momentary Change-over (location light option)

6GM 007 832-221

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

HELLA P/N Terminals
6GM 007 832-191 4 (Including lamp)
6GM 007 832-221 6 (Including lamp)

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights.

Outline

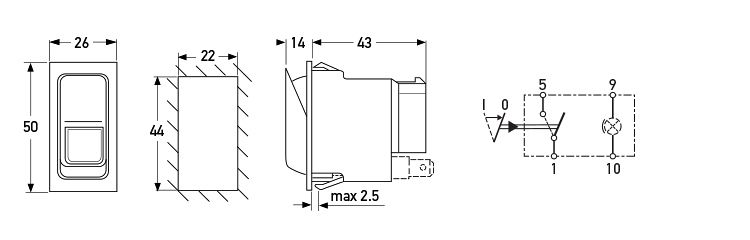

P/N 6GM 007 832-191 - All dimensions in mm.

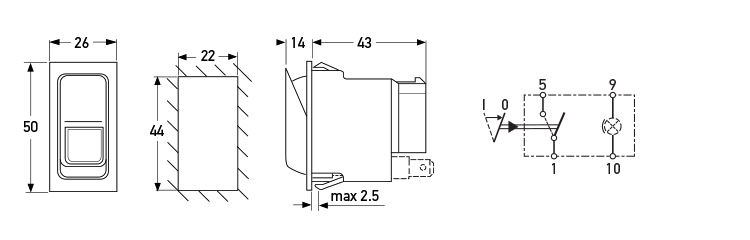

P/N 6GM 007 832-191 - All dimensions in mm.
P/N 6GM 007 832-221 - All dimensions in mm.
P/N 6GM 007 832-221 - All dimensions in mm.
