HELLA

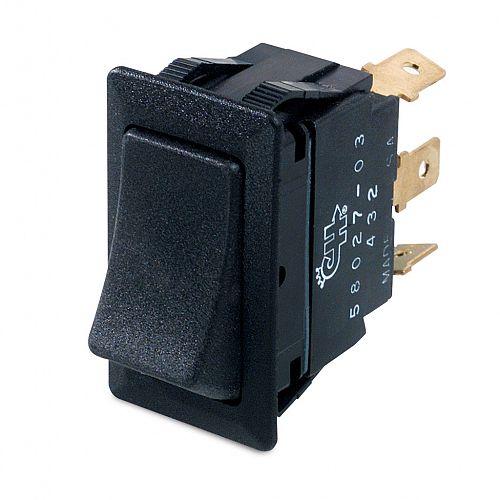

Rocker Switch (On)-Off-(On) Momentary Spring Return - Heavy Duty

Extremely robust rocker switch featuring push-on terminals and weather resistant black plastic housing. Panel push fit.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Rocker Switch (On)-Off-(On) Momentary Spring Return

PART NO: 6GH 905 364-022
Legacy PN: 4484

Specifications

Mounting

20 x 36mm opening.

For Panels

Up to 4mm thick.

Terminals

3

Maximum Load

12V 25A
24V 12.5A

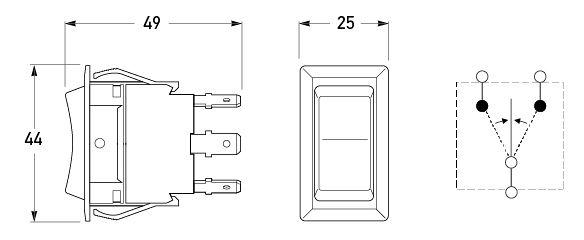

Outline

All dimensions in mm.
All dimensions in mm.

Top
