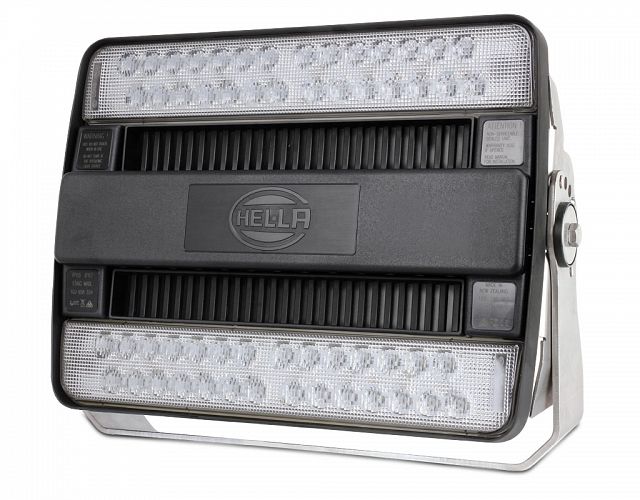

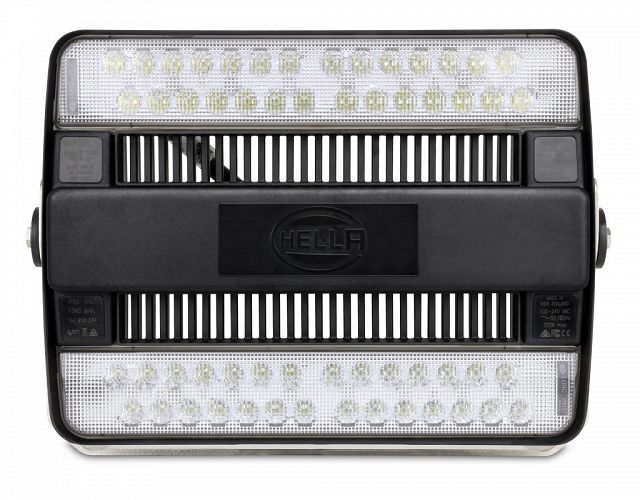

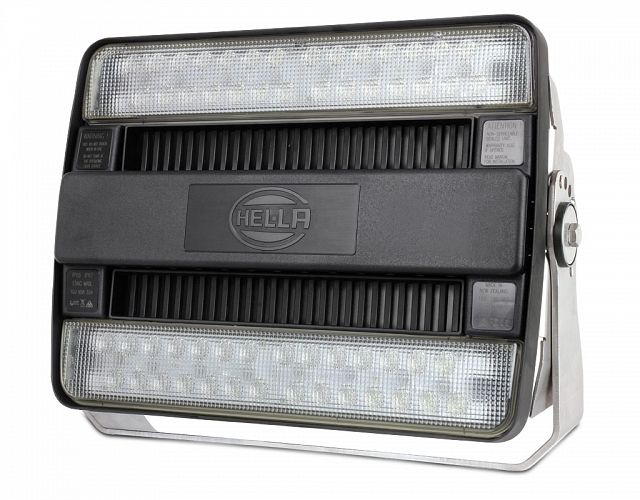

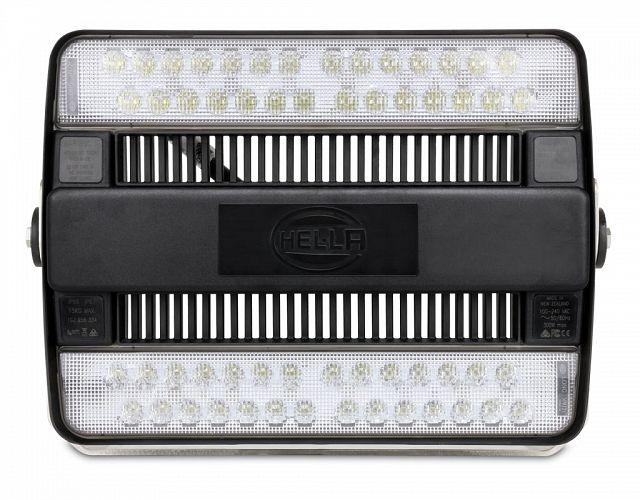

HypaLUME 110/230V AC LED Flood Light - Heavy Duty

The 110-230V AC HypaLUME has been designed for applications where high output lighting in extreme environments is required. The lamp produces a net output of 28,000 lumens at a voltage input range of 110-230V AC whilst only consuming 300W.


Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp with stands the toughest conditions. The premium aluminium housing is corrosion resistant with a non-stick and easy to clean surface coating. Heavy duty Grilamid® lens offers unbeatable toughness against impacts and vibration while providing long term UV stability and resistance to commonly used chemicals for the life of the product. The LEDs have a colour temperature of 5700K to provide a near daylight work environment that is optimal for fatigue avoidance and high alertness.

The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME is also protected from over voltage and short circuit faults. The HypaLUME is designed to operate over a temperature range from -40°C to +50°C.

To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Sturdy housing design for use under heavy duty conditions.

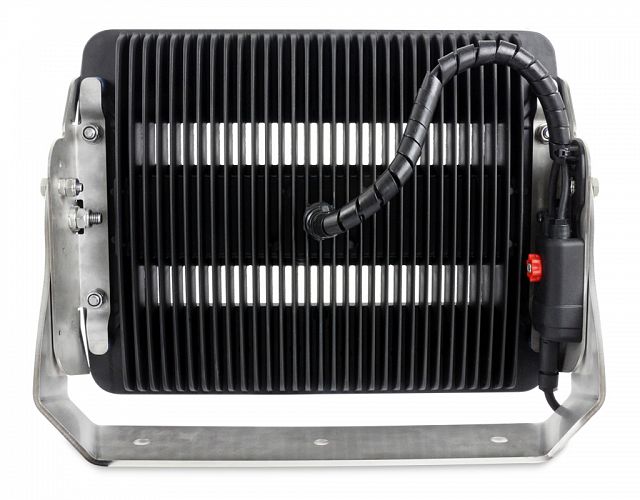

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

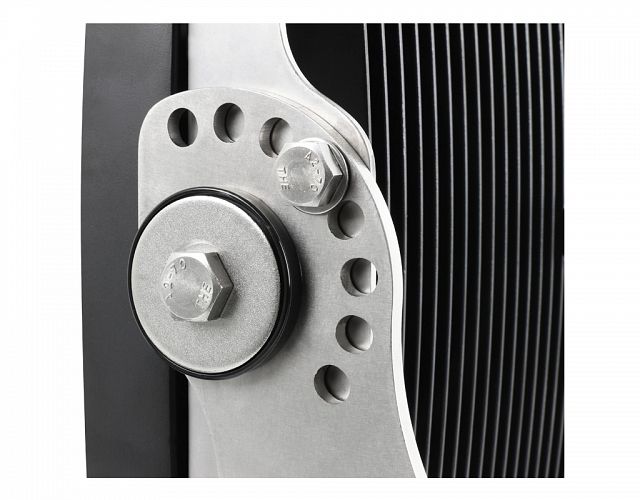

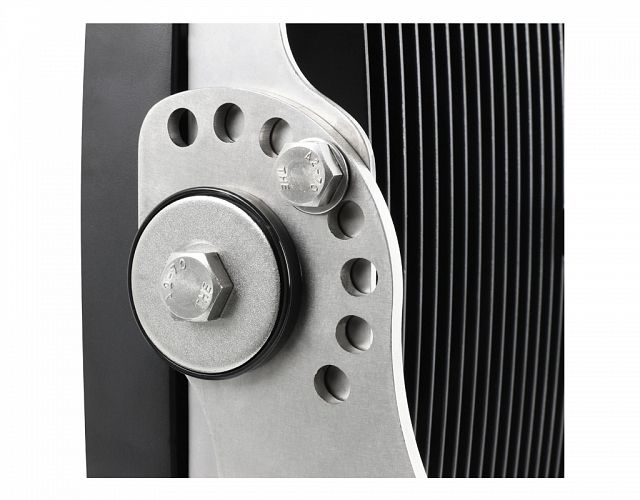

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

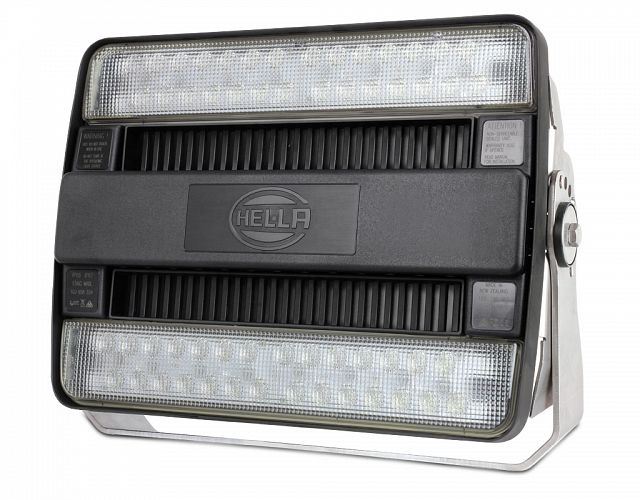

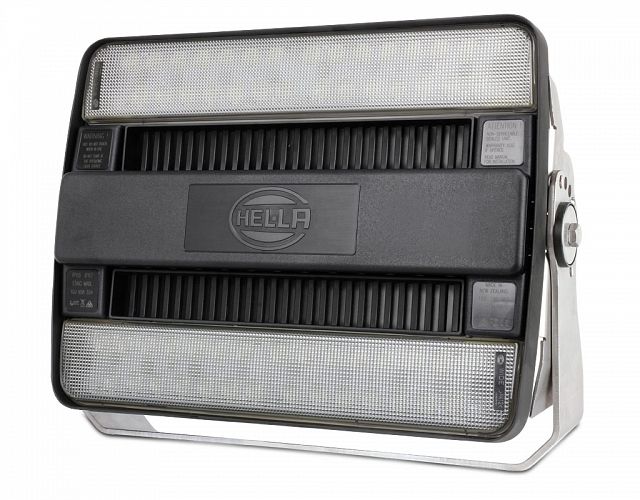

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Close Range

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Close Range

1GJ 958 334-011

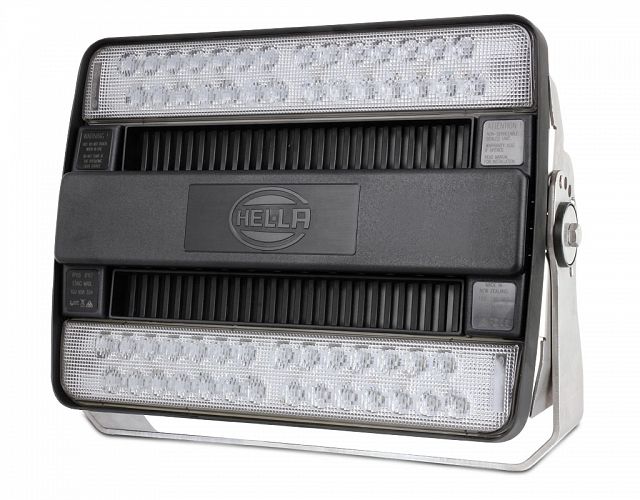

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Long Range

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Long Range

1GJ 958 334-021

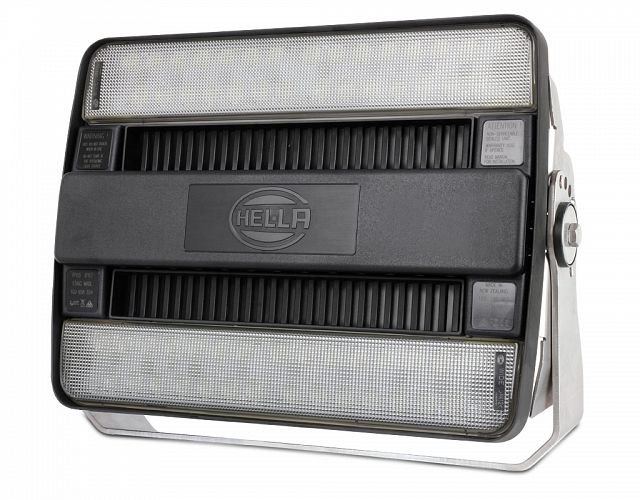

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Extra Wide

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Extra Wide

1GJ 958 334-031

Specifications

Mounting

Upright or pendant.

Voltage

Optimum brightness at input voltages from 100 to 240V AC

Power Consumption

300W max.

Actual Light Output

28,000 lumen

Operating Temperature

-40oC to +50oC

LED Colour Temperature

5700 K

Protection

IP 66 (Protection against dust and high pressure water jets)
IP 67 (Protection against dust and temporary water immersion)
Over voltage, short circuit and over temperature protection

Cable Length

Supplied with 2.0m of easy plug-in sheathed cable

Connection

Wieland RST Mini - 16A

Lens Material

High impact and chemical resistant Grilamid® lens

Compliance

CE AS/NZS 60598.2.5 CE

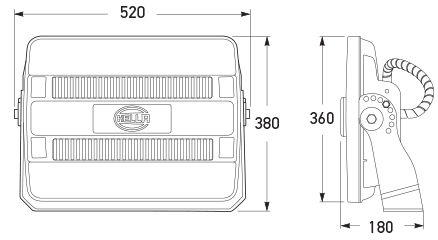

Outline

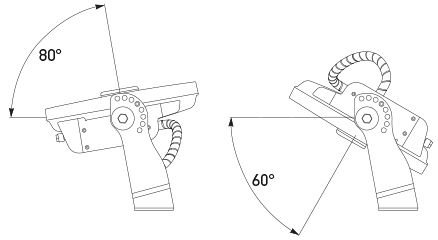

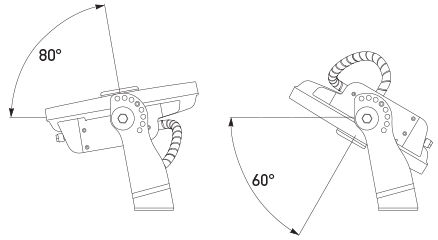

Lamp can be rotated 140°
Lamp can be rotated 140°
All dimensions in mm
All dimensions in mm

Light Output

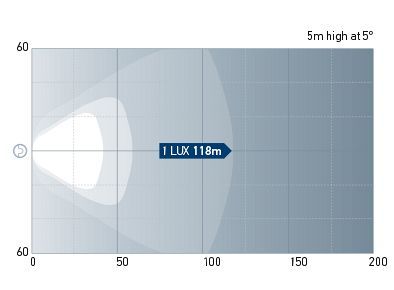

Beam pattern: 1GJ 958 334-011 - Close Range
Beam pattern: 1GJ 958 334-011 - Close Range

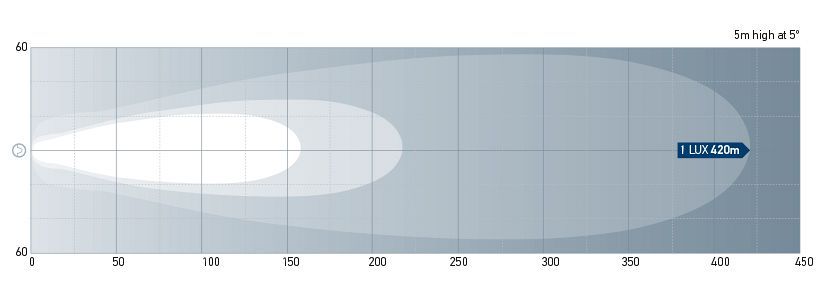

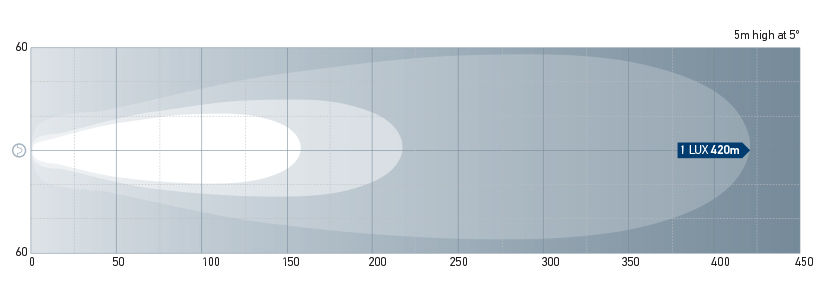

Beam pattern: 1GJ 958 334-021 - Long Range
Beam pattern: 1GJ 958 334-021 - Long Range
Beam pattern: 1GJ 958 334-031 - Extra Wide
Beam pattern: 1GJ 958 334-031 - Extra Wide
