HELLA

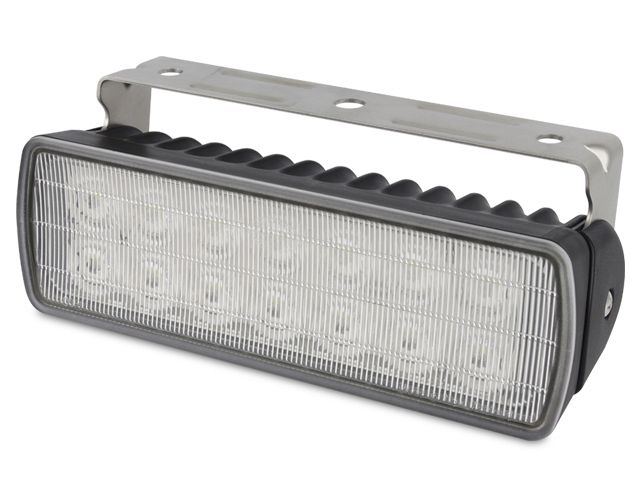

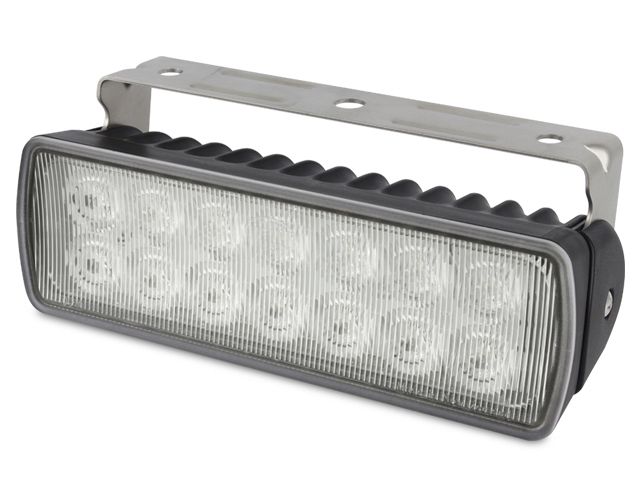

DuraLED® WL1300 LED Work Lamp

The DuraLED® WL1300 LED Work Lamp incorporates the latest technology to offer a powerful, durable lighting solution for a multitude of applications.
Featuring an integrated dual intensity light output circuit, a high level of spike protection, and energy efficient Multivolt™ technology, this work lamp will appeal to applications where energy efficiency and reliability are a must.

These lamps offer a formidable net light output of 1500 lumen.
Designed with Fit and Forget durability in mind, the WL1300 features a highly impact resistant Grilamid® lens; a crystal clear polyamide with superior tolerance to chemical and long term harsh UV exposure as well as a technologically advanced thermally conductive non-metal housing.

Equipped with a low profile stainless steel bracket this work lamp may be mounted upright or pendant and adjusted vertically up or down.

• 14 high performance LEDs.
• Luminaire Performance* 1500 lumen.
• Low power consumption of 18W.
• Dust and waterproof.

* Luminaire Performance refers to the real performance of the lamp, not the much higher theoretical performance of the LEDs, as is often used.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

DuraLED® WL1300 LED Work Lamp - Close Range - White

DuraLED® WL1300 LED Work Lamp - Close Range - White

98074032
DuraLED® WL1300 LED Work Lamp - Long Range - White

DuraLED® WL1300 LED Work Lamp - Long Range - White

98074022
DuraLED® WL1300 LED Work Lamp - Flood - White

DuraLED® WL1300 LED Work Lamp - Flood - White

98074002

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

18W
2W (Low)

Max. Light Output

1500 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable

Lens Material7

Grilamid®

Compliance

CE

CE

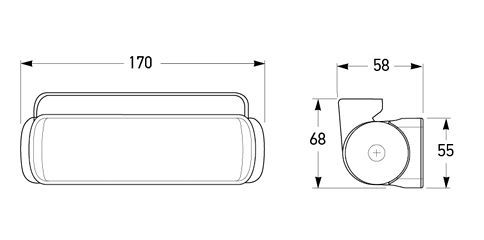

Outline

All dimensions shown in mm.
All dimensions shown in mm.

Light Output

Beam pattern: Close range
Beam pattern: Close range
Beam pattern: Long range
Beam pattern: Long range
Beam pattern: Flood. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Flood. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.

Documents

Document File Name File Size
  980740xx Instruction Sheet.pdf 477.36 KB
