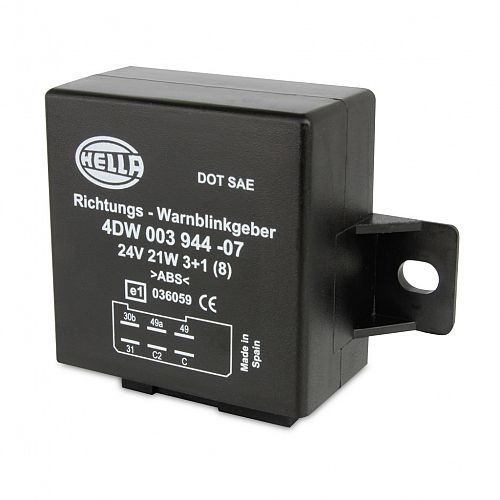

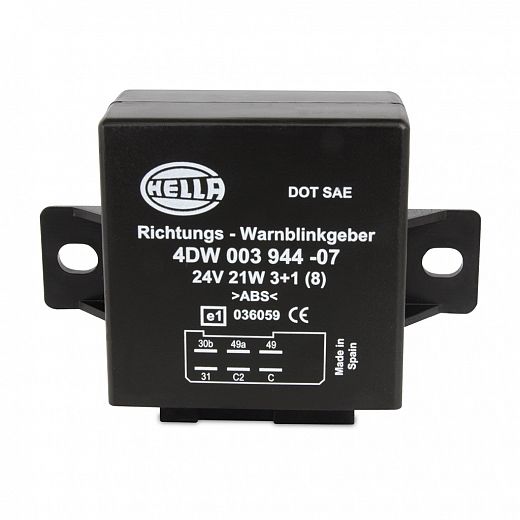

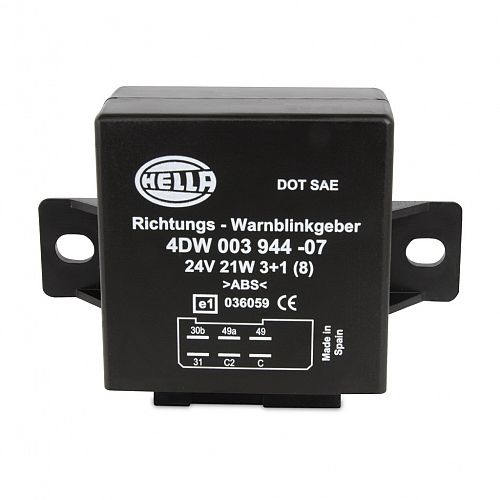

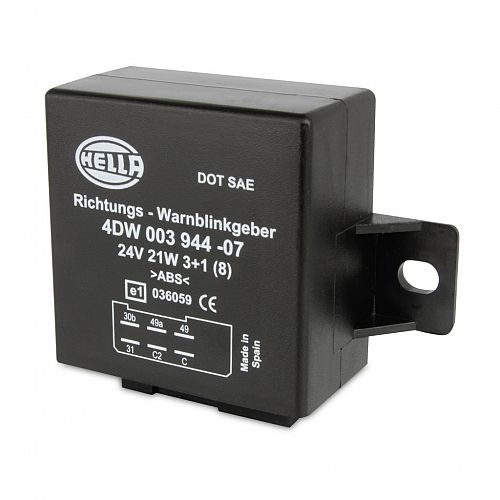

Electronic Flasher Unit - 24V - 6 Pin - 3+1

For heavy trucks with trailers. With mounting bracket. To operate 3 lamps on either side of towing vehicle, plus an additional lamp on either side of a trailer. Separate pilot lamp indicates operation of flasher lamp on the trailer. Incorporates hazard warning flasher system when used in conjunction with HELLA switch P/N 5227.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Electronic Flasher Unit - 24V 6 Pin - 3+1

Electronic Flasher Unit - 24V 6 Pin - 3+1

3032

Specifications

Maximum Load

3+1 (8) x 21W

Pin Designations

Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
30b Flasher input (+) from hazard switch
31 Earth (-)
C/C1/CP/P Vehicle pilot lamp output (+)
C2 1st trailer pilot lamp output (+)

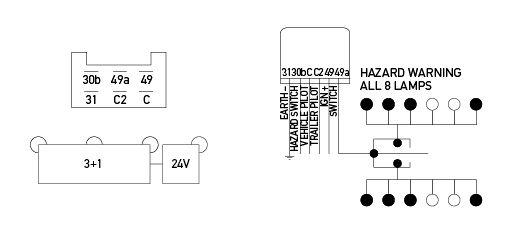

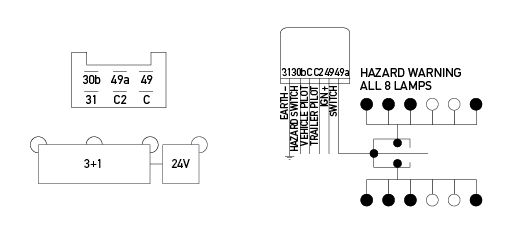

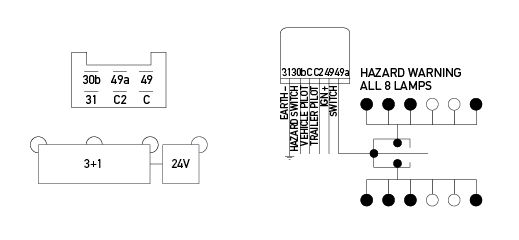

Outline

All dimensions in mm.
All dimensions in mm.

Top
