HELLA

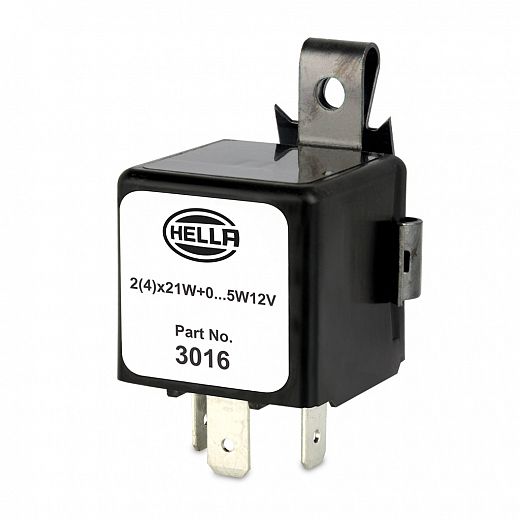

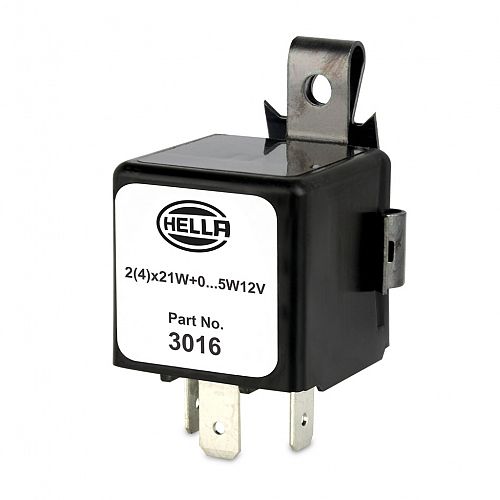

Electronic Flasher Unit - 12V - 3 Pin

To operate 2 or 3 lamps on either side of vehicle. Incorporates hazard warning flasher system when used in conjunction with HELLA switch P/N 5227.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Electronic Flasher Unit - 12V 3 Pin 42W

Electronic Flasher Unit - 12V 3 Pin 42W

3016

Specifications

Maximum Load

2(4) x 21W + 0 - 5W

Pin Designations

Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
31 Earth (-)

Outline

All dimensions in mm.
All dimensions in mm.
