HELLA

Electronic Flasher Unit - 24V - 4 Pin - High Capacity

Heavy duty flasher unit manufactured to take up to 200W loads.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

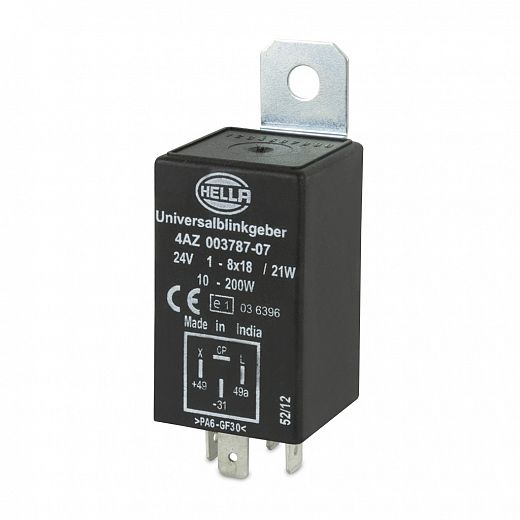

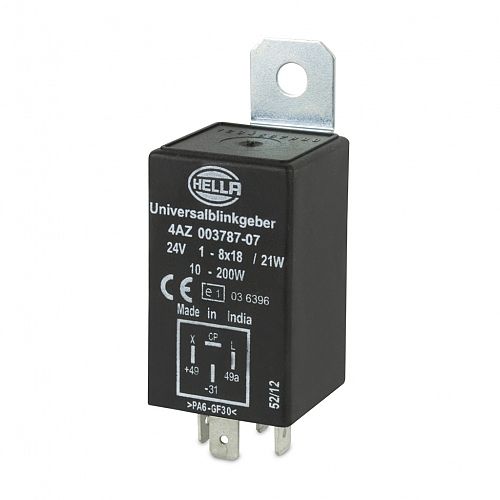

Electronic Flasher Unit - 24V 4 Pin High Capacity

Electronic Flasher Unit - 24V 4 Pin High Capacity

3015

Specifications

Maximum Load

10-200W

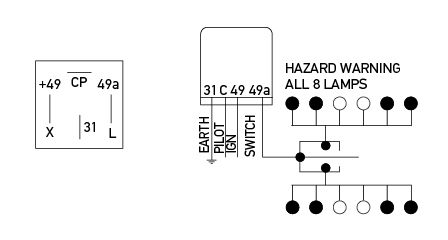

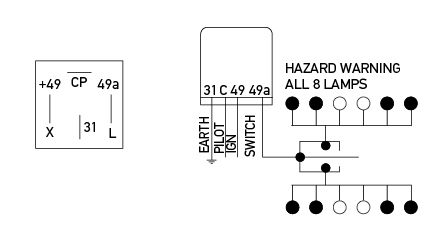

Pin Designations

Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
31 Earth (-)
C/C1/CP/P Vehicle pilot lamp output (+)

Outline

All dimensions in mm.
All dimensions in mm.
