HELLA

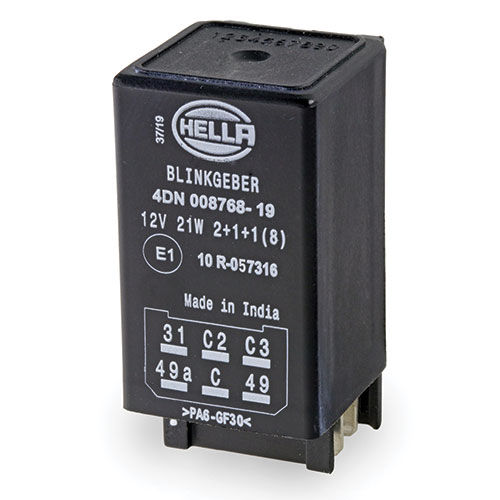

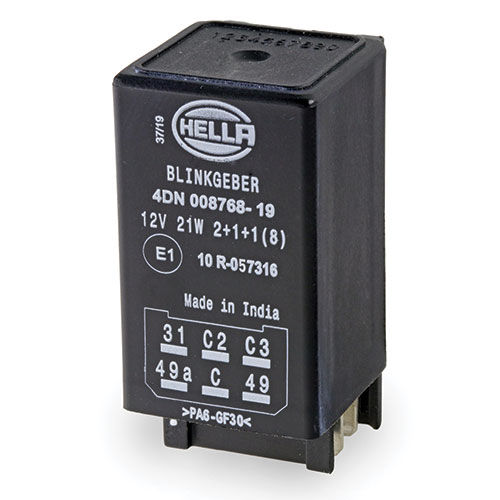

Electronic Flasher Unit - 12V - 6 Pin - 2+1+1

To operate 2 lamps on either side of a towing vehicle plus an additional lamp on either side of each of two trailers. Separate pilot lamps indicate operation of flasher lamps on the trailers.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Electronic Flasher Unit - 12V 6 Pin - 2+1+1

Electronic Flasher Unit - 12V 6 Pin - 2+1+1

3033

Specifications

Maximum Load

2+1+1 (8) x 21W

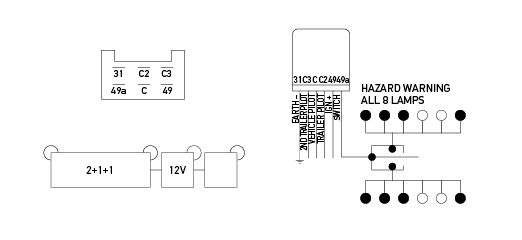

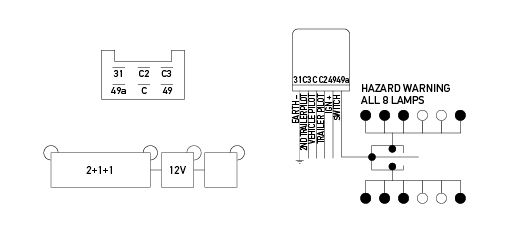

Pin Designations

Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
31 Earth (-)
C/C1/CP/P Vehicle pilot lamp output (+)
C2 1st trailer pilot lamp output (+)
C3 2nd trailer pilot lamp output (+)

Outline

All dimensions in mm.
All dimensions in mm.
