HELLA

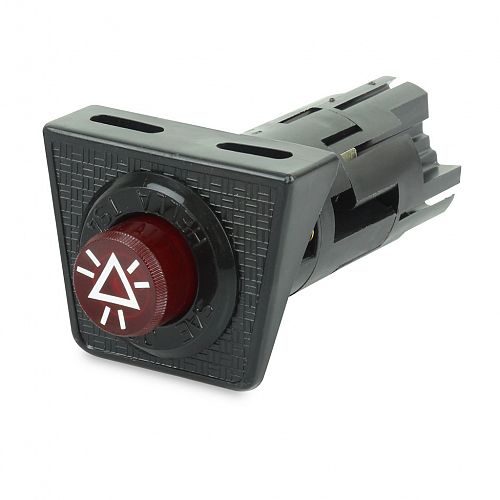

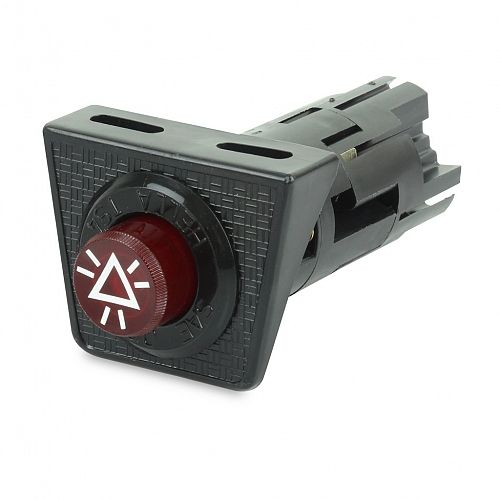

Hazard Warning Switch Off-On

For cars, trucks, buses with and without trailers. Black plastic mounting panel. Red knob with pilot lamp. Includes 8 pole multiple adaptor. Push-on 6mm terminals supplied. Wiring diagram and instructions are included.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

Hazard Warning Switch

PART NO: 6HF 001 579-081
Legacy PN: 5227

Specifications

Mounting

29mm diameter opening.

For panels

Up to 3mm

Maximum load

12V 7A

Bulbs to suit

12V J122
24V J243

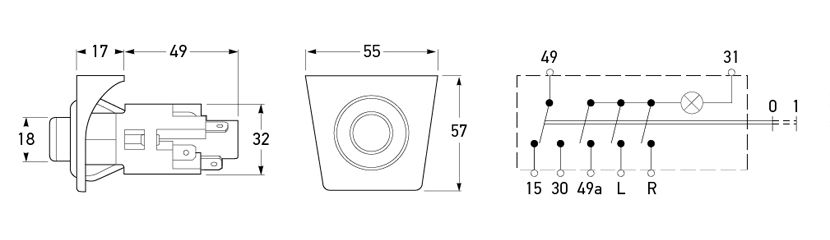

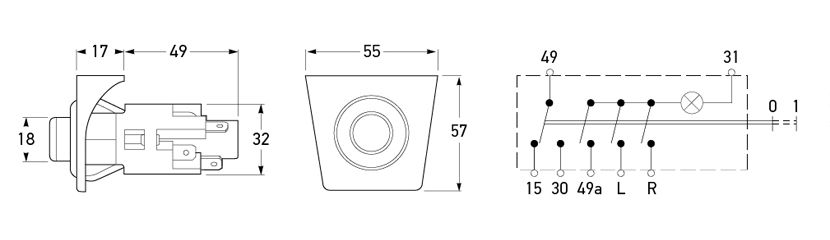

Outline

All dimensions in mm.
All dimensions in mm.

Top
