HELLA

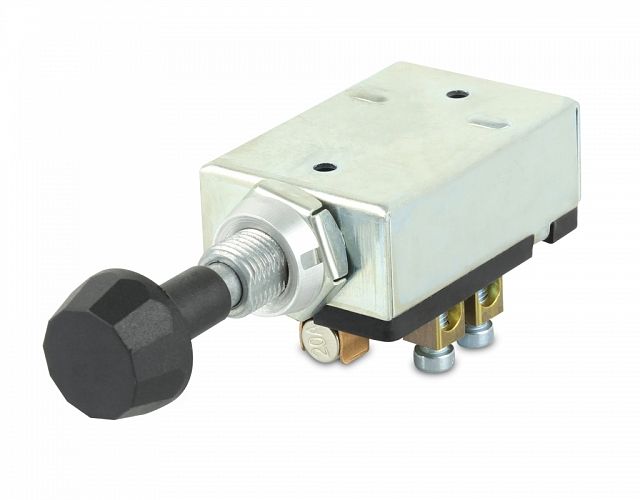

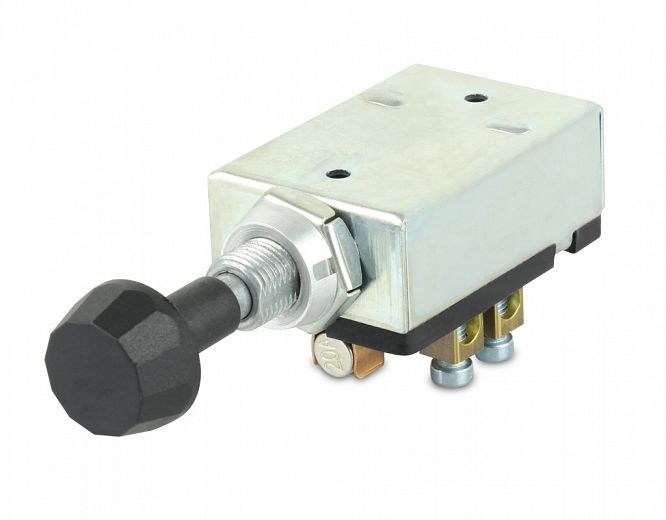

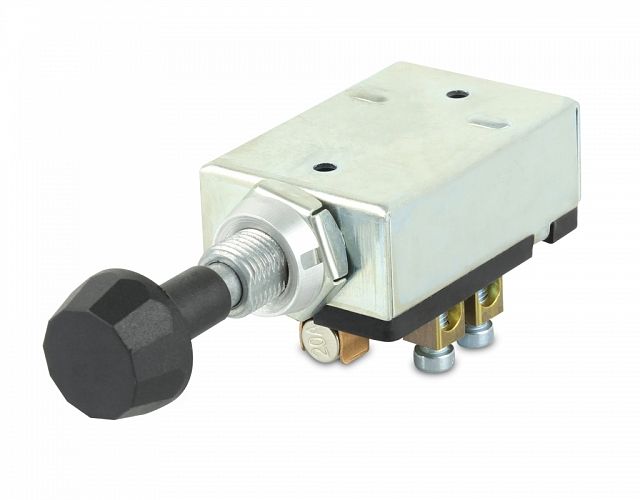

Push/Pull Switch Off-On-On Headlamp

Three position headlamp switch without pilot lamp. Features black grip and 20 amp glass fuse.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Push/Pull Switch Off-On-On Headlamp

Push/Pull Switch Off-On-On Headlamp

4055

Specifications

Mounting

11mm diameter opening.

For Panels

Up to 10mm thick.

Terminals

4

Maximum load

12V 10A
24V 5A

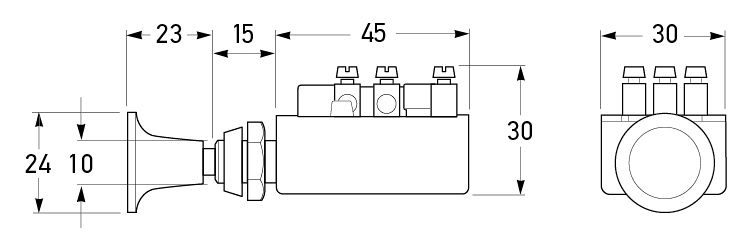

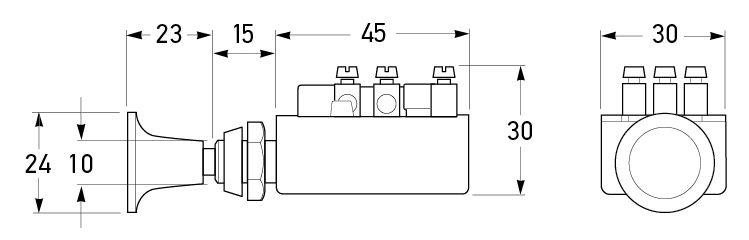

Outline

All dimensions in mm.
All dimensions in mm.

Top
