HELLA

Designline LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Triple Designline LED module pre-assembled and wired for easy installation.

Featuring a 2m wiring loom and encapsulated bolts so lamp does not have to be disassembled to mount and HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

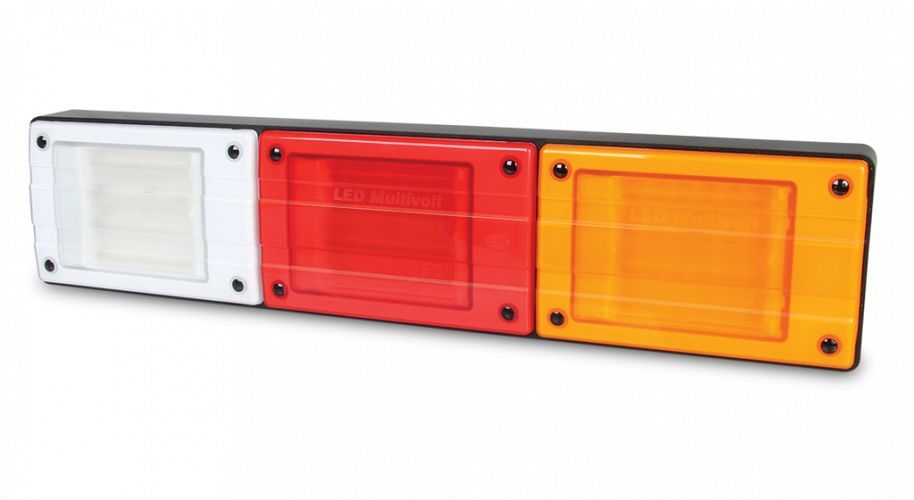

Designline LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - Horizontal Mount

PART NO: 2SK 959 041-811
Legacy PN: 2428H

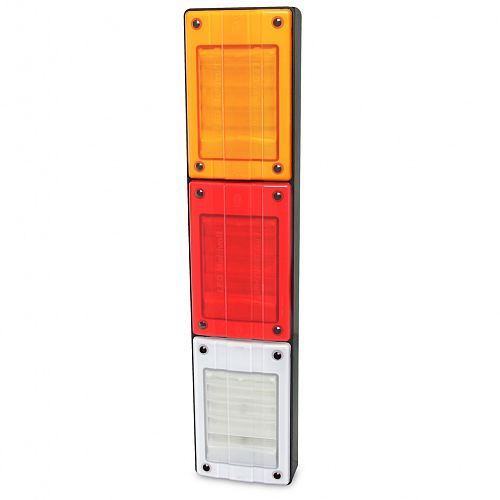

Designline LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - Vertical Mount

PART NO: 2SK 959 041-911
Legacy PN: 2428V

Specifications

Mounting

Two bolt surface mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Stop: 6W
Rear position: 2W
Rear direction indicator: 6W
Reverse: 4W

Cable Length

Pre-wired with 2m of multi-core cable.

Spare Part

9.2423.09 Triple housing

Compliance

ADR 1/00 ADR 6/00: Cat 2a ADR 49/00

Note

Reversing lamps are not designed for continuous operation.

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2SK 959 041-81_2SK 959 041-91_Instructions_2428_Designline_Module_STIR.pdf 244.54 KB
