Designline LED Module Stop/Rear Position Lamp

Designline LED Multivolt module designed to update existing bulb type Jumbo or Designline lamps. Features HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

24 LED

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

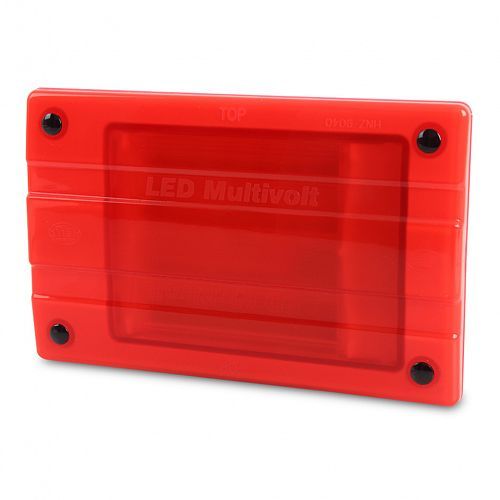

Designline LED Module Stop/Rear Position Lamp - Horizontal Mount

Designline LED Module Stop/Rear Position Lamp - Horizontal Mount

2332-H24
Designline LED Module Stop/Rear Position Lamp - Horizontal Mount - Blister pack

Designline LED Module Stop/Rear Position Lamp - Horizontal Mount - Blister pack

2332-H24BL

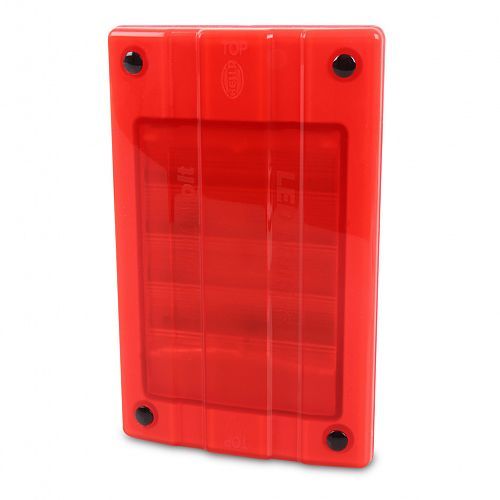

Designline LED Module Stop/Rear Position Lamp - Vertical Mount

Designline LED Module Stop/Rear Position Lamp - Vertical Mount

2332-V24

Specifications

Mounting

Four point recess mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Stop: 6W
Rear position: 2W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 49/00

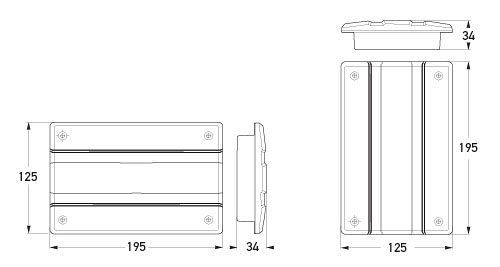

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2332-H24 2332-V24 Instruction Sheet.pdf 241.39 KB
